Digital Watchdog DWC-MHS5W37T 5MP Height Strip IP Camera

Digital Watchdog DWC-MHS5W37T 5MP Height Strip IP Camera

Overview

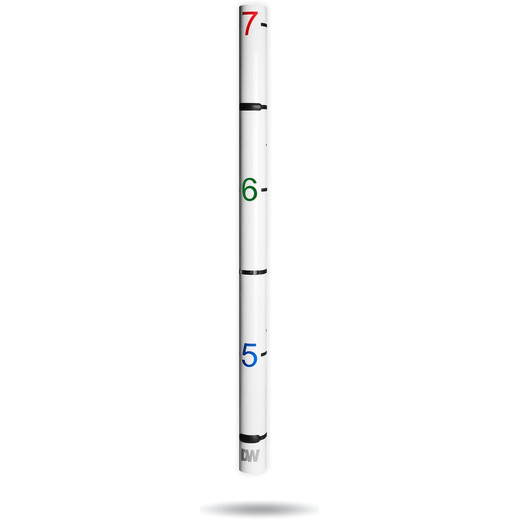

The DWC-MHS5W37T is a purpose-built 5MP IP camera optimized for doorway and entry-point monitoring where facial detail and height estimation drive investigation outcomes. Unlike standard wide-angle turrets or domes, this unit's height-strip form factor mounts vertically into or beside standard door frames, capturing a portrait-oriented image that prioritizes face and shoulders. If your deployment requires matching suspect height to physical description or building a credible facial database from entry events, this geometry matters — it eliminates wasted pixels on ceiling/floor and concentrates resolution where you need it.

Built on the Digital Watchdog surveillance line, the DWC-MHS5W37T integrates with DW Spectrum IPVMS and any ONVIF-compliant management system, so integration friction is minimal if you're already standardized on a compatible platform.

Key Features & Specifications

• 5MP (2592 × 1944) Resolution at 30fps: Delivers 30 frames per second in full resolution, providing continuous detail capture without frame-rate penalties — critical when you need to review every person crossing a threshold without missing motion or expression changes.
• 3.7mm Fixed Lens, 87.6° Horizontal FOV: Optimized for entry-corridor geometry; the wide angle captures full doorway width without requiring a pan-tilt head, while the fixed focal length eliminates focus drift in fast-changing lighting (common at exterior doors).
• Star-Light Plus™ Low-Light Performance: Delivers colored video in near-total darkness where conventional 5MP sensors would fall back to monochrome or noise-filled grayscale. Matters significantly on overnight shifts or poorly lit loading docks — you retain facial color (skin tone, hair, clothing) which aids quick identification and lineup credibility.
• True WDR (Wide Dynamic Range): Handles simultaneous bright exterior sunlight and shadowed interior doorways without crushing detail in either zone. Prevents face-in-shadow or washed-out outdoor scenes that plague single-exposure systems.
• PoE Power (802.3af): Draws under 13W via standard PoE, eliminating the need for a separate 12V power run or external injector. On large multi-door deployments, this consolidates your power and cabling overhead.
• IP66 Environmental Rating: Direct water spray and dust won't disable the unit, so roofed loading docks, warehouse entry vestibules, and rain-exposed exterior doors are safe to deploy — though full submersion (IP67+) is not supported; if you need underwater or washdown hose scenarios, specify a higher-rated model.
• Intelligent Video Analytics (IVA+): On-camera analytics reduce false alerts by filtering irrelevant motion (shadows, rain, HVAC air) before the stream reaches your NVR, conserving disk I/O and simplifying rule setup in your VMS.
• Height Strip Form Factor: Vertically oriented capture plane—roughly 8–10 inches wide and 24+ inches tall—integrates into doorframes without aesthetic intrusion. Mounting hardware supports standard wall and frame anchors.
• Two-Way Audio: Built-in microphone and speaker enable remote communication from the VMS (intercom mode), useful for door access challenge scenarios or facility announcements at entry points.
• Privacy Masking & Smart DNR™: Mask vendor logos or background detail without losing facial region, and dynamic noise reduction prevents visible graininess in low-light color capture.

Integration & Compatibility

The DWC-MHS5W37T is ONVIF-conformant, ensuring support in Milestone Xprotect, Genetec Security Center, Hanwha Wisenet, Uniview, and other major VMS platforms. Verify exact codec and feature support (analytics export, audio passthrough, privacy masking API) against your chosen platform's ONVIF profile. Direct integration with DW Spectrum IPVMS includes vendor-specific optimizations; other platforms may require standard ONVIF profile S or T support for basic video and metadata.

What's in the Box

• Digital Watchdog DWC-MHS5W37T Camera
• Mounting Hardware
• Installation Guide
• Software CD-ROM
• Compliance and Warranty Documentation

When to Choose a Different Model

If your entry point requires wider vertical coverage (floor-to-ceiling capture of packages or vehicle license plates), a standard bullet or turret with 4:3 or 16:9 aspect ratio will deliver that range. If you need zoom capability to identify subjects at distance, consider a varifocal variant in the same family. For interior hallways without moisture or direct sunlight, an indoor-only model will reduce cost; the IP66 rating is wasted indoors.

Frequently Asked Questions

Q: Does the DWC-MHS5W37T support facial recognition algorithms natively?

A: The camera itself does not perform facial recognition; it delivers high-detail video suitable for recognition software running on your VMS or third-party analytics engine. The 5MP resolution and low-light color performance provide the input quality needed, but the recognition logic resides outside the camera.

Q: What compression formats does the DWC-MHS5W37T support?

A: Evidence indicates support for standard IP video codecs via ONVIF (typically H.265 and H.264). Confirm exact codec list with the datasheet or your VMS platform, as available codecs may vary by firmware version.

Q: Can I mount the DWC-MHS5W37T horizontally (landscape)?

A: The unit is engineered for vertical (portrait) mounting to maximize facial and height detail. Horizontal mounting will deliver a narrow horizontal strip and defeat the height-estimation purpose. Standard mounting hardware supports portrait orientation on walls, frames, and posts.

Q: Is the DWC-MHS5W37T compatible with Milestone XProtect or Genetec?

A: Yes. The camera is ONVIF-conformant and will integrate with ONVIF-supporting VMS platforms. However, verify that your specific VMS version supports the camera's profile level and that any analytics or two-way audio features are compatible with your deployment before purchase.

Q: Does the camera require a separate power supply?

A: No. The DWC-MHS5W37T draws power via standard PoE (802.3af), eliminating the need for a separate 12VDC injector or power adapter. Any managed PoE switch or injector supporting 802.3af will suffice, though an unmanaged switch will not deliver power.

Q: What warranty does Digital Watchdog provide?

A: The DWC-MHS5W37T includes a five-year manufacturer warranty covering defects in materials and workmanship. Confirm warranty terms and support availability in your region or with your specialty distributor.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DWC-MHS5W37T fills a specific niche: entry-point surveillance where facial and stature detail outweigh wide-area coverage. Unlike general-purpose 5MP domes, its portrait-oriented form factor and 87.6° horizontal field of view concentrate pixels on the zone where identity happens. If you're deploying for retail loss prevention, bank or financial-services access control, or warehouse personnel tracking, the geometry pays dividends in investigation speed and lineup accuracy.

Technical Highlights:

• Star-Light Plus™ Low-Light Coloration: Maintains RGB color detail in sub-1-lux environments where standard 5MP sensors shift to noisy monochrome. Facial feature recognition (scars, tattoos, complexion) is preserved even on overnight monitoring—a material advantage over grayscale fallback in offline investigations.
• True WDR + 3.7mm Fixed Lens: Eliminates focus servo noise and drift; the fixed focal length is stable across wide temperature swings common at exterior/vestibule doors. WDR handles the backlit doorway scenario (bright sun behind subject, dark interior reference) without sacrificing either zone.
• PoE 802.3af, Sub-13W Draw: A multi-door entry system (say, six DWC-MHS5W37T units per building) will consume under 78W total, easily powered from a single 90W PoE injector or budget-friendly switch. No auxiliary power distribution required—simplifies rough-in on renovation projects.
• IVA+ On-Camera Analytics: Filters weather motion, shadow flutter, and HVAC cross-draft before stream egress, reducing redundant NVR storage and rule-tuning overhead. Particularly effective at exterior doors where weather noise is chronic.

Deployment Considerations:

• Height-strip geometry is non-negotiable—it will not work as a general exit-corridor or floor-plan camera. Confirm mounting location will capture faces, not knees or doorframe edges.
• PoE budget: Ensure your switch or injector provides at least 95W total for a standard enterprise 802.3af deployment (camera + margin for voltage drop over cable run). Long runs (150+ feet) may require active PoE+ injection.
• Integration risk: Verify ONVIF profile compliance with your VMS before order. Analytics export, privacy masking API, and two-way audio passthrough are standard ONVIF features, but some platforms have uneven support. Test in a lab build if you rely on these downstream.

The DWC-MHS5W37T is purpose-built for facilities where entry identity verification and post-event investigation speed matter more than wall-to-wall floor coverage. Retail security offices, financial-services lobbies, and secure warehouse access points see the highest ROI. Avoid deploying at general hallway or outdoor perimeter zones where wide horizontal sweep is the priority.
