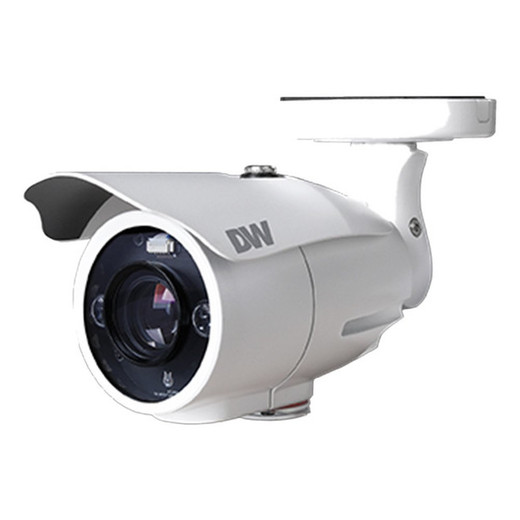

Digital Watchdog DWC-LPR650UW 2MP License Plate Recognition IR Camera
Overview
The DWC-LPR650UW is a specialized 2MP license plate recognition camera designed for fixed outdoor LPR deployments where vehicle identification at entry points, parking facilities, or perimeter access is the primary objective. Unlike general-purpose surveillance cameras, this unit combines a long-range vari-focal lens (6–50mm) with dedicated Smart IR illumination and digital noise reduction optimized for capturing reflective license plate detail at distances up to 50 mph within a 13' to 30' capture range. It operates over standard coaxial cabling (HD over Coax) with external OSD control, making it a retrofit option for analog-era surveillance infrastructure, or it can integrate into hybrid systems. The camera is IP66-rated for outdoor deployment and Digital Watchdog surveillance products are known for law enforcement and access control markets.
Key Features
- 2.1MP 1/3" CMOS Sensor (1080p resolution): Sufficient clarity for readable license plate capture in the 13' to 30' range. At extended distances, this resolution is acceptable for LPR; general-purpose 5MP+ cameras are overkill for plate work and waste storage.
- Vari-focal 6–50mm Motorized Lens: Adjustable focal length lets you dial in the exact field of view needed for your specific entry point geometry — critical for LPR where framing directly affects plate legibility. A 6mm wide view covers a busy entrance; 50mm narrow view captures individual vehicles on a single highway lane.
- Smart IR with 115 ft Range: Infrared illumination reaches 115 feet, ensuring night-time license plate reflection even in completely dark conditions. Smart IR automatically scales intensity to prevent overexposure on nearby vehicles while maintaining illumination at distance — avoids washed-out washout plates captured with fixed-power IR.
- Smart DNR (Digital Noise Reduction): Reduces image grain in low-light scenarios without aggressive blur. Plate characters remain sharp and OCR-ready even when ambient light is minimal.
- Universal HD over Coax (UTC) & OSD Control: Operates on standard RG-59/RG-6 coaxial cable and existing balun infrastructure. External OSD (On-Screen Display) panel allows field adjustment of lens zoom, focus, and camera settings without pulling the camera down — practical for fine-tuning after installation.
- Advanced Image Processing — Privacy Zones, Auto Gain Control, Backlight Compensation, Dynamic Range Compressor: Privacy zones mask sensitive areas (building entrances, residential windows). Auto gain prevents underexposure in variable light. Backlight compensation handles scenarios where vehicles approach a bright background (dawn/dusk). Dynamic range compressor balances bright headlights against dark license plate surfaces in a single frame.
- IP66 Weatherproof Rating: Direct rain and dust ingress will not compromise operation. IP66 does not mean submersion-safe — skip this camera if your mount location is subject to flood or standing water (IP67 would be required). Suitable for canopy-mounted or pole-mounted entry gates, perimeter fencing, parking structure approaches.
- UL Listed, NDAA Compliant: Passes UL safety certification. NDAA Section 889 compliance means approved for federal procurement and sensitive applications.
- Compact Form Factor (9.4" × 3.8"): Fits standard bullet camera mounting brackets and housings. Low profile is discreet and easy to aim.
Integration & Compatibility
The DWC-LPR650UW is a hybrid camera — it transmits analog HD video over coax and includes coaxial OSD control. Integrates directly with analog DVRs or balun-equipped IP networks. UTC (coaxial control) simplifies field commissioning without network configuration. If you are deploying network video recorders or pure IP surveillance, confirm your system supports analog-to-IP conversion or validate whether a newer IP-native LPR camera is a better long-term fit.
Power & Installation
Operates on AC 24V or 12VDC (separate power supply required — not PoE). Current draw is 237.5 mA at AC 24V or 510 mA at 12VDC, both minimal. Power supply and cabling are industry-standard; no exotic components.
Frequently Asked Questions
Q: What is the capture range for readable license plates?
A: The DWC-LPR650UW is specified to capture reflective license plates traveling at speeds up to 50 mph within a 13' to 30' range. Optimal performance is within 25–30 feet. Beyond 30 feet, character legibility degrades; within 13 feet, the vari-focal lens can frame the entire plate.
Q: Does the DWC-LPR650UW support IP-native PoE power, or does it require a separate power supply?
A: The DWC-LPR650UW operates on AC 24V or 12VDC from a dedicated power supply. It is not PoE-powered. Plan for separate 12/24VDC supply and standard coaxial cabling in your installation.
Q: Can I use this camera with modern IP-based VMS systems?
A: The DWC-LPR650UW is an analog HD-over-coax camera. Integration with IP VMS requires an analog-to-IP gateway or encoder. If your infrastructure is purely IP-based, consider a newer IP-native LPR variant in the Digital Watchdog line.
Q: Is the DWC-LPR650UW NDAA Section 889 compliant?
A: Yes, the camera is NDAA compliant, making it eligible for federal and sensitive-use procurement.
Q: What is the infrared range, and will it illuminate license plates at night?
A: The Smart IR illumination reaches 115 feet. At distances under 30 feet (the optimal LPR capture range), IR will fully illuminate reflective plates in complete darkness. Automatic intensity scaling prevents overexposure on nearby vehicles.
Q: Can the lens be adjusted after installation?
A: Yes. The external OSD panel allows field adjustment of zoom and focus via the connected coaxial control line — no need to remove the camera to fine-tune framing.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The DWC-LPR650UW is a purpose-built analog LPR platform — not a general-purpose surveillance camera bolted into an LPR role. The 2.1MP sensor paired with the 6–50mm vari-focal lens is deliberate: it trades wide panoramic coverage for concentrated plate-capture geometry. Smart IR reaching 115 feet and Smart DNR working in concert mean the camera stays functional through the full 24-hour cycle without operator intervention, which is critical for unmanned entry gates and perimeter monitoring.
Technical Highlights:
- 2.1MP 1/3" CMOS @ 1080p + 115ft Smart IR: The resolution is fit-for-purpose — enough density for readable OCR within the 13–30 foot optimal range, and the 115-foot IR reach covers dark approaches and covered parking without lighting infrastructure. Smart IR modulation prevents blown-out headlights on close approaches, a common failure mode in fixed-output IR designs.
- 6–50mm Vari-focal with Field OSD Control: The zoom range is wide enough to handle variable site geometries (wide entrance gate, narrow highway lane). Field adjustment via coaxial OSD means you tune the lens after mounting without removing the camera — a time-saver on retrofit jobs where site access is limited.
- Analog HD over Coax + UTC Control: Uses existing RG-59/RG-6 runs; no network infrastructure needed. OSD control happens on the same wire as video — one cable to the DVR or balun. This is a strength in analog-legacy shops; a liability if you're migrating to IP.
- IP66 + NDAA Compliance: Rainwater and dust won't compromise the unit, and NDAA clearance is mandatory for federal, state, and sensitive-site work. UL listing confirms safety engineering.
Deployment Considerations:
- Analog Architecture: The DWC-LPR650UW (often searched as DWC LPR650UW) is a hybrid analog camera in a world increasingly moving to IP. If your backend is DVR-based or hybrid, this is a solid fit. If you are a pure IP shop, this camera will require an analog-to-IP gateway — confirm you have that in your budget and architecture.
- 13–30 Foot Sweet Spot: Don't install this expecting readable plates at 50 feet in low light. The camera is optimized for moderate distance; site geometry and ambient light are deal-breakers. Test the vari-focal range on-site before permanent installation.
- Power Supply Required: No PoE means a dedicated AC 24V or 12VDC supply. Larger deployments across multiple gates add up: budget for supply redundancy and wiring.
- Coaxial OSD Adjustment: Field tuning requires a coax-compatible OSD controller. Some modern systems don't include this tool; confirm your DVR or encoder supports UTC before commissioning.
Deploy the DWC-LPR650UW at fixed entry gates, parking facility approaches, or perimeter access points where vehicle identification is the primary security function and analog infrastructure is already in place. This is not a general-purpose outdoor camera — it is a specialized tool for law enforcement, parking enforcement, or toll/access control deployments. If your site already has HD over Coax deployed (commercial parking, gated facility, government access control), this camera minimizes retrofit cost and integrates directly into your existing DVR infrastructure.
Key Specifications:
Field of View: 45.3° ~ 5.7°
Color: White
