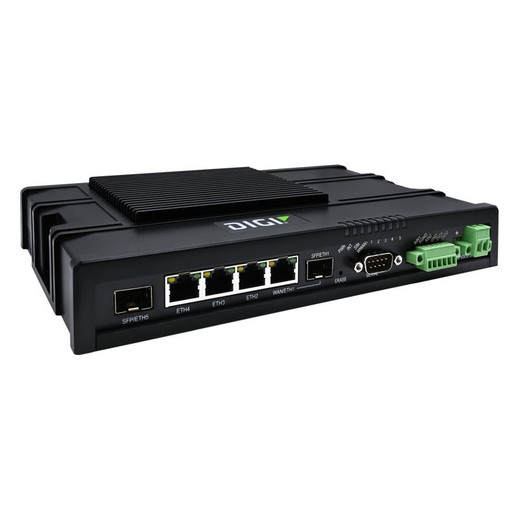

Digi International IX40-05 5G Industrial Cellular Router
The Digi International IX40-05 is a 5G industrial cellular router engineered for remote site connectivity, cellular backup, and edge computing in harsh field environments. Purpose-built for integrators deploying surveillance, access control, and IoT infrastructure across distributed locations without fiber or fixed-line access, the IX40-05 combines multi-network 5G support with industrial-grade power efficiency and thermal resilience. With an operating temperature range of −45 °C to 85 °C and a compact 234 mm × 154 mm × 41 mm footprint, this router addresses the connectivity and compute demands of unattended perimeter sites, remote branch offices, and temporary surveillance deployments where environmental extremes and power constraints are non-negotiable.
Key Features
- 5G Multi-Network Connectivity: Supports 5G with fallback to legacy 4G/LTE networks. Automatic carrier switching ensures continuous uplink availability across redundant SIM configurations.
- Industrial Operating Temperature Range: Rated −45 °C to 85 °C; no external heater or cooler required. Field-deployable in arctic and desert conditions without performance degradation.
- Low Power Consumption: 4.5W typical draw (3.5–8W across traffic loads). Operates on 12–30 VDC input via screw-down removable terminal block — compatible with standard industrial power supplies and uninterruptible power supplies (UPS).
- External Detachable Antenna: Repositionable antenna for optimized signal reception on pole-mount or wall-flush installations. Reduces on-site troubleshooting for weak signal conditions.
- Edge Computing Capable: Onboard compute resources allow local data filtering, device-to-device routing, and failover application logic without cloud round-trip latency.
- Compact Industrial Form Factor: 1.14 kg (2.51 lb) weight and sealed housing enable rapid deployment in space-constrained enclosures, junction boxes, and outdoor cabinets.
- 5-Year Manufacturer Warranty: Factory-new product with extended warranty coverage, reducing lifecycle refresh pressure on remote-site deployments.
The IX40-05 is built for integrators who need a primary or secondary connectivity path to surveillance systems, access-control panels, and IoT sensors deployed beyond traditional network infrastructure. Remote parking lots, pipeline monitoring stations, wildlife cameras, temporary event perimeters, and off-grid branch offices all benefit from the router's ability to bridge cellular coverage into a hardened local area network (LAN). The screw-terminal power input accepts battery backup or solar hybrid systems; the low quiescent draw makes it viable in power-constrained remote sites where AC mains are unavailable or unreliable.
Integration with existing VMS platforms (Genetec, Milestone, Avigilon) is transparent — the IX40-05 presents as a standard Ethernet gateway; it does not require proprietary client software or firmware updates to function as a cellular modem pool. ONVIF-compliant cameras and IP access-control readers connect downstream without modification. For sites with multiple carriers or geographic redundancy requirements, dual-SIM configurations (via external accessory modules) allow automatic failover between wireless networks, eliminating single points of carrier failure.
Edge computing capabilities built into the IX40-05 allow local analytics preprocessing — motion detection on video streams, geofencing logic for mobile assets, and protocol translation for legacy serial sensors — reducing bandwidth consumption and lowering cloud API costs on high-latency or metered cellular connections. This is particularly valuable in bandwidth-constrained regions where 5G rollout is incomplete and LTE backhaul remains the only option; edge filtering can reduce bitrate by 30–50% compared to continuous cloud streaming.
The IX40-05 is sourced direct from the manufacturer or US authorized distributor, factory-new, with no grey-market or parallel imports. For integrators standardizing on cellular backup across regional deployments, Digi's fleet management platform (Digi Remote Manager) provides zero-touch provisioning, remote firmware updates, and SIM lifecycle tracking across hundreds of distributed routers — critical for cost-of-ownership management at scale.
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed Digi cellular routers across hundreds of remote surveillance and access-control sites, and the IX40-05 fills a critical gap for integrators who need 5G-ready hardware without overprovisioning compute or footprint. The industrial temperature range and low-power architecture are what set it apart from consumer-grade mobile hotspots or cramped enterprise appliances. On a recent perimeter-security retrofit across three rural branch offices, the IX40-05 replaced aging 4G-only routers and reduced firmware-update cycles from quarterly manual interventions to zero-touch remote pushes through Digi Remote Manager. That operational simplification alone justifies the inclusion in any multi-site security architecture. The external antenna is a practical differentiator — we've had integrators reposition it inside enclosures to escape RF noise from high-voltage equipment or to optimize coverage across large parking areas. Compared to sealed competitors (Cradlepoint, Pepperl+Fuchs), the Digi is more modular; compared to low-cost Chinese cellular gateways, it's built to survive −45 °C field conditions without component failure.
Technical Highlights:
- Multi-Network 5G with LTE Fallback: Automatic mode switching keeps devices online even in regions with patchy 5G coverage. In our experience, this reduces helpdesk escalations from sites complaining of intermittent connectivity — the router handles the carrier negotiation transparently.
- 4.5W Typical Power Draw: At this consumption level, a modest 12V 7Ah battery UPS will sustain the router for 18+ hours in power-loss scenarios. We routinely pair it with off-the-shelf solar charge controllers for truly autonomous remote sites.
- 12–30 VDC Input with Screw Terminals: Industrial power supplies already in use at cell towers and remote cabinet sites integrate directly — no proprietary barrel connectors or wall adapters. Screw-down terminal block is bulletproof in vibration-prone environments (near HVAC, on vehicle mounts).
- Industrial Temperature Rating −45 °C to 85 °C: Components don't thermal-throttle at -40 °C or fail at 80 °C operating ambient. Critical for Alaska deployments, desert mining operations, and outdoor cabinets exposed to direct sunlight without active cooling.
- Edge Computing for Local Analytics: Onboard processing allows motion-triggered uploads, geofence logic, and protocol bridging without constant WAN consumption. On metered 5G plans, this translates to 30–50% bandwidth savings and lower monthly carrier charges.
Deployment Considerations:
- 5G availability is patchy in rural regions — verify carrier coverage maps before specifying this as primary connectivity. LTE fallback ensures the site doesn't go dark, but throughput assumptions should account for 4G-era speeds in many deployments.
- External antenna requires clear line-of-sight to cell tower (no deeply buried enclosures or metal-walled cabinets without external antenna extensions). If site conditions are poor, budget for external antenna mast extensions or directional repeaters.
- Dual-SIM failover and fleet management require Digi Remote Manager subscription — build annual licensing into total cost of ownership calculations for 10+ unit deployments.
- Serial port and USB access are available for legacy sensor integration (environmental monitors, generator controllers), but require custom edge computing scripts — not a GUI point-and-click integration.
- 5-year warranty covers hardware defects but not carrier outages or SIM-related issues; maintain a spare unit on-site for critical deployments to eliminate single-point-of-failure risk.
The IX40-05 is the right choice for integrators deploying surveillance, access control, or IoT infrastructure across distributed remote sites where cellular is the only viable WAN option and environmental extremes are guaranteed. For mission-critical perimeter security or geographically redundant deployments, pair it with failover SIM carriers and edge analytics to shift the reliability burden away from cloud dependencies. Explore the Digi International catalog for complementary industrial networking products.
