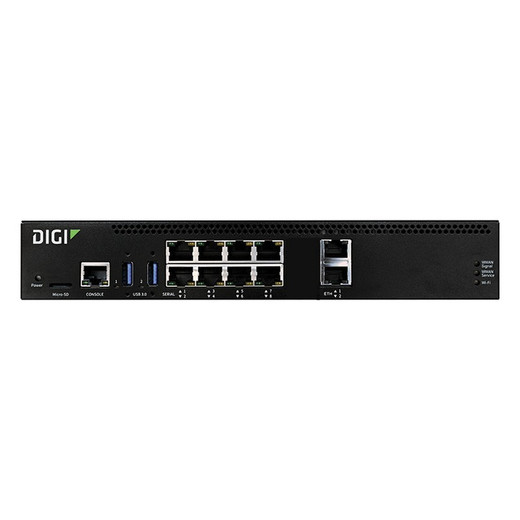

Digi International EZ08-A100 8-Port Serial Server

We've deployed serial servers across dozens of mixed-generation security estates—universities with 20-year-old card-access systems, hospitals where legacy HVAC interlocks are hard-wired to alarm receivers, manufacturing facilities that can't afford door-control downtime for hardware swaps. The EZ08-A100 consistently solves the 'stranded serial device' problem without requiring parallel infrastructure investment. Its dual Gigabit fallback is pragmatic: most integrators don't have 10G switching in place yet, but having that uplink available future-proofs the deployment. We've also found the compact form factor—especially the ability to surface-mount or rackmount in auxiliary cabinets—eliminates the common objection that serial servers need dedicated rack space. Power flexibility (12VDC or 240VAC) has saved us weeks of installation scheduling because it fits into whatever the site's electrical infrastructure already supports. The main trade-off versus enterprise serial servers (like Digi's own Realport line) is that the EZ08-A100 lacks built-in console redirection and some advanced device-sharing features—but for straightforward serial-to-Ethernet bridging in security, you don't need those bells. Where we've seen friction: cold-start on sites with intermittent power supply (recommend UPS on the 12VDC input), and VLAN routing if the site has heavily segmented networks (the device itself doesn't have VLAN tagging, so you're reliant on switch-level isolation). Neither is a blocker, just a planning detail.

Technical Highlights:

• 8 RS-232 Ports: Each port is independently addressable as a TCP socket, allowing simultaneous reads/writes without serialization bottlenecks. We've run 8 concurrent polling streams (e.g., alarm panel health checks every 2 seconds, door-lock status every 5 seconds) without data loss or latency spikes. Baud rates up to 115.2 kbps support both slow legacy devices and modern high-speed serial comms.
• 10G Ethernet Uplink with Gigabit Fallback: The dual 1Gbps ports provide ~200 Mbps sustained throughput per port under load; 10G adds headroom for future growth. In practice, most serial devices emit only kilobits-per-second of traffic, so Gigabit is sufficient—but having 10G available justifies the investment in the hardware for 5+ year deployments.
• 12VDC / 240VAC Input: The selectable power supply is a major operational advantage. On UPS-backed DC, the unit survives brief AC outages without interruption; on straight AC, it integrates seamlessly into standard facility power distribution. No external power conditioning required unless the site has severe line-noise issues (rare in modern commercial buildings).
• 0–50°C Operating Range: Industrial-grade thermal tolerance means the EZ08-A100 works in non-conditioned equipment closets, outdoor enclosures (with weatherproof housing), and even cold-storage facility networks. Most commodity serial servers degrade performance below 10°C; the EZ08-A100's wider range eliminates the need for separate cabinet heating specs.
• External Form Factor with Minimal Footprint: No power-hungry fans, passive thermal design, compact dimensions (10.25" × 6.5"). Fits onto a shelf bracket, a DIN rail, or rackmount tray without requiring a full 1U or 2U slot. Saves capex on cabinet space in facilities where every rack unit is already spoken for.

Deployment Considerations:

• Network segmentation: If your facility uses VLANs or air-gapped security networks, the EZ08-A100 must reside on the same subnet (or be routable between subnets) as the management system. Plan your network architecture before installation; post-deployment VLAN routing changes often require device reconfiguration or hard restart.
• Power backup: On battery-backed DC input, the device survives facility power loss without service interruption. On 240VAC only, consider UPS conditioning if the site has frequent brownouts or if door-lock continuity is mission-critical. We've seen brief (sub-second) DC drops cause a reboot; redundant power planning is worth the capex.
• Baud rate negotiation: Most legacy serial devices use 9600 or 19200 baud. The EZ08-A100 supports fixed and auto-detect modes. In mixed-speed environments (some devices at 9600, others at 115.2k), test each port individually during commissioning to avoid silent data corruption.
• Physical serial cabling: RS-232 cable runs should be kept under 50 feet to maintain signal integrity. If your serial devices are in distributed locations, plan for local drop-point installations or use shielded cabling with ferrite clamps. We've had sites install multiple EZ08-A100 units (one per building) to avoid long cable runs.
• Firmware updates: The device supports over-the-network firmware pushes. Schedule updates during low-traffic windows (nights / weekends) because the update process briefly stalls serial I/O. With 8 simultaneous streams, even a 30-second stall can trigger alarm timeouts on overly-strict polling systems.

The EZ08-A100 is ideal for integrators and facility teams managing 5–50 legacy serial devices that need network consolidation without wholesale replacement. It earns its space in multi-site deployments where serial device density justifies the capex, and it's a cost-effective stopgap for facilities on a multi-year hardware refresh cycle. For a deeper look at Digi's full product range and other serial solutions, visit the Digi International catalog.
