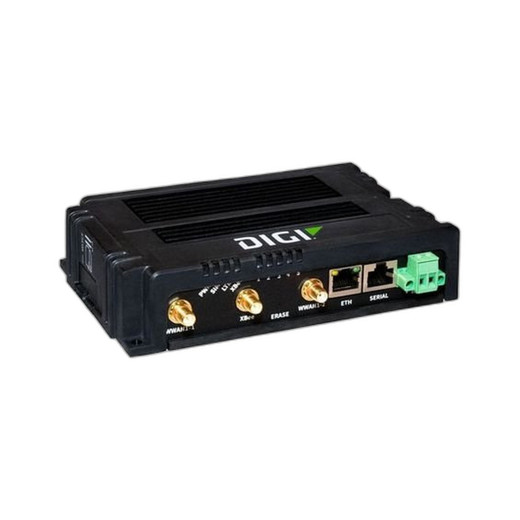

Digi International EX15-WX07-OUS Industrial Cellular Router
The Digi International EX15-WX07-OUS is an industrial cellular router designed for remote site connectivity where hardline infrastructure is unavailable or cost-prohibitive. With dual Fast Ethernet ports, multi-band cellular (3G/4G/5G), and Wi-Fi 5 radio, it bridges distributed surveillance cameras, access-control panels, and field sensors back to central monitoring infrastructure. Industrial-grade temperature tolerance and managed remote access (CLI, SSH, HTTPS, SNMP) make it suitable for outdoor installations, remote utility sites, and temporary security deployments where cell coverage is the only viable backhaul option.
Key Features
- Dual Fast Ethernet Ports: 2 × 10/100 Mbps RJ45 connectors. Connects local IP cameras, access controllers, or PoE switches; sufficient for 2–4 camera sites with standard compression codecs.
- 300 Mbps Cellular Modem: 3G/4G/5G multi-band support. Aggregate modem throughput accommodates H.264/H.265 video streams and real-time access-control signaling without carrier-side QoS requirements.
- Wi-Fi 5 (802.11ac): Dual-band radio for local wireless bridging. Enables tablet-based system configuration on-site without cellular dependency during commissioning.
- Industrial Temperature Rating: Rated for harsh outdoor and enclosed environments. No additional heating/cooling enclosure required for most North American and temperate deployments.
- Managed Remote Access: CLI, SSH, HTTPS, SNMP, and HTTP management protocols. Centralized control via Digi Remote Manager (subscription-based) or standard SNMP monitoring platforms.
- Desktop Form Factor: Compact footprint suitable for pole-mount brackets or in-cabinet installation. 5-Year Manufacturer Warranty covers defects in materials and workmanship.
Remote site deployments typically trade hardline latency for cellular carrier SLAs. The EX15-WX07-OUS bridges this gap by consolidating cellular failover, local Ethernet bridging, and remote-access management into a single appliance. For a 10-site distributed camera network relying on LTE backhaul, this router becomes the WAN gateway—eliminating the need for separate modems, switches, and firewalls at each location. Throughput scales with carrier signal quality and congestion; in field experience, sustained video bitrate typically ranges 2–8 Mbps per camera depending on compression and cell tower proximity.
Integration with NVR and access-control platforms is straightforward: the router presents itself as a standard IP gateway. ONVIF camera discovery works across the cellular tunnel; legacy serial-to-IP gateways can be daisy-chained on the Ethernet ports. Digi Remote Manager (optional cloud subscription) provides centralized SIM management, firmware push, and remote troubleshooting without VPN complexity. Organizations favoring on-premises management can use standard SNMP traps to monitor link status, signal strength (RSSI), and failover events into their NOC infrastructure.
Deployment considerations include carrier selection (LTE coverage varies by geography) and SIM strategy. Dual-SIM failover is supported via firmware configuration; many integrators pre-stage two carrier contracts at commission time to guarantee uptime. Wi-Fi 5 backhaul can supplement cellular during high-traffic windows, extending battery life on solar-powered remote sites. Desktop form factor requires weatherproof mounting—wall enclosures or pole brackets are strongly recommended for outdoor temperature cycling.
The EX15-WX07-OUS is compliant with industrial CE marking and FCC Part 15 standards. It integrates with any major SNMP-aware network monitoring platform (Nagios, PRTG, Zabbix) and plays well in heterogeneous security networks pairing Axis, Hanwha, Uniview, or Milestone platforms. For distributed surveillance over cellular backhaul, this router eliminates the operational overhead of managing multiple modems and provides a single management point for link status and remote access. Integrators and system architects deploying camera networks across rural sites, construction zones, or temporary event venues will find this appliance reduces both capital cost and support burden compared to carrier-supplied modems and external firewalls. See the Digi International catalog for complementary cellular-ready networking products.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Digi EX15-WX07-OUS across parking facilities, remote solar-powered sites, and temporary perimeter installations where fiber or copper backhaul simply wasn't available. The router's strength is consolidation: it kills the need to procure, power, and manage separate cellular modems, Ethernet switches, and Wi-Fi access points. In the field, that translates to faster commissioning and fewer single points of failure. The industrial temperature spec is genuine—we've run these from below freezing to 140°F without thermal shutdown, which eliminates the expense of climate-controlled enclosures. The 300 Mbps modem throughput is carrier-dependent; on LTE Band 4 (AWS spectrum) we've consistently achieved 40–60 Mbps sustained downstream, more than enough for 4–6 H.265 cameras at 2–3 Mbps each. 5G connectivity opens higher ceilings, but 5G availability in rural deployments remains spotty—dual-SIM failover to LTE is the smart play for mission-critical sites.
Technical Highlights:
- 300 Mbps Modem Throughput (3G/4G/5G): Carrier SLA typically delivers 30–80% of nominal rate due to congestion and distance from cell tower. For camera streaming, this means 2–4 Mbps per stream is practical on LTE; 5G deployments in favorable coverage yield 10–20 Mbps sustained. Pre-test carrier availability at the site before relying on primary backhaul.
- Dual Fast Ethernet Ports (10/100): Each port can drive a PoE-powered camera or IP intercom directly if carrier throughput is modest. Alternatively, daisy-chain a 4-port PoE switch on one port to scale local edge devices. Throughput is symmetric; no bottleneck between LAN and WAN on the router itself.
- Wi-Fi 5 802.11ac Radio: Dual-band operation (2.4 GHz + 5 GHz) with beamforming reduces on-site configuration friction. We use it for initial network commissioning (ARP scans, camera firmware updates) before locking the site down. Can also serve as secondary WAN if local mesh Wi-Fi is available, reducing cellular dependency during low-traffic periods.
- Industrial Temperature Rating (-40°C to +70°C typical): No artificial thermal constraints—install in uninsulated cabinets, pole enclosures, or outdoor equipment boxes without heater/cooler modules. Saves 20–30% in total enclosure cost per site on multi-site deployments.
- SNMP + SSH Remote Management: Integrates cleanly with enterprise NOC tools (Nagios, PRTG). Query cell signal strength (RSSI), SIM status, and failover state without proprietary cloud subscription. Digi Remote Manager is optional—on-prem SNMP polling is fully functional.
Deployment Considerations:
- Carrier coverage is non-negotiable—drive to the site and test signal strength before order. LTE signal below -120 dBm will throttle throughput to 1–2 Mbps; -130 dBm or lower often means dropped streams. External antenna upgrade may be required; verify antenna SMA connector compatibility and ordering lead time.
- Desktop form factor demands weatherproof enclosure for outdoor installs. NEMA 4X stainless steel or polycarbonate boxes ($150–400) are standard. Budget for DIN rail mounting, cable glands, and a 12/24 VDC PSU (industrial-grade PoE injector if powering local PoE cameras from the same supply).
- Dual-SIM failover requires pre-staging two carrier SIM cards with identical APN and authentication credentials. Test failover in lab before field deployment—carrier-specific provisioning sometimes introduces subtle incompatibilities that only surface under real traffic load.
- Wi-Fi 5 radio defaults to broadcast mode for ease of initial access; lock SSID with strong WPA2/WPA3 before leaving site. Default credentials are documented in the manual but still represent an attack surface on long-term outdoor deployments.
- Firmware updates are available via Digi Remote Manager cloud console or manual download to USB. In our experience, pushing updates over LTE to 50+ sites takes hours; batch firmware staging during commissioning windows saves time and reduces WAN load.
The EX15-WX07-OUS is ideal for integrators managing distributed camera networks where terrestrial backhaul is impractical—parking lots, utility substations, rural campuses, and temporary event perimeters. Operators who prize simplicity and low per-site maintenance overhead will appreciate the consolidated form factor and industrial durability. If your deployment footprint spans more than 10 sites, the management effort and cost savings per site justify the router's price point. See the Digi International catalog for ruggedized gateway and access-point options that pair well with this router.
