Description

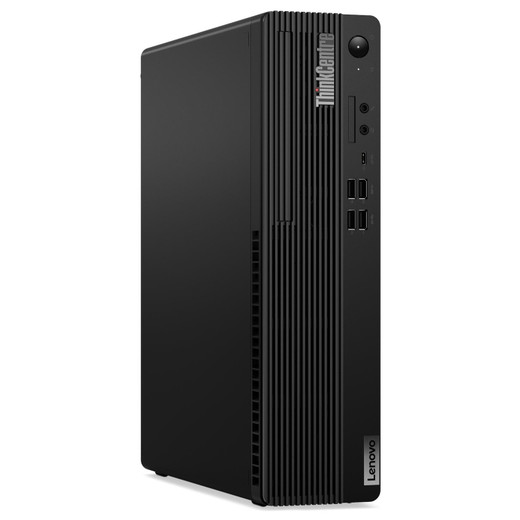

Lenovo 12V4000WUS Desktop TC M90S GEN 5 I914900 32G N W11P

Overview

The Lenovo Desktop TC M90S GEN 5, model 12V4000WUS, is a compact, high-performance desktop workstation engineered for demanding surveillance applications. It provides the processing power and memory required to run multiple VMS clients, analyze video streams, and manage large datasets without performance bottlenecks. This system is ideal for security operations centers (SOCs) or on-site monitoring stations where reliability and speed are paramount.

Compatibility

This workstation is designed to support a wide range of Video Management Software (VMS) platforms, including but not limited to Milestone XProtect, Genetec Security Center, and Avigilon ACC. It is compatible with modern IP cameras from major manufacturers, provided the VMS supports the camera's codec and resolution. The included Windows 11 Pro operating system ensures broad software compatibility.

Installation Notes

The compact form factor allows for flexible deployment in rack-mount or desktop configurations. Ensure adequate ventilation around the unit, especially when running under sustained load for extended periods, to maintain optimal operating temperatures and prevent thermal throttling. Standard power connections are required; no specialized power infrastructure is needed beyond a typical office or control room environment.

What's in the Box

  • 1x Lenovo Desktop TC M90S GEN 5 I914900 32G N W11P
Expert Analysis
Specifications
Overview: DESKTOP TC M90S GEN 5 I914900 32G N W11P
Processor: Intel Core i9-14900, 24C (8P + 16E) / 32T, Max Turbo up to 5.8GHz, P-core 2.0 / 5.4GHz, E-core 1.5 / 4.3GHz, 36MB Intel Smart Cache
Graphics: Intel Arc A310 LP 4GB GDDR6
Chipset: Intel Q670 Chipset
Memory: 2x 16GB UDIMM DDR5-4400
Memory Slots: Four DDR5 UDIMM slots, dual-channel capable
Max Memory: Up to 128GB DDR5
Storage: 1TB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0
Max Storage: Up to four drives, 1x 3.5" HDD + 1x 2.5" HDD + 2x M.2 SSD • 3.5" HDD up to 2TB • 2.5" HDD bay is only for customer self upgrade • M.2 SSD up to 2TB each
Speakers: 1Wx1
Power Supply: 310W 92%
Stand: None
Dimensions (WxDxH: 92.5 x 297.7 x 339.5 mm (3.6 x 11.7 x 13.4 inches)
Weight: Around 5.3 kg (11.7 lbs)
Wireless: Intel Wi-Fi 6E AX211, 802.11ax 2x2 + BT5.3, vPro
Ethernet: Integrated 100/1000M
Front Ports: 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with 15W charging; 2x USB-A (USB 5Gbps / USB 3.2 Gen 1); 2x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x headphone / microphone combo jack (3.5mm); 1x microphone (3.5mm)
Ports: 4x USB-A (USB 5Gbps / USB 3.2 Gen 1); 1x HDMI 2.1 TMDS; 2x DisplayPort 1.4a (HBR2, DSC); 1x Ethernet (RJ-45); 1x line-out (3.5mm)
Security Chip: Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Warranty: 3-year, Onsite
Operating System: Windows 11 Pro, English
Country of Origin: Mexico
UNSPSC: 43211508
Q&A
Reviews
Product Video

Lenovo Desktop TC M90S GEN 5 I914900 32G N W11P - 12V4000WUS

$2,009.00
