Description

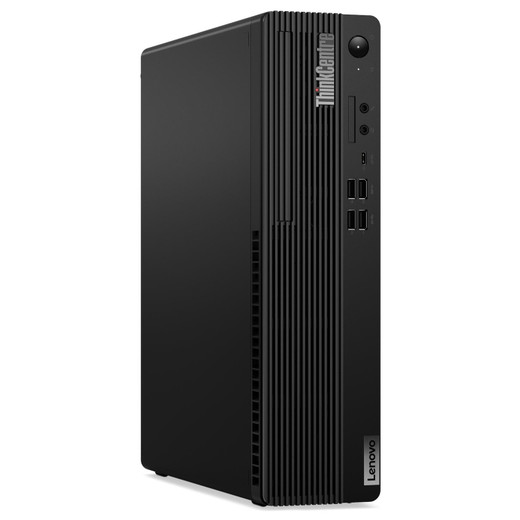

Lenovo 12V40000US ThinkCentre M90s Gen 5 Desktop

Overview

The Lenovo ThinkCentre M90s Gen 5 desktop, model 12V40000US, is engineered for demanding business environments requiring significant processing power and fast storage. It features an Intel Core i9-14900 vPro processor with up to 4.30GHz clock speed and 36MB cache, paired with 32GB of RAM for robust multitasking. This configuration is suitable for complex applications, data analysis, and professional workstations where performance is critical. The inclusion of a 1TB M.2 2280 PCIe Gen4 TLC Opal SSD ensures rapid boot times and application loading, accelerating workflows.

Compatibility

This desktop is designed to run Windows 11 Pro 64-bit. It supports Intel AX211 vPro Wi-Fi 6E and Bluetooth 5.1 or higher for reliable wireless connectivity. The system includes traditional USB ports and is built for standard desktop environments. While not explicitly a surveillance device, its processing power makes it capable of running VMS client software, handling multiple camera streams for live viewing, or performing video analytics tasks when paired with appropriate software and displays.

Installation Notes

The unit includes a Slim DVD RAMBO drive for optical media needs. It comes with a 3-year onsite warranty, providing support for critical business operations. Standard power connections are required. The Intel UHD Graphics 770 provides display output for up to three monitors, facilitating multi-display setups for enhanced productivity.

What's in the Box

  • 1x Lenovo ThinkCentre M90s Gen 5 Desktop (12V40000US)
  • 1x Power Cord
  • 1x Keyboard
  • 1x Mouse
  • 1x Windows 11 Pro 64-bit
  • 1x 3-Year Onsite Warranty documentation
Specifications
Overview: ThinkCentre M90s Gen 5, Intel Core i914900 vPro Ecores up to 4.30GHz, 36MB, Windows 11 Pro 64, 32.0GB, 1x1TB SSD M.2 2280 PCIe Gen4 TLC Opal, Intel UHD Graphics 770, Slim DVD RAMBO, BT 5.1 or above, Intel AX211vPro, 3 Year Onsite, USB, Traditional, B
Processor: Intel Core i9-14900, 24C (8P + 16E) / 32T, Max Turbo up to 5.8GHz, P-core 2.0 / 5.4GHz, E-core 1.5 / 4.3GHz, 36MB Intel Smart Cache
Graphics: Integrated Intel UHD Graphics 770
Chipset: Intel Q670 Chipset
Memory: 2x 16GB UDIMM DDR5-4400
Memory Slots: Four DDR5 UDIMM slots, dual-channel capable
Max Memory: Up to 128GB DDR5
Storage: 1TB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0
Max Storage: Up to four drives, 1x 3.5" HDD + 1x 2.5" HDD + 2x M.2 SSD • 3.5" HDD up to 2TB • 2.5" HDD bay is only for customer self upgrade • M.2 SSD up to 2TB each
Speakers: 1Wx1
Power Supply: 310W 92%
Stand: None
Dimensions (WxDxH: 92.5 x 297.7 x 339.5 mm (3.6 x 11.7 x 13.4 inches)
Weight: Around 5.3 kg (11.7 lbs)
Wireless: Intel Wi-Fi 6E AX211, 802.11ax 2x2 + BT5.3, vPro
Ethernet: Integrated 100/1000M
Front Ports: 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with 15W charging; 2x USB-A (USB 5Gbps / USB 3.2 Gen 1); 2x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x headphone / microphone combo jack (3.5mm); 1x microphone (3.5mm)
Ports: 4x USB-A (USB 5Gbps / USB 3.2 Gen 1); 1x HDMI 2.1 TMDS; 2x DisplayPort 1.4a (HBR2, DSC); 1x Ethernet (RJ-45); 1x line-out (3.5mm)
Security Chip: Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Warranty: 3-year, Onsite
Operating System: Windows 11 Pro, English
Country of Origin: Mexico
UNSPSC: 43211508
Q&A
Reviews

Lenovo Desktop TC M90S GEN 5 I914900 32G N W11P - 12V40000US

$3,179.00
$3,178.99
