Description

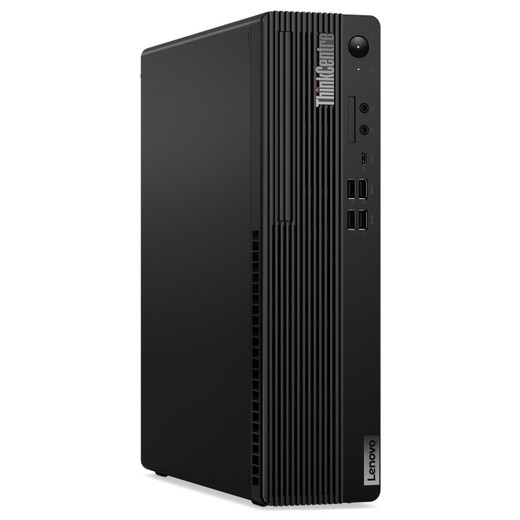

Lenovo 12V40003US Desktop TC M90S GEN 5 I914900 32G N W11P

Overview

The Lenovo ThinkCentre M90s Gen 5 desktop, model 12V40003US, is a compact workstation engineered for demanding business environments. It features an Intel Core i9-14900 vPro processor with E-cores up to 4.30GHz and 36MB cache, paired with 32GB of RAM and a 512GB PCIe Gen4 TLC Opal SSD. This configuration is designed to handle intensive multitasking, complex data analysis, and high-performance applications, making it suitable for roles requiring significant computational power, such as video editing, CAD, or running virtual machines.

Compatibility

This desktop is designed for general business computing and is compatible with a wide range of enterprise software. It runs Windows 11 Pro 64-bit, ensuring broad compatibility with industry-standard applications and network infrastructure. The integrated Intel UHD Graphics 770 supports multiple displays for enhanced productivity. For surveillance system integration, it can host VMS clients, manage smaller camera counts directly, or serve as a robust workstation for remote monitoring and analysis, provided the VMS software is compatible with Windows 11 Pro and the hardware specifications.

Installation Notes

The M90s Gen 5 is a slim form factor (SFF) desktop, measuring approximately 365mm x 287mm x 88mm (14.37" x 11.30" x 3.46"), allowing for flexible placement on a desk or within a rack using optional mounting kits. It includes Bluetooth 5.1 or above and Intel AX211vPro Wi-Fi for wireless connectivity. The system comes with a 3-year on-site warranty, providing support for critical business uptime.

What's in the Box

  • 1x Lenovo ThinkCentre M90s Gen 5 Desktop (12V40003US)
  • 1x Slim DVD RAMBO drive
  • 1x Power Cord
  • 1x Keyboard
  • 1x Mouse
  • Warranty Documentation
Specifications
Overview: ThinkCentre M90s Gen 5, Intel Core i9-14900 vPro (E-cores up to 4.30GHz, 36MB), Windows 11 Pro 64, 32.0GB, 1x512GB SSD M.2 2280 PCIe Gen4 TLC Opal, Intel UHD Graphics 770, Slim DVD RAMBO, BT 5.1 or above, Intel AX211vPro, 3 Year On-site, USB, Traditi
Processor: Intel Core i9-14900, 24C (8P + 16E) / 32T, Max Turbo up to 5.8GHz, P-core 2.0 / 5.4GHz, E-core 1.5 / 4.3GHz, 36MB Intel Smart Cache
Graphics: Integrated Intel UHD Graphics 770
Chipset: Intel Q670 Chipset
Memory: 2x 16GB UDIMM DDR5-4400
Memory Slots: Four DDR5 UDIMM slots, dual-channel capable
Max Memory: Up to 128GB DDR5
Storage: 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0
Max Storage: Up to four drives, 1x 3.5" HDD + 1x 2.5" HDD + 2x M.2 SSD • 3.5" HDD up to 2TB • 2.5" HDD bay is only for customer self upgrade • M.2 SSD up to 2TB each
Speakers: 1Wx1
Power Supply: 310W 92%
Stand: None
Dimensions (WxDxH: 92.5 x 297.7 x 339.5 mm (3.6 x 11.7 x 13.4 inches)
Weight: Around 5.3 kg (11.7 lbs)
Wireless: Intel Wi-Fi 6E AX211, 802.11ax 2x2 + BT5.3, vPro
Ethernet: Integrated 100/1000M
Front Ports: 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with 15W charging; 2x USB-A (USB 5Gbps / USB 3.2 Gen 1); 2x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x headphone / microphone combo jack (3.5mm); 1x microphone (3.5mm)
Ports: 4x USB-A (USB 5Gbps / USB 3.2 Gen 1); 1x HDMI 2.1 TMDS; 2x DisplayPort 1.4a (HBR2, DSC); 1x Ethernet (RJ-45); 1x line-out (3.5mm)
Security Chip: Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Warranty: 3-year, Onsite
Operating System: Windows 11 Pro, English
Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Country of Origin: Mexico
UNSPSC: 43211508
