Description

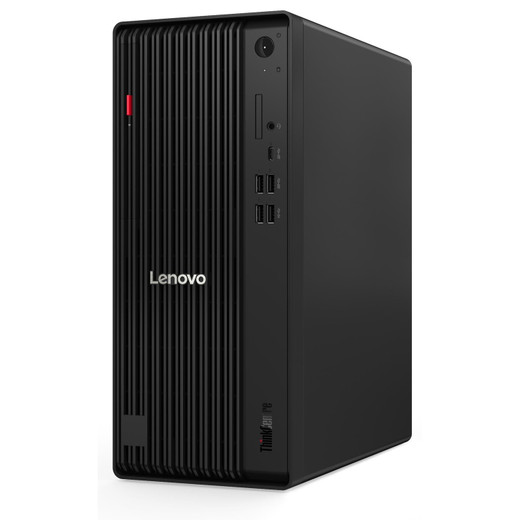

Lenovo 12YH001QUS Desktop TC M70T GEN 6 U5235 8G N W11P

Overview

The Lenovo 12YH001QUS is a compact desktop workstation designed for reliable performance in business environments. It features an Intel Core processor, 8GB of RAM, and Windows 11 Pro, providing a solid foundation for daily productivity tasks, office applications, and general computing needs. This model is suited for deployment in standard office setups, call centers, or as a client machine for network management where a stable, pre-configured operating system is required.

Compatibility

This desktop is designed to run standard business applications and operating systems. It is compatible with a wide range of peripherals and network infrastructure commonly found in corporate IT environments. Specific compatibility with surveillance VMS software depends on the software's system requirements and the desktop's installed specifications, but it is generally suitable as a client viewing station or for light recording duties if configured appropriately with additional storage.

Installation Notes

Requires standard AC power connection. Ensure adequate ventilation around the chassis to maintain optimal operating temperatures. The unit is designed for desktop placement or can be mounted using compatible VESA mounts or stands (sold separately) for space-saving configurations.

What's in the Box

  • 1x Lenovo Desktop TC M70T GEN 6 U5235 8G N W11P - 12YH001QUS
Specifications
Overview: DESKTOP TC M70T GEN 6 U5235 8G N W11P
Processor: Intel Core Ultra 5 235, 14C (6P + 8E) / 14T, Max Turbo up to 5.0GHz, 24MB Intel Smart Cache
NPU: Integrated Intel AI Boost, up to 13 TOPS
Graphics: Integrated Intel Graphics
Chipset: Intel Q870 Chipset
Memory: 1x 8GB UDIMM DDR5-5600
Memory Slots: Four DDR5 UDIMM slots, dual-channel capable
Max Memory: Up to 128GB DDR5
Storage: 256GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0
Max Storage: Up to four drives, 1x 3.5" HDD + 1x 2.5" HDD + 2x M.2 SSD • 3.5" HDD up to 2TB • 2.5" HDD bay is only for customer self upgrade • M.2 SSD up to 2TB each
Speakers: 2Wx1
Power Supply: 260W 90%
Stand: No stand
Dimensions (WxDxH: 145 x 296 x 346 mm (5.7 x 11.7 x 13.6 inches)
Weight: 5.7 kg (12.6 lbs, maximum configuration)
Wireless: Intel Wi-Fi 6E AX211, 802.11ax 2x2 + BT5.3, vPro
Ethernet: Integrated 100/1000M
Front Ports: 1x USB-C (USB 5Gbps / USB 3.2 Gen 1), with 15W charging; 2x USB-A (USB 5Gbps / USB 3.2 Gen 1); 2x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x headphone / microphone combo jack (3.5mm)
Ports: 4x USB-A (USB 5Gbps / USB 3.2 Gen 1), one supports Smart Power On and USB Always On; 1x HDMI 2.1 TMDS; 2x DisplayPort 1.4a (HBR3, DSC); 1x Ethernet (RJ-45); 1x line-out (3.5mm)
Security Chip: Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Warranty: 3-year, Onsite
Operating System: Windows 11 Pro, English
Country of Origin: Mexico
UNSPSC: 43211508
