Description

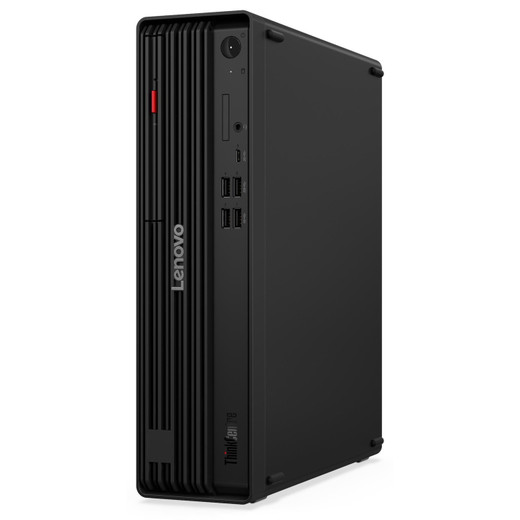

Lenovo 12YK000MUS Desktop TC M70S GEN 6 U5235 8G N W11P

Overview

The Lenovo ThinkCentre M70s Gen 6 desktop, model 12YK000MUS, is a compact, business-class workstation designed for environments demanding reliable computing power in a small footprint. It's engineered for productivity in office settings, data entry roles, or as a client endpoint for surveillance VMS applications where space is at a premium. The 'U5235' designation indicates a specific pre-configured build.

Compatibility

This desktop is compatible with a wide range of peripherals and network infrastructure. It supports standard USB keyboards, mice, and external storage devices. For VMS integration, it can run client software for leading platforms like Milestone XProtect, Genetec Security Center, and Axis Camera Station, provided the software meets the system's hardware requirements. It connects to standard business networks via its integrated Gigabit Ethernet port.

Installation Notes

The M70s Gen 6 features a small form factor (SFF) chassis, allowing for flexible placement on a desk or in tight rack-mount scenarios with an optional kit. Its integrated power supply means no external brick is required. Ensure adequate ventilation around the unit, especially if deployed in a rack or enclosed space, to maintain optimal operating temperatures and prevent thermal throttling.

What's in the Box

  • 1x Lenovo ThinkCentre M70s Gen 6 Desktop (12YK000MUS)
  • 1x Power Cord
  • 1x Keyboard
  • 1x Mouse
  • 1x Quick Start Guide
Specifications
Overview: DESKTOP TC M70S GEN 6 U5235 8G N W11P
Processor: Intel Core Ultra 5 235, 14C (6P + 8E) / 14T, Max Turbo up to 5.0GHz, 24MB Intel Smart Cache
NPU: Integrated Intel AI Boost, up to 13 TOPS
Graphics: Integrated Intel Graphics
Chipset: Intel Q870 Chipset
Memory: 1x 8GB UDIMM DDR5-5600
Memory Slots: Four DDR5 UDIMM slots, dual-channel capable
Max Memory: Up to 128GB DDR5
Storage: 256GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0
Max Storage: Up to four drives, 1x 3.5" HDD + 1x 2.5" HDD + 2x M.2 SSD • 3.5" HDD up to 2TB • 2.5" HDD bay is only for customer self upgrade • M.2 SSD up to 2TB each
Speakers: 1Wx1
Power Supply: 260W 90%
Stand: Vertical Stand
Dimensions (WxDxH: 92.5 x 299.7 x 339.5 mm (3.6 x 11.8 x 13.4 inches)
Weight: 5.1 kg (11.2 lbs, maximum configuration)
Wireless: Intel Wi-Fi 6E AX211, 802.11ax 2x2 + BT5.3, vPro
Ethernet: Integrated 100/1000M
Front Ports: 1x USB-C (USB 5Gbps / USB 3.2 Gen 1), with 15W charging; 2x USB-A (USB 5Gbps / USB 3.2 Gen 1); 2x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x headphone / microphone combo jack (3.5mm)
Ports: 4x USB-A (USB 5Gbps / USB 3.2 Gen 1), one supports Smart Power On and USB Always On; 1x HDMI 2.1 TMDS; 2x DisplayPort 1.4a (HBR3, DSC); 1x Ethernet (RJ-45); 1x line-out (3.5mm)
Security Chip: Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Warranty: 3-year, Onsite
Operating System: Windows 11 Pro, English
Country of Origin: Mexico
UNSPSC: 43211508
