Description

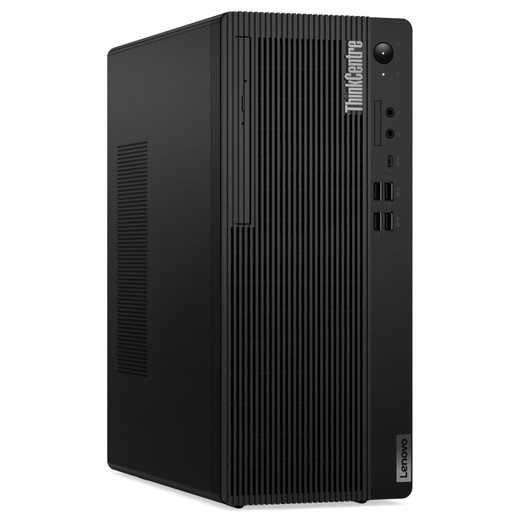

Lenovo 12U0000PUS Desktop TC M70T GEN 5 I514500 8G N W11P

Overview

The Lenovo Desktop TC M70T GEN 5, model 12U0000PUS, is a commercial-grade desktop workstation designed for demanding business applications. It provides the processing power and stability required for running multiple surveillance client applications simultaneously, managing video streams, and performing data analysis without performance degradation. This system is a solid choice for integration into security operations centers or for IT professionals managing distributed surveillance systems.

Compatibility

This desktop is compatible with a wide range of surveillance software, including VMS platforms such as Milestone XProtect, Genetec Security Center, and Avigilon Control Center. It supports standard Windows 11 Pro operating systems, ensuring broad compatibility with most commercial security applications. For specific VMS requirements, consult your VMS provider's hardware recommendations.

Installation Notes

The TC M70T GEN 5 features a compact tower form factor suitable for desk placement or rack mounting with an optional kit. Ensure adequate ventilation around the unit to maintain optimal operating temperatures and prevent thermal throttling during extended use. Standard power connections are required; no specialized power infrastructure is needed beyond a typical office environment.

What's in the Box

  • 1x Lenovo Desktop TC M70T GEN 5 I514500 8G N W11P
  • 1x Power Cord
  • 1x Keyboard
  • 1x Mouse
  • 1x Documentation
Specifications
Overview: DESKTOP TC M70T GEN 5 I514500 8G N W11P
Processor: Intel Core i5-14500, 14C (6P + 8E) / 20T, P-core 2.6 / 5.0GHz, E-core 1.9 / 3.7GHz, 24MB Intel Smart Cache
Graphics: Integrated Intel UHD Graphics 770
Chipset: Intel Q670 Chipset
Memory: 1x 8GB UDIMM DDR5-4800
Memory Slots: Two DDR5 UDIMM slots, dual-channel capable
Max Memory: Up to 64GB DDR5
Storage: 256GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0
Max Storage: Up to three drives, 1x 3.5" HDD + 1x 2.5" HDD + 1x M.2 SSD • 3.5" HDD up to 2TB • 2.5" HDD bay is only for customer self upgrade • M.2 SSD up to 2TB each
Speakers: 2Wx1
Power Supply: 260W 90%
Dimensions (WxDxH: 145 x 296 x 346 mm (5.7 x 11.7 x 13.6 inches)
Weight: Around 5.9 kg (13.0 lbs)
Wireless: Intel Wi-Fi 6E AX211, 802.11ax 2x2 + BT5.3, vPro
Ethernet: Integrated 100/1000M
Front Ports: 1x USB-C (USB 5Gbps / USB 3.2 Gen 1), with 15W charging; 4x USB-A (USB 5Gbps / USB 3.2 Gen 1); 1x headphone / microphone combo jack (3.5mm); 1x microphone (3.5mm)
Ports: 4x USB-A (Hi-Speed USB / USB 2.0); 1x HDMI 2.1 TMDS; 1x DisplayPort 1.4a (HBR2, DSC); 1x Ethernet (RJ-45)
Security Chip: Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Warranty: 3-year, Onsite
Operating System: Windows 11 Pro, English
Country of Origin: Mexico
UNSPSC: 43211508
Q&A
Reviews

Lenovo Desktop TC M70T GEN 5 I514500 8G N W11P - 12U0000PUS

$1,409.00
$1,408.99
