Description

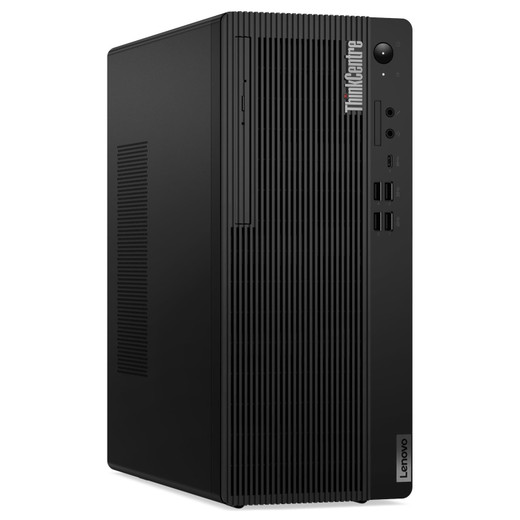

Lenovo 12U00016US Desktop TC M70T GEN 5 I514500 16G N W11P

Overview

The Lenovo Desktop TC M70T GEN 5, model 12U00016US, is a business-class desktop workstation designed for demanding professional environments. It features an Intel Core i5-14500 processor and 16GB of RAM, providing robust performance for multitasking and running complex applications. Pre-installed with Windows 11 Pro, this system offers enhanced security features and productivity tools essential for enterprise deployments. Its compact form factor allows for flexible placement in various office setups, from standard desks to space-constrained areas.

Compatibility

This desktop is designed for general business use and is compatible with a wide range of peripherals and network infrastructure. It supports standard USB devices, network interfaces, and display outputs. For surveillance applications, it can serve as a workstation for viewing live feeds or managing smaller NVR systems, provided the necessary VMS software is installed and supported by the operating system and hardware specifications. It is not a dedicated surveillance appliance but can be integrated into a broader IT ecosystem.

Installation Notes

The Lenovo TC M70T GEN 5 requires standard AC power input. Ensure adequate ventilation around the unit to maintain optimal operating temperatures, especially under sustained load. For network connectivity, a standard Ethernet cable connection is required. Ensure the operating system is updated and security patches are applied before connecting to any sensitive network segments.

What's in the Box

  • 1x Lenovo Desktop TC M70T GEN 5 I514500 16G N W11P (12U00016US)
Specifications
Overview: DESKTOP TC M70T GEN 5 I514500 16G N W11P
Processor: Intel Core i5-14500, 14C (6P + 8E) / 20T, P-core 2.6 / 5.0GHz, E-core 1.9 / 3.7GHz, 24MB Intel Smart Cache
Graphics: NVIDIA GeForce RTX 3050 6GB GDDR6
Chipset: Intel Q670 Chipset
Memory: 1x 16GB UDIMM DDR5-4800
Memory Slots: Two DDR5 UDIMM slots, dual-channel capable
Max Memory: Up to 64GB DDR5
Storage: 256GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0
Max Storage: Up to three drives, 1x 3.5" HDD + 1x 2.5" HDD + 1x M.2 SSD • 3.5" HDD up to 2TB • 2.5" HDD bay is only for customer self upgrade • M.2 SSD up to 2TB each
Speakers: 2Wx1
Power Supply: 260W 90%
Dimensions (WxDxH: 145 x 296 x 346 mm (5.7 x 11.7 x 13.6 inches)
Weight: Around 5.9 kg (13.0 lbs)
Wireless: Intel Wi-Fi 6E AX211, 802.11ax 2x2 + BT5.3, vPro
Ethernet: Integrated 100/1000M
Front Ports: 1x USB-C (USB 5Gbps / USB 3.2 Gen 1), with 15W charging; 4x USB-A (USB 5Gbps / USB 3.2 Gen 1); 1x headphone / microphone combo jack (3.5mm); 1x microphone (3.5mm)
Ports: 4x USB-A (Hi-Speed USB / USB 2.0); 1x HDMI 2.1 TMDS; 1x DisplayPort 1.4a (HBR2, DSC); 1x Ethernet (RJ-45)
Security Chip: Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Warranty: 3-year, Onsite
Operating System: Windows 11 Pro, English
Country of Origin: Mexico
UNSPSC: 43211508
Q&A
Reviews

Lenovo Desktop TC M70T GEN 5 I514500 16G N W11P - 12U00016US

$2,089.00
$2,088.99
