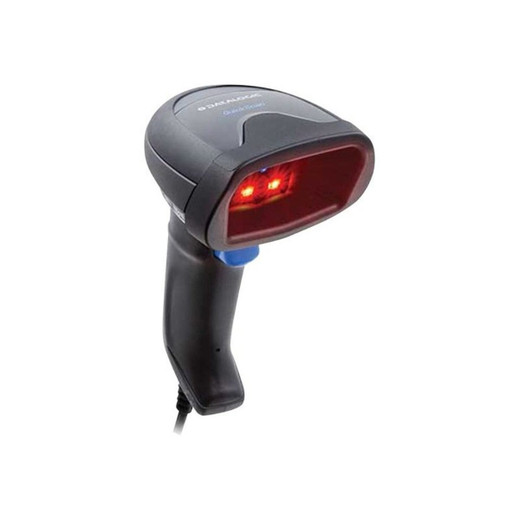

Datalogic QW2520-BKK1 1D/2D Area Imager Handheld Scanner

Datalogic QW2520-BKK1 1D/2D Area Imager Handheld Scanner

The Datalogic QW2520-BKK1 is a wired handheld barcode scanner built for high-volume retail point-of-sale and warehouse operations. As a 1D/2D area imager with 1 MP optical resolution, it captures both linear and 2D codes reliably without the maintenance overhead of laser scanners. The QW2520-BKK1 (often searched as QW2520 BKK1) delivers consistent decode performance across standard retail barcodes, GS1 DataBars, and challenging print-quality conditions commonly encountered in commercial environments.

Key Features

• 1D/2D Area Imager, 1 MP Optical Resolution: Captures both linear and 2D barcodes without moving parts or laser alignment issues. The 1 MP resolution is sufficient for standard retail and warehouse barcode formats, eliminating the cost and complexity of higher-megapixel sensors while maintaining fast decode speeds critical for high-throughput checkout lanes and receiving docks.
• IP52 Environmental Sealing: Dust and splash-resistant design protects against common retail spills and warehouse dust conditions. IP52 is adequate for indoor commercial settings but not rated for high-pressure wash-down or outdoor exposed environments—a practical balance between durability and cost for standard retail and warehouse floors.
• 1.5 m (5 ft) Drop Rating: Survives accidental falls from typical counter and shelf heights without functional degradation. This specification aligns with real-world handling in busy retail and warehouse environments where devices are frequently set down or bumped.
• 10 Million Trigger Press Durability: Rated mechanical switch lifespan translates to approximately 5–7 years of typical daily scanning use, directly supporting the device's 5-year limited warranty and reducing the need for premature replacement cycles in high-volume operations.
• Lightweight 145 g Design: At 0.32 lb, the compact form factor reduces operator fatigue during extended scanning sessions typical of retail checkout and warehouse inventory cycles, minimizing repetitive strain injuries in high-throughput environments.
• Multiple Connectivity Interfaces: Supports USB, RS-232, and Keyboard Wedge wired connections, enabling flexible integration with legacy POS systems, modern retail platforms, and warehouse management software without requiring additional interface adapters or network infrastructure.
• Green Spot Good-Read Feedback: Visual confirmation light provides immediate audible and visual feedback, reducing scanning errors and operator uncertainty—particularly valuable in noisy warehouse or retail environments where audio cues alone may be missed.
• 5-Year Limited Warranty: Datalogic factory-backed warranty coverage supports operational continuity and provides predictable support costs for organizations managing multi-location deployments across retail chains or warehouse networks.

Integration & Compatibility

The QW2520-BKK1 integrates with standard retail POS systems, warehouse management software (WMS), and enterprise inventory platforms via its wired interface options. Keyboard Wedge mode allows use with systems that lack dedicated barcode scanner drivers, simplifying deployment in environments with legacy infrastructure. USB and RS-232 connectivity support direct integration with modern enterprise systems and custom barcode capture workflows. Organizations standardizing on the QuickScan 2500 family benefit from simplified device management, consistent user training across multiple locations, and streamlined spare parts inventory.

Deployment Scenarios

The QW2520-BKK1 is suited for retail point-of-sale checkout stations, warehouse receiving and put-away operations, inventory cycle counting, and light manufacturing assembly or component tracking. Its wired-only design eliminates battery management and charging infrastructure but limits mobility to within cable length of the host device—typically acceptable for fixed checkout lanes and receiving stations. The IP52 rating and drop resistance support both climate-controlled retail floors and rougher warehouse environments, though not outdoor or high-moisture settings requiring IP67 or higher ratings.

Frequently Asked Questions

Q: What's the difference between the QW2520-BKK1 area imager and a laser scanner?

A: Area imagers like the QW2520-BKK1 use a camera sensor to capture an image, making them capable of reading both 1D and 2D codes without moving parts. Laser scanners are typically single-line 1D-only devices with mechanical components prone to alignment drift. Area imagers are generally more durable and versatile for mixed barcode environments but may decode slightly slower on very high-speed conveyor systems.

Q: Is the QW2520-BKK1 suitable for outdoor or high-moisture environments?

A: No. The IP52 rating protects against dust and splash but not direct high-pressure water spray or submersion. For outdoor or wash-down environments, look for IP67-rated scanners or higher. The QW2520-BKK1 is designed for indoor commercial settings such as retail floors, warehouse receiving areas, and climate-controlled facilities.

Q: Can the QW2520-BKK1 read damaged or poorly printed barcodes?

A: The 1 MP area imager handles typical warehouse and retail print-quality variations well, including faded labels and barcodes printed on curved surfaces. However, severely damaged or high-density codes may require higher-resolution imaging. Datalogic's area imager algorithms are optimized for standard retail and logistics barcode formats commonly used in grocery, apparel, and logistics operations.

Q: What's the warranty coverage on the QW2520-BKK1?

A: The QW2520-BKK1 includes a 5-year limited warranty backed by Datalogic factory support. Extended warranties and certified repair services are available through authorized service channels and can provide expedited support for critical retail or warehouse operations.

Q: Does wired-only connectivity limit mobility compared to wireless scanners?

A: Yes. The QW2520-BKK1 is tethered via USB, RS-232, or Keyboard Wedge cable, restricting mobility to the cable length from the host device—typically 3–15 feet. For mobile scanning across a warehouse floor, consider wireless variants in the QuickScan family. Wired connectivity eliminates battery management overhead and is standard for fixed retail checkout stations.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The QW2520-BKK1 represents a mature, field-proven 1D/2D barcode platform for organizations requiring dependable code capture without premium feature overhead. The 1 MP area imager provides sufficient optical resolution for standard retail barcodes, GS1 DataBars, and logistics labels while maintaining the fast decode speeds critical for high-volume checkout lanes and warehouse receiving operations. This is not an exotic device—it's a workhorse designed to handle the everyday scanning demands of retail point-of-sale and warehouse management systems.

Technical Highlights:

• 1 MP Area Imager: Adequate resolution for standard retail and logistics barcode formats; eliminates the cost and mechanical complexity of laser scanners while supporting both 1D and 2D symbologies in a single device.
• 10 Million Trigger Durability: Mechanical switch rated for approximately 5–7 years of typical daily scanning use (roughly 2,700–4,000 scans per day). This directly aligns with the 5-year warranty, reducing premature failure risk in high-throughput retail and warehouse environments.
• IP52 Rating: Dust and splash protection is practical for indoor retail floors and warehouse receiving docks but deliberately omits the cost premium of IP67. The tradeoff: you gain simplicity and price point at the expense of wash-down or outdoor capability.
• 145 g Weight and Compact Form Factor: Reduces operator fatigue during extended scanning sessions typical of retail checkout shifts. A 10–15% weight reduction across a team of 5–10 cashiers translates to measurable reduction in repetitive strain over weeks and months.

Deployment Considerations:

• Wired-Only Connectivity: The QW2520-BKK1 is tethered via USB, RS-232, or Keyboard Wedge. This eliminates battery management and charging overhead but restricts mobility to cable length from the host device. Suitable for fixed checkout stations and warehouse receiving desks; not appropriate for mobile scanning across a warehouse floor. If mobile scanning is a requirement, evaluate wireless variants in the Datalogic catalog.
• IP52 Environmental Limits: Dust and splash resistant, but not rated for high-pressure wash-down, submersion, or outdoor exposed conditions. Verify your deployment environment (temperature swings, humidity, moisture) before purchase. If your facility requires frequent cleaning with water spray or operates outdoors, IP52 will be insufficient.
• Area Imager Decode Performance: The 1 MP sensor handles typical retail and logistics barcode print quality well but may struggle with severely damaged labels, very small codes, or high-density 2D symbologies. Test with your specific barcode mix and print quality before large-scale rollout if you encounter non-standard or legacy code formats.

Position the QW2520-BKK1 for retail point-of-sale checkout operations, warehouse receiving and put-away, inventory cycle counting, and light manufacturing component tracking. This scanner excels in fixed-position, high-volume environments where wired connectivity and modest environmental durability align with real deployment needs. Skip this model if you require mobile scanning, outdoor capability, or IP67 environmental protection—invest in the appropriate specialized variant instead.
