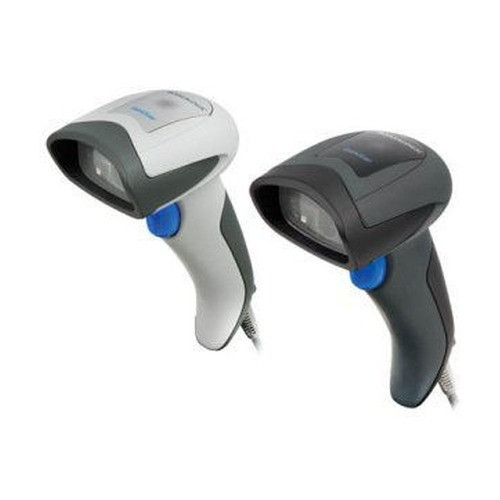

Datalogic QD2220-BKK1S 1D/2D Handheld Area Imager Barcode Scanner
The Datalogic QD2220-BKK1S is a wired handheld barcode scanner built around area imager technology, capturing both 1D linear codes and 2D matrix codes (QR, DataMatrix, PDF417) in a single read. Purpose-built for retail checkouts, warehouse receiving, inventory management, and commercial environments where mixed barcode formats are the norm, this scanner eliminates the workflow friction of switching between linear and 2D readers.
Key Features
- 1D/2D Area Imager Engine: Reads traditional linear barcodes and modern 2D codes without operator intervention or device swaps—critical when your supply chain mixes legacy 1D codes with newer 2D formats, and you need a single tool that handles both reliably.
- IP52 Environmental Protection: Dust and light splash resistance means this scanner survives typical warehouse floors, retail environments, and receiving docks where minor debris and occasional moisture are expected. Not rated for washdown or outdoor rain exposure—if you need IP65 or higher, evaluate a ruggedized outdoor variant.
- Wired USB and RS-232 Connectivity: Dual-mode connectivity eliminates battery dependency and wireless network complexity. Power and data travel over a single cable, ideal for fixed-station scanning and reducing total cost of ownership—no wireless licensing, no battery cycles, no charger infrastructure.
- 141g Lightweight Compact Design (66 × 122 × 119 mm): Reduces hand fatigue during high-volume scanning shifts. The ergonomic grip distributes scan button pressure naturally, supporting operator comfort during 8+ hour warehouse or retail floor shifts where cumulative hand strain directly impacts throughput and error rates.
- Datalogic Green Spot Good-Read Feedback: Visual confirmation on every successful scan eliminates ambiguity for the operator. Reduces training time and scanning errors—operators learn immediately whether a read succeeded, cutting retry cycles and workflow disruption.
- 5-Year Limited Warranty with Factory Support: Datalogic's established service network ensures repair parts and technical support availability across multiple continents, lowering mean time to repair and reducing unplanned downtime in multi-location enterprises.
Integration and Enterprise Deployment
The QD2200 family integrates with leading warehouse management systems (WMS), enterprise resource planning (ERP) platforms, and point-of-sale (POS) systems via standard USB HID (Human Interface Device) or RS-232 serial interfaces. No custom drivers or firmware flashing required—plug the scanner into a Windows, Linux, or macOS system and it presents as a keyboard, eliminating integration complexity across heterogeneous IT environments. Organizations standardizing on the Datalogic QuickScan barcode scanner line benefit from simplified spare parts inventory, unified operator training, and consistent support procedures across multiple locations.
When to Choose a Different Model
If your scanning environment requires IP65+ sealing (heavy washdown, outdoor direct rain), or if you need wireless freedom and extended scanning range, evaluate a more rugged industrial variant or a wireless-enabled scanner in the same family. The QD2220-BKK1S is optimized for tethered, moderate-environment deployments; extreme conditions or mobile requirements demand different engineering trade-offs.
Frequently Asked Questions
Q: Does the QD2220-BKK1S work with standard USB keyboards and KVM switches?
A: Yes. The scanner presents as a USB HID keyboard to your computer or terminal, so it integrates directly into any system that accepts keyboard input without custom drivers or configuration.
Q: What is the maximum scanning distance for 1D and 2D codes?
A: The area imager engine optimizes for close-range scanning (2–30 cm depending on barcode density and code type). It is not designed for long-range or remote barcode capture like laser scanners.
Q: Can the QD2220-BKK1S be wall-mounted or only handheld?
A: The QD2220-BKK1S is designed as a handheld scanner with a grip. Mounting hardware or fixed-base stands are not included; contact the manufacturer or an authorized integrator for any non-standard mounting solutions.
Q: Is the QD2220-BKK1S compatible with Zebra or Honeywell terminal infrastructure?
A: The QD2220-BKK1S communicates via USB HID or RS-232, standard protocols supported by any terminal, mobile computer, or system that accepts barcode input. Compatibility is not limited to a single terminal vendor.
Q: What is the warranty coverage and how do I claim support?
A: The QD2220-BKK1S includes a 5-year limited manufacturer warranty covering defects in material and workmanship. Support and warranty claims are handled through Datalogic's authorized support network.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Datalogic QD2220-BKK1S (often searched as QD2220 BKK1S) is a proven workhorse in mixed-barcode environments where equipment needs to read both legacy 1D and modern 2D codes without operator switching. Area imager technology delivers that dual capability in a single form factor, addressing a real pain point in enterprises managing supply chain code format migration. The wired USB/RS-232 connectivity model eliminates the battery and wireless complexity entirely—a significant advantage in high-uptime scanning stations where infrastructure reliability outweighs mobility.
Technical Highlights:
- 1D/2D Area Imager: Captures linear, QR, DataMatrix, PDF417, and other 2D codes in a single scan without operator mode-switching—eliminates workflow friction and training complexity when your barcode ecosystem is mixed.
- IP52 Sealing: Protects against dust and light splash but does not seal against washdown or sustained moisture exposure. Adequate for retail and warehouse floors; skip this model if you operate in high-humidity, washdown, or outdoor rain environments.
- 141g Lightweight Design: Reduces hand fatigue in high-volume scanning jobs (500+ scans per shift). The compact 66 × 122 × 119 mm form factor fits naturally in the hand and does not introduce cumulative strain on the wrist and forearm during extended shifts.
- Wired Connectivity (USB HID + RS-232): No batteries, no wireless licensing, no network dependency—power and data over a single cable. Total cost of ownership is lower when you eliminate charger infrastructure and wireless support overhead.
Deployment Considerations:
- The QD2220-BKK1S is optimized for fixed-station and tethered handheld scanning. If your operation requires mobile scanning across a large facility or outdoor scanning, a wireless or cordless variant becomes necessary.
- IP52 is sufficient for typical retail and warehouse environments but insufficient for washdown, chemical spray, or heavy rain. Confirm your facility's moisture profile before standardizing on this model across multiple locations.
- Area imagers perform best at close range (2–30 cm). If your barcode placement forces long-distance scanning (>30 cm), a laser scanner or high-resolution imaging variant may deliver better performance.
The QD2220-BKK1S is the right choice for retail POS integration, receiving departments, and warehouse operations where mixed 1D/2D barcode formats are the norm and where power/network reliability is non-negotiable. Its 5-year warranty and established Datalogic support network make it a low-risk standardization platform for multi-location enterprises building out scanning infrastructure.
