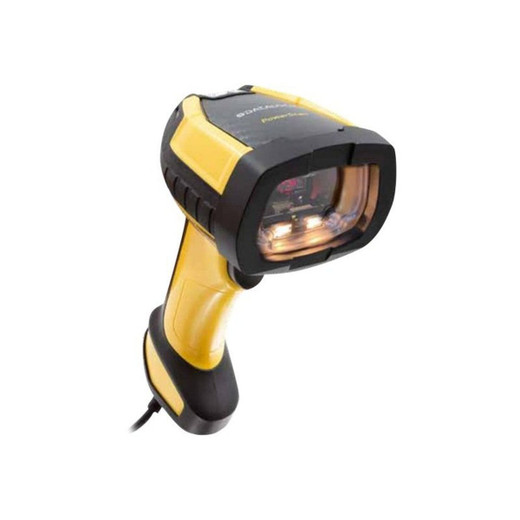

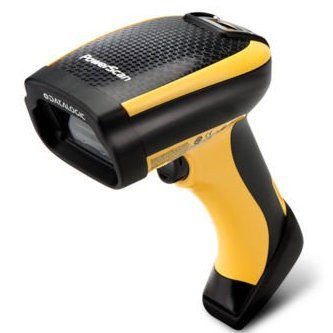

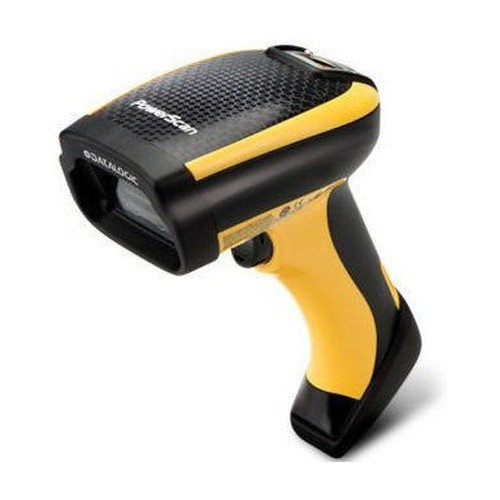

Datalogic PowerScan 9600 PD9630-SRK2 Industrial Barcode Scanner

Datalogic PowerScan 9600 PD9630-SRK2 Industrial Barcode Scanner

The Datalogic PowerScan 9600 Series (PD9630-SRK2) is a rugged industrial-grade handheld barcode scanner engineered for high-demand manufacturing, logistics, transportation, and healthcare environments. Built to withstand harsh operational conditions, this 2D area imager delivers fast, reliable barcode capture with enterprise-grade durability and flexible connectivity options that integrate seamlessly into existing fleet management infrastructure.

Key Features

• 2D area imager with multiple optical configurations for standard, high-performance, and document scanning
• IP65-rated sealing protects against dust and water ingress in demanding environments
• 2.5 m (8.2 ft) drop resistance rated for industrial use and accidental impacts
• Bluetooth 5.0 wireless connectivity with optional STAR 433/910 MHz radio modules
• Multi-interface support: USB, RS-232, Bluetooth, and STAR Radio for legacy and modern systems
• 10 million trigger press durability ensures extended operational lifespan
• Datalogic Green Spot good-read feedback for instant visual confirmation
• Lightweight ergonomic design at 440 g (0.97 lb) reduces operator fatigue
• Compact form factor: 71 x 203 x 107 mm fits naturally in hand or holster
• Wide operating temperature range supports diverse facility environments
• Inductive charging capability on supported models reduces cable wear

Technical Specifications

• Scan Type: 2D Area Imager
• Connectivity: Bluetooth 5.0, USB, RS-232, STAR Radio (433/910 MHz)
• Protection Rating: IP65
• Drop Rating: 2.5 m (8.2 ft)
• Trigger Durability: 10 million presses
• Weight: 440 g (0.97 lb)
• Dimensions: 71 x 203 x 107 mm (2.8 x 8.0 x 4.2 in)
• Warranty: 1-Year Limited

Ideal Applications

The PowerScan 9600 Series excels in manufacturing production lines, warehouse and distribution operations, field service and mobile asset tracking, healthcare inventory management, and retail supply chain operations. Its multi-connectivity architecture supports both wireless mobility and wired integration into fixed workstations.

Karl Wilson

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The PD9630-SRK2 addresses the total cost of ownership challenge in enterprise barcode capture by combining durability, flexibility, and standardization. The 10 million trigger press rating significantly extends device lifespan compared to consumer-grade alternatives, reducing replacement cycles. IP65 sealing eliminates the need for protective enclosures in wet or dusty environments, lowering accessory costs.

Dual wireless options (Bluetooth 5.0 and STAR Radio) allow organizations to deploy a single hardware SKU across facilities with different network infrastructure—critical for companies managing multi-site operations. The three optical configurations enable one platform to handle everything from small package labels to large format documents, reducing device proliferation and simplifying training and spare parts management. The 2.5 m drop rating reflects realistic warehouse conditions where devices frequently fall from waist height, providing confidence in real-world durability without over-engineering.

For fleet managers prioritizing operational uptime and inventory reduction, standardizing on the PowerScan 9600 Series typically delivers faster ROI than managing multiple scanner families.
