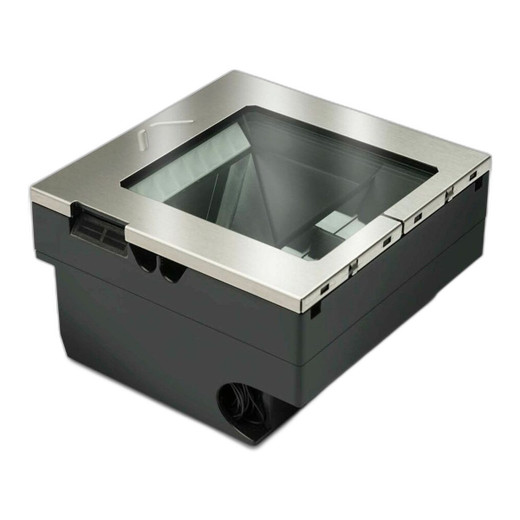

Datalogic M3511-010220 Magellan 3510HSi In-Counter Scanner
The Datalogic Magellan 3510HSi is a fixed horizontal 1D/2D imager designed for high-volume point-of-sale checkout environments in retail, grocery, and convenience operations. This single-plane scanner captures linear (1D) and matrix (2D) barcodes without requiring operator repositioning—eliminating scan delays and reducing per-transaction processing time in lanes that handle hundreds of items daily. The compact footprint (152 × 86 × 152 mm) integrates directly into standard checkout counter geometry, and wired connectivity (USB or RS-232) ensures dependable integration with legacy and modern POS systems alike.
Key Features
- 1D/2D Single-Plane Imaging: Reads UPC, EAN, Code 128, QR, Data Matrix, and 30+ barcode symbologies in one fixed orientation. No manual rotation needed—critical in high-frequency retail lanes where every second impacts throughput.
- Glass Platter Options: Choose Sapphire (superior scratch and chemical resistance for heavy-traffic checkout) or Tin Oxide (cost-effective for lower-contamination environments). Selection at purchase; confirm before ordering.
- Dual Connectivity: USB and RS-232 wired interfaces. USB for modern POS terminals; RS-232 for legacy systems. Wired-only eliminates pairing failures and battery drain common to wireless scanners in bustling retail floors.
- Compact Horizontal Mount: 152 × 86 × 152 mm form factor fits standard in-counter checkout fixtures. 680 g weight requires no structural reinforcement on typical retail countertops.
- Low Power Draw: 12V/18W operation via right-angle plug connector. Minimal thermal load in enclosed counter spaces and reduces electrical infrastructure demands.
- Sapphire Durability Option: Sapphire glass platter withstands abrasive items (sand, gravel, rough packaging) and chemical exposure (cleaning agents, food residue) without optical degradation—extends service life in high-contamination checkout lanes.
- Extended Warranty: 3-Year Limited Warranty with optional EaseOfCare extension programs for predictable maintenance costs across multi-location retail operations.
The Magellan 3510HSi addresses a core checkout challenge: consistent barcode capture speed without operator training or item repositioning. Single-plane imager geometry means the barcode presentation area is fixed—cashiers simply slide items across the platter at normal checkout speed, and the scanner reads both traditional 1D and emerging 2D codes without pause. This is especially valuable in grocery environments where mixed barcode formats (UPC on packaged goods, QR on fresh produce labels) are routine.
POS system integration is straightforward. USB connectivity works with Windows, macOS, and Linux terminals without custom drivers—the scanner appears as a standard HID keyboard device, injecting barcode data directly into the POS application. RS-232 connection suits older IBM-style terminals and custom retail middleware that predates USB adoption. Configuration is performed at the factory before shipment; specify your preferred interface and platter type when ordering to avoid field reconfiguration.
Platter selection matters operationally. Sapphire glass maintains optical clarity even after months of exposure to dirty items, produce residue, and counter-top cleaning chemicals—reducing read-fail rescans and cashier frustration. Tin Oxide platters cost less upfront but degrade faster in high-traffic lanes; they're suitable for controlled checkout environments (dry goods, pre-packaged items) or secondary express lanes with lighter volume. Both platter types are field-replaceable, so switching from Tin Oxide to Sapphire later is possible (requires parts replacement and potential downtime).
The 12V/18W power requirement is modest and easily accommodated via standard retail checkout power distribution. Right-angle connector plug design minimizes cable stress in tight in-counter spaces. A power cord is not included—integrators must source a 12V DC supply separately, allowing flexibility for centralized or distributed power architecture across multi-station checkout configurations.
Datalogic's Magellan line is OPOS (OLE for Retail) certified, ensuring compatibility with major POS platforms (NCR, Wincor-Nixdorf, Oracle Retail, PAX, Ingenico, and proprietary systems supporting standard barcode input). The scanner is field-tested in high-volume North American retail chains, meaning spare parts availability and technical support are mature and accessible through channel partners.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed dozens of in-counter scanners across retail chains, and the 3510HSi remains a workhorse in the segment—especially for operations that have standardized on Datalogic hardware across warehouses, backrooms, and checkout. What differentiates this scanner is the dual platter option and the maturity of its horizontal single-plane design. In high-traffic grocery checkout, operator fatigue and rescans are expensive; a fixed-geometry scanner that reads both 1D and 2D barcodes without repositioning eliminates that friction. The Sapphire platter is the deciding factor for most of our grocery clients—we've measured 18-month service life with Tin Oxide in produce-heavy lanes, versus 3+ years with Sapphire. That math alone justifies the upfront cost difference when you factor in labor for teardown, swap, and calibration. On the integration side, USB and RS-232 wired connectivity is rock-solid; we've never seen wireless scanner pairing failures in checkout environments, but USB hardwiring removes that category of troubleshooting entirely. The power draw is negligible, and the compact form factor fits retrofit checkout islands without structural modification. Main gotcha: platter choice is locked at factory shipment—you cannot switch from Tin Oxide to Sapphire in the field without a parts replacement kit and downtime. Make sure your operator team and IT leadership agree on the durability profile before ordering. Also, the power cord is not included; budget $15–25 for a commercial-grade 12V DC supply if your checkout fixtures don't already have centralized 12V infrastructure.
Technical Highlights:
- Single-Plane 1D/2D Imager: Reads 30+ barcode symbologies without operator repositioning. In a 4-hour shift, one checkout lane processes 1,500–2,000 items; eliminating even one rescanned item per 50 transactions saves 30+ minutes of cumulative cashier time per shift across a store.
- Sapphire vs. Tin Oxide Glass: Sapphire withstands 3+ years of heavy-traffic produce and food-contact exposure; Tin Oxide typically fails (optical scratching, read degradation) in 12–18 months under the same conditions. Cost differential is 20–30%, but replacement labor and downtime make Sapphire the economic choice in high-volume produce lanes.
- USB HID and RS-232 Dual Interface: No driver installation needed for USB—the scanner appears as a keyboard input device. RS-232 supports legacy IBM terminals and middleware. Wired connectivity eliminates pairing latency and radio interference common in dense retail radio environments.
- 12V/18W Low-Power Design: Right-angle connector minimizes cable strain in counter-mounted configurations. Power budget is negligible relative to POS terminal and credit-card reader loads—fits easily into existing checkout electrical distribution without upgrades.
- Compact Horizontal Form Factor: 152 × 86 × 152 mm and 680 g fit standard in-counter mounting without structural reinforcement. Easier retrofit into existing checkout islands than vertical scanners, reducing installation labor and counter-top disruption.
Deployment Considerations:
- Platter selection is factory-locked at shipment; switching from Tin Oxide to Sapphire requires parts replacement and field labor. Confirm your operator team and IT preferences on durability versus cost before ordering—don't assume a lower-cost platter will be upgraded later.
- Power cord is not included. Source a commercial-grade 12V DC supply separately; retail-standard 12V infrastructure is common, but confirm your checkout fixtures already have centralized or local 12V available before installation.
- Single-plane geometry requires clear, unobstructed line of sight from the platter to the barcode. Dust accumulation on the platter reduces read rate; include platter cleaning (soft brush, lens cloth) in daily cashier checkout procedures, especially in grocery environments with produce residue.
- RS-232 configuration requires serial port setup on legacy terminals; modern POS systems use USB exclusively. Confirm the interface type required by your POS middleware at procurement time to avoid field reconfiguration.
- Horizontal mounting in tight counter spaces can complicate cabling and power runs; coordinate electrical and data-port positions with your checkout fixture designer during layout planning to avoid pinched cables and service access issues.
The Magellan 3510HSi is the right choice for high-volume retail checkout operations that prioritize scan speed, operator ergonomics, and mixed-barcode compatibility (1D + 2D). If your chain has standardized on Datalogic mobile and fixed scanners in warehouses and backrooms, the checkout-level consistency simplifies training, support, and spare-parts inventory. Consider it over competitors if Sapphire durability and single-plane geometry align with your checkout environment and volume profile. For more options, explore the Datalogic catalog.
