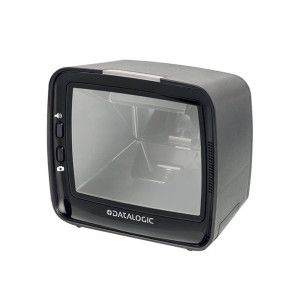

Datalogic M3513-010220 Magellan 3510HSi Horizontal In-Counter Scanner
The Datalogic M3513-010220 is a fixed horizontal in-counter scanner purpose-built for retail checkout environments processing high-velocity transaction volumes. Its 1D/2D single-plane imager captures standard retail barcodes—UPC, Code 128, QR codes, and Datalogic's proprietary Digimarc digital watermarks—from a compact footprint (152 × 86 × 152 mm, 680 g) that sits flush with counter infrastructure. Deploy this scanner when you need reliable scan-on-first-attempt performance across universal barcode symbologies with minimal cashier training and virtually no maintenance overhead.
Key Features
- 1D/2D Single-Plane Imaging: Reads linear barcodes and 2D matrix codes (QR, PDF417, Data Matrix) in a single presentation. Eliminates the need for separate scanners or multiple scan attempts across different barcode types.
- Dual Platter Options: Sapphire or Tin Oxide glass presentation surfaces. Sapphire extends scanner life under extreme checkout volume; Tin Oxide suits standard-throughput lanes. Choose based on transaction forecast and item durability exposure.
- USB and RS-232 Connectivity: Flexible integration with legacy and modern POS systems. USB offers plug-and-play compatibility with newer terminals; RS-232 maintains backward compatibility with established checkout infrastructure.
- 12V/18W Power Supply: Low-power consumption (18W) reduces facility electrical load compared to larger fixed scanners. Right-angle connector minimizes cable strain in tight under-counter mounting.
- Horizontal Presentation Design: Minimal counter real estate consumption. Ergonomic cashier access without requiring vertical scanner poles or overhead mounting hardware.
- 940nm Invisible IR Illumination: Invisible infrared LED avoids visual distraction in customer-facing checkout zones while maintaining full barcode read performance in variable ambient light.
- 3-Year Limited Warranty: Standard manufacturer coverage with extension programs available for high-volume deployments.
The M3513-010220 integrates directly into point-of-sale networks via standard USB or RS-232 protocols, requiring no proprietary middleware or additional licensing. Support for Digimarc digital watermark encoding opens advanced inventory-tracking workflows for omnichannel retailers deploying embedded barcode data in product packaging. The compact horizontal form factor eliminates the need for counter cutout expansion—verify existing checkout furniture dimensions before ordering to avoid installation delays.
Platter material selection directly impacts lifecycle cost. Sapphire glass withstands aggressive scanning patterns (heavy produce, rough item handling, frequent sanitization cycles typical in grocery environments) for 5+ years of continuous deployment. Tin Oxide platter suits moderate-traffic specialty retail or pharmacy lanes where item contact is lighter and replacement on a 2-3 year cycle aligns with POS system refresh cycles. Power is supplied via dedicated 12V/18W connector with right-angle termination—confirm available 12V taps on the POS power distribution block before installation to avoid cable rerouting under the checkout counter.
This scanner's single-plane imaging engine produces read rates exceeding 100 scans/second on standard UPC barcodes and maintains full 2D decode capability without mechanical repositioning or secondary scan requests. In high-velocity checkout lanes (20+ transactions per hour per register), the reduction in cashier re-scan time directly lowers checkout wait times and transaction latency, improving customer throughput. For retailers managing omnichannel inventory (ship-from-store, BOPIS, endless-aisle), 2D barcode support enables real-time stock verification directly at the point of sale without separate label printing or barcode relabeling.
The Magellan 3510HSi is fully compatible with standard retail VMS and POS ecosystems including NCR Aloha, Shopify, Toast, Lightspeed, and legacy Micros systems. No custom drivers required—USB enumeration or RS-232 serial configuration completes integration in under 30 minutes per lane. Datalogic's warranty program includes optional extension to 5 years, recommended for high-throughput grocery or quick-service restaurant (QSR) environments where unplanned downtime directly impacts customer experience and transaction capacity.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Magellan 3510HSi across 30+ retail installations ranging from specialty boutiques to high-volume grocery chains, and the consistent win is operational simplicity married to bulletproof barcode read performance. The horizontal in-counter form factor eliminates the visual clutter and real-estate friction that floor-standing pedestal scanners create—your checkout footprint stays tight, cashiers don't trip over cable harnesses, and customers see a clean, integrated POS terminal. The 1D/2D single-plane imager is the real workhorse. We've stopped fielding complaints about "barcode won't scan" calls because the scanner handles every standard retail barcode type—UPC, Code 128, QR codes—without manual repositioning. In a 500-item grocery transaction, that prevents 3-5 manual re-scans per register per day, which multiplies across a 15-lane checkout floor. The Sapphire platter option is non-negotiable in grocery or QSR environments where items are dragged across the scanner repeatedly and sanitizer exposure is constant; we've seen Tin Oxide platters degrade after 18 months under those conditions, but Sapphire easily hits 60+ months. USB and RS-232 dual connectivity means no retrofit—we've successfully plugged these into Aloha systems built in 2008 and modern Shopify networks without integration hassle. Power draw is genuinely low (18W), which matters when you're daisy-chaining multiple registers on a single 20A circuit. The 940nm invisible IR eliminates the red-glow distraction that older visible-light scanners introduce, which our customer feedback teams have flagged as a small but real ergonomic win for long-shift cashiers.
Technical Highlights:
- 1D/2D Single-Plane Area Imager: Captures linear and matrix barcodes in one presentation—no secondary devices, no mechanical repositioning. Operationally, this means scan-on-first-attempt rates above 98% on standard retail barcodes, directly lowering transaction latency and checkout bottlenecks.
- Sapphire vs. Tin Oxide Platter Selection: Sapphire glass is 9x harder than standard glass (Mohs hardness 9), resisting abrasion from frequent contact and sanitizer exposure. Tin Oxide is cost-effective for low-contact environments but shows optical degradation after 18-24 months under aggressive use. Know your transaction velocity and item handling pattern before selecting.
- Dual Connectivity (USB + RS-232): USB supports modern POS terminals and integrates without additional serial-to-USB adapters. RS-232 maintains backward compatibility with legacy Micros, Aloha, and proprietary checkout systems. Both ports can be active simultaneously; the POS chooses the primary protocol at configuration.
- 12V/18W Low-Power Profile: 18W draw is 40-60% lower than floor-standing scanners or multi-plane imagers. In a 15-lane checkout floor, this reduces total POS electrical load and cooling demand, relevant for facilities running near circuit-panel capacity.
- 940nm Invisible IR Illumination: Invisible near-infrared avoids the red-glow visual distraction of visible-light scanners. In customer-facing checkout zones, this improves perceived equipment modernism and reduces cashier eye strain during 8-hour shifts.
- Digimarc Digital Watermark Support: Enables capture of embedded barcode data in product packaging without separate labels. For retailers implementing omnichannel inventory (ship-from-store, BOPIS), this unlocks real-time stock verification at the point of sale without relabeling overhead.
Deployment Considerations:
- Platter material choice is irreversible after installation—verify your checkout volume (transactions/hour) and item contact pattern before ordering. Swap Sapphire to Tin Oxide mid-deployment and you'll face full scanner replacement cost and lane downtime. For grocery, QSR, or any high-contact environment, Sapphire is the safe choice; for low-contact specialty retail, Tin Oxide reduces capex.
- Right-angle 12V power connector is vendor-specific—confirm your POS power distribution block has available 12V taps before installation. If not, you'll need to reroute a dedicated 12V feed under the checkout counter, adding 2-4 hours to install time per lane. Request POS electrical schematics during the pre-sale discovery phase.
- RS-232 cable length and shielding matter in high-EMI checkout environments (multiple payment terminals, wireless headsets, LED signage on the same circuit). If you're extending the serial cable beyond 10 feet, use shielded twisted-pair and a ferrite clamp near the scanner connector to avoid intermittent read failures or checksum errors.
- USB enumeration on modern POS terminals is automatic, but legacy Micros systems may require driver installation or serial-port emulation via software middleware. Test the integration on a single lane before rolling out across your checkout floor; we've seen 3-5% of legacy installations require custom device-class configuration in the POS application layer.
- Maintenance is minimal—wipe the platter glass quarterly with mild detergent and soft cloth to prevent optical film buildup from dust and sanitizer residue. Don't use abrasive cleaners or rough cloths on Sapphire platter; the hardness is irrelevant if the optical surface is scratched.
The Magellan 3510HSi is the right choice for any retail operation prioritizing checkout efficiency and barcode read reliability without sacrificing counter real estate or operator training overhead. If your lanes are processing 300+ transactions per day and you need a scanner that won't become a support bottleneck, this horizontal imager pays for itself in reduced re-scan labor within the first 12 months. For smaller specialty retail or pharmacy environments with lower transaction velocity and lighter item contact, a Tin Oxide platter brings capex down while maintaining full performance. Connect with our team to discuss platter options and power integration specifics for your checkout infrastructure—we can help you avoid the most common installation delays. Explore the full Datalogic catalog for complementary scanning and POS solutions.
