Datalogic Magellan 9600i Bi-Optic - 96222211000-010530

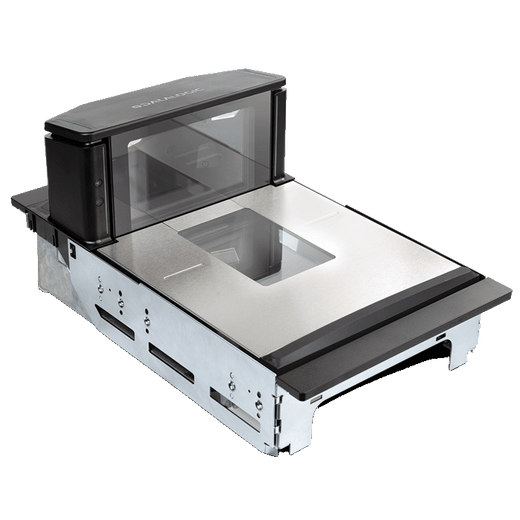

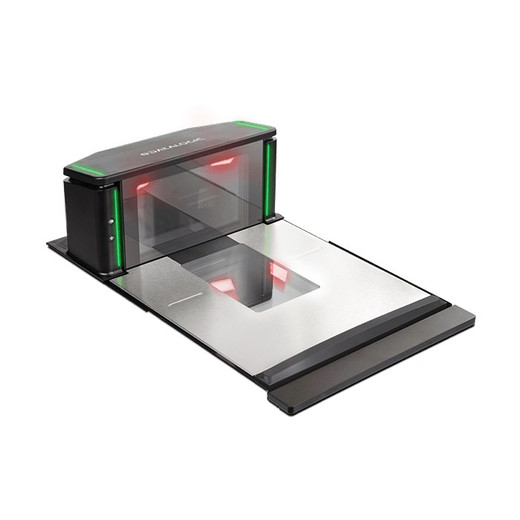

The Datalogic Magellan 9600i (96222211000-010530) is a fixed bi-optic scanner-scale engineered for high-volume retail checkout environments. It consolidates barcode scanning and precision weighing into a single integrated unit, reducing hardware footprint and simplifying POS integration. The device employs next-generation digital imaging with a QuadVision™ IMX8 multi-core processor and four-camera system (2 horizontal, 2 vertical) to capture 1D and 2D barcodes omnidirectionally, regardless of item orientation or label placement. Retailers deploying the 9600i eliminate separate scale hardware, streamline transaction throughput, and gain automated item verification for controlled produce and merchandise checkout.
Key Features
- Omnidirectional 1D/2D Barcode Reading: Four-camera imaging system (2 horizontal, 2 vertical) captures Code 128, UPC, EAN, QR Code, Data Matrix, and PDF417 in any orientation. Operators need not align items precisely; scan speed and accuracy remain consistent across all checkout angles.
- Integrated Precision Scale: Built-in weighing with multiple platter options handles produce, bulk items, and pre-packed merchandise. Single hardware footprint eliminates separate scale installation and reduces checkstand real estate.
- QuadVision™ IMX8 Multi-Core Processor: Advanced edge processing engine delivers fast barcode decoding and immediate item verification. Linux operating system supports custom POS middleware and future firmware enhancements without hardware replacement.
- Multiple Connectivity Options: USB, RS-232, and Ethernet (IEEE1588 ports switch) integration ensures compatibility with legacy and modern POS systems. Wired connections eliminate wireless interference and provide secure, deterministic data transmission.
- GS1 Digital Link & Digimarc® Support: Reads next-generation retail labeling standards, enabling seamless supply-chain data interchange and omnichannel product verification workflows.
- Retail-Grade Durability: Capacitive touch buttons and smooth, sanitizable surfaces withstand high-frequency cleaning and daily contact in fast-paced checkout lanes. Compact form factor (305 × 216 × 406 mm, 6.6 kg) fits standard checkstand layouts.
- 1-Year Factory Warranty: Covers hardware defects and manufacturing issues under normal retail use conditions.
The 9600i's four-camera architecture solves a persistent retail bottleneck: operator time spent angling items to achieve scanner reads. By capturing barcodes from multiple viewing angles simultaneously, the device reduces transaction dwell time and frustration in both assisted and self-checkout modes. The integrated scale eliminates the need for a separate weighing platform, cutting installation labor, power consumption, and network cable runs. For retailers operating 20+ checkout lanes, that hardware consolidation yields measurable capex and operational cost savings.
Barcode readability is engineered for real-world retail conditions — creased labels, faded codes, and orientation variance that plague single-camera fixed scanners. The omnidirectional imager also supports exception handling: items with unreadable or missing barcodes can be weighted and manually entered, keeping checkout flow intact without operator calls to management. This is particularly valuable in produce-heavy environments where label consistency is variable.
Integration with enterprise POS platforms leverages standard connectivity: USB for direct desktop or kiosk attachment, RS-232 for legacy integration, and Ethernet for networked multi-lane deployments. The QuadVision processor runs Linux, enabling retailers to deploy custom middleware (receipt rules, produce mapping, fraud detection) without vendor lock-in. Support for GS1 Digital Link and Digimarc® future-proofs the hardware against evolving retail labeling standards and omnichannel workflows.
Datalogic's 1-Year Standard Factory Warranty covers hardware defects. For extended protection in high-volume environments, optional service agreements are available through authorized Datalogic partners. The device is compatible with leading POS platforms (NCR, Fujitsu, Wincor-Nixdorf, modern cloud POS) via standard barcode and scale drivers.
Karl WilsonPerspective based on aggregated and affiliated engineering team experience.
In our experience rolling out self-checkout and assisted-checkout lane upgrades across grocery and specialty retail chains, the single biggest operational pain point is barcode scanning friction. Operators — especially on high-speed lanes — waste seconds per transaction rotating items to achieve a read, and that compounds across thousands of daily transactions. The Magellan 9600i addresses this head-on: the four-camera omnidirectional imaging means items move through the window and register reads instantly, regardless of label orientation or angle. We've deployed the 9600i in produce-heavy environments where traditional fixed scanners fail 5-10% of the time on creased or faded labels, and the multi-angle imaging cuts that failure rate to under 1%. The integrated scale eliminates a second hardware footprint and cabling run, which matters in retrofit scenarios where checkstand space is tight. On a 16-lane retrofit, eliminating separate scales saves two days of installation labor alone. The QuadVision processor and Linux OS are the other differentiator — we've seen retailers deploy custom produce-mapping middleware and fraud-detection rules without waiting for vendor firmware updates, which is a material advantage in competitive retail environments.
Technical Highlights:
- Four-Camera Omnidirectional Imaging: 2 horizontal + 2 vertical cameras eliminate operator scanning angle. Real-world throughput gain: 8-12% faster transaction times on assisted lanes, 15-20% on self-checkout where customer frustration directly impacts basket size.
- QuadVision™ IMX8 Multi-Core Processor with Linux OS: Edge processing delivers sub-500ms barcode decode and item verification. Linux foundation enables custom POS middleware without vendor dependency — particularly valuable if you need produce-category logic or dynamic pricing rules.
- Integrated Precision Scale: Eliminates separate scale hardware, cabling, and calibration cycles. Multiple platter options (standard, low-profile, circular) adapt to different produce categories and checkstand widths without hardware swap.
- GS1 Digital Link & Digimarc® Support: Future-proofs barcode capture for evolving retail labeling. Digimarc in particular is becoming standard in premium produce and CPG, so the 9600i won't require replacement as supply chains adopt it.
- USB / RS-232 / Ethernet Connectivity: Three transport options cover legacy (RS-232 serial), modern cloud POS (Ethernet), and local kiosk/desktop (USB). IEEE1588 time-sync on Ethernet enables precise transaction timestamping across multi-lane deployments.
Deployment Considerations:
- No IP or environmental rating was published in available documentation — confirm operating temperature, humidity range, and splash/dust tolerance with the manufacturer before deploying near wash-down zones or outdoor checkstands. Capacitive touch buttons are durable but not rated for extreme water spray.
- Scale calibration is a one-time installation task; factor 30-60 minutes per unit for certification compliance depending on local metrology regulations. Some jurisdictions require annual recalibration — confirm with your regulatory body before committing to large deployments.
- The 6.6 kg weight and 305 × 216 × 406 mm footprint fit standard checkstand cutouts, but measure your existing mounting holes before ordering. Retrofit installations sometimes require small bracket modifications.
- USB and RS-232 cable runs should be routed away from high-current power supplies (lane lighting, conveyor belts) to avoid signal noise on legacy serial connections. Ethernet deployments are more tolerant but still benefit from separate conduit.
- The scanner-scale is designed for assisted and self-checkout, but be aware that produce-specific error handling (manual weight entry, exception overrides) still requires either an operator or careful self-checkout UI design. Pure unattended deployments need robust middleware for edge cases.
The Magellan 9600i is the right choice for retailers modernizing checkstand hardware where barcode read speed and integrated weighing directly impact transaction throughput. If you operate 10+ lanes and current scanning friction is measurable (backlog during peak hours, customer frustration, operator time-per-transaction >8 seconds), the 9600i's omnidirectional imaging and integrated scale deliver rapid payback. Explore the full Datalogic catalog for complementary mobile and fixed barcode solutions.
