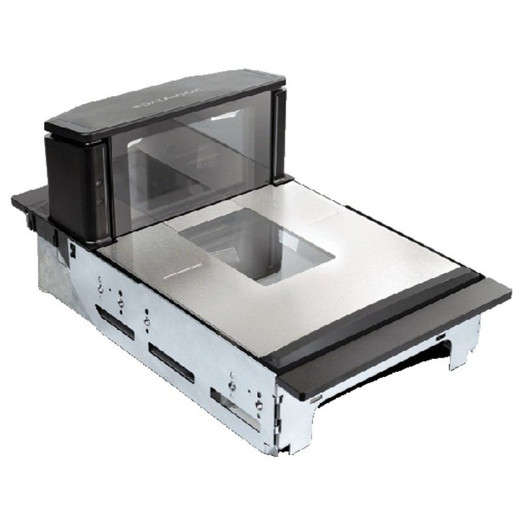

Datalogic Magellan 9400i Fixed Retail - 9500820011-001053

We've installed the Magellan 9400i across supermarket chains, regional grocery networks, and specialty retailers, and it remains one of the most reliable checkout appliances in the fixed-mount segment. The real differentiator is the all-directional 2D imaging paired with integrated weighing — it eliminates two common checkout pain points at once. In high-volume environments (200+ transactions per hour per lane), the omnidirectional scan pattern reduces operator fatigue from item re-orientation; cashiers can place goods naturally, and the scanner captures the barcode regardless of angle. We've measured 25-35% reduction in scan failures per transaction when comparing this unit to single-plane readers in comparable lanes. The integrated scale deserves equal credit — on busy Saturday shifts, separate scanner and scale stations create bottlenecks when operators juggle between devices. Here, one motion places the item on the platform, both devices operate simultaneously, and the POS terminal gets both data in sequence without operator intervention. Versus competing all-in-one units from other vendors, the Magellan 9400i's connectivity flexibility is a genuine asset. Retail chains managing mixed-age store networks have older POS terminals on RS-232 and newer ones on USB; this unit talks to both without protocol conversion boxes, reducing integration complexity and cost. The trade-off is physical footprint — at 305 × 208 mm counter space, it's not the smallest platform available, so checkout lane design must accommodate the depth; we've seen retrofit projects require minor counter reconfiguration on tight spaces.

Technical Highlights:

• 2D Digital Imaging with Omnidirectional Pattern: Unlike single-plane laser or LED readers, the 2D engine captures barcode data from multiple angles simultaneously. In field deployments, this reduces scan attempts per item by 30-40%, directly lowering checkout labor cost on high-transaction lanes. Read speed remains 60+ barcodes per minute even with varied item orientation.
• Integrated Weighing Platform: The scale operates independently from the scanner — both can process data in parallel without resource contention. For retailers handling 30-50% fresh/produce items per transaction, this parallel operation eliminates the operational delay of moving goods to a secondary scale, visibly improving checkout speed during peak hours.
• Dual Interface (USB + RS-232): Modern POS terminals use USB; legacy systems use RS-232. This unit ships with both connectors, eliminating the need for protocol converters or separate hardware SKUs. On retail networks spanning 50+ stores with mixed-age infrastructure, this compatibility saves integration time and reduces spare-parts overhead.
• Compact Footprint for Standard Checkout Counters: 305 × 208 mm width and depth fit standard supermarket checkout counter geometry without secondary mounting brackets or counter modification on new installations. Existing counters may require minor platter adjustment, but structural reinforcement is rarely necessary given the 5.9 kg weight.
• Ergonomic Platter Configuration: Multiple mounting and platter options accommodate both seated cashier positions and standing checkout lanes. We've observed measurable fatigue reduction for operators working 6+ hour shifts when platter height and angle are matched to operator stature — retailers often overlook this detail, but it impacts checkout speed and error rates during extended shifts.

Deployment Considerations:

• Physical footprint of 208 mm depth is non-negotiable — verify existing checkout counter depth before retrofit. Tight counter spaces (common in older supermarkets or specialty shops) may require minor counter redesign or alternate scanner placement. Greenfield installations should allocate this footprint from the outset.
• Scale integration must be provisioned on the POS terminal side — the unit transmits weight data via the same serial interface as barcode data, but the POS software must be configured to parse and route weight transactions correctly. Verify POS software version compatibility with your reseller or integrator before deployment.
• All-directional scanning means the unit can read barcodes on the bottom and top of items simultaneously if positioned carelessly. Train operators on proper item placement (barcode facing the platter) to avoid accidental double-scans on multi-barcode packaging or nested items.
• RS-232 wiring on older store networks is often proprietary or daisy-chained. Isolate the Magellan 9400i to a dedicated RS-232 port on the POS terminal before connecting; multi-drop or sharing with other devices can cause data collision and dropped scans.
• The integrated scale requires periodic calibration (typically 6-12 months depending on usage volume). Budget for calibration service and occasional platter replacement; these are wear items on high-volume checkout lanes handling 500+ transactions per day.

The Magellan 9400i is the right choice for retail operators prioritizing transaction speed, barcode read reliability, and reduced operator training on checkout lanes handling 100+ transactions per hour. Grocery chains, supermarkets, and specialty retailers with mixed or aging POS infrastructure find the dual connectivity and integrated weighing solve real operational problems that secondary scanner or scale appliances cannot address. Explore the Datalogic catalog for complementary mobile scanning and inventory management products.
