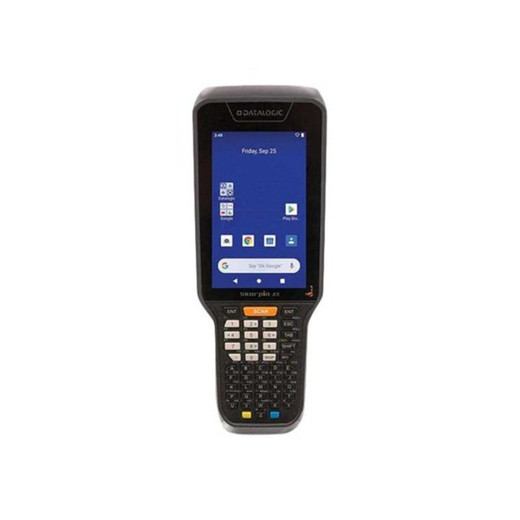

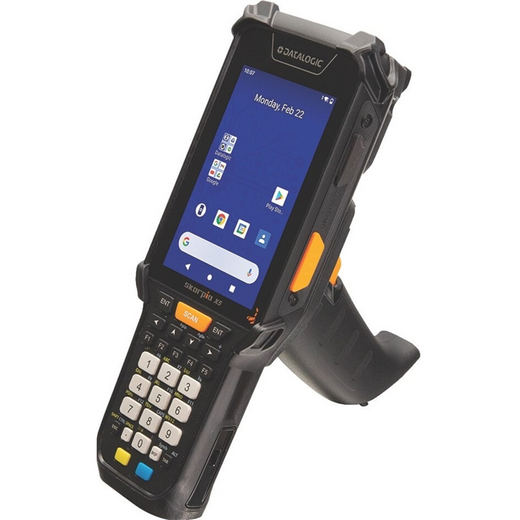

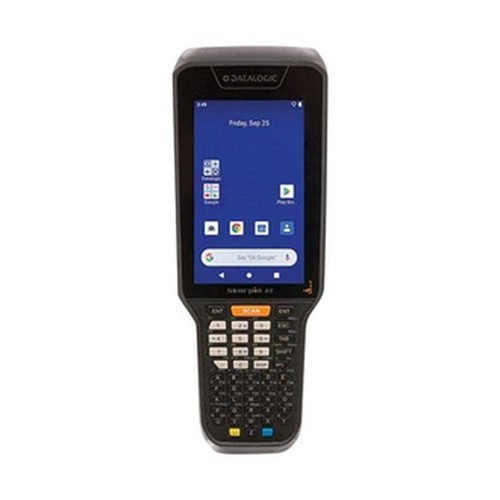

Datalogic 943500031 Skorpio X5 Handheld Mobile Computer
The Datalogic 943500031 is an enterprise-grade rugged handheld mobile computer engineered for warehouse, retail, and logistics environments where durability and throughput directly drive operating margins. The Skorpio X5 combines a 4.3-inch WVGA touchscreen, Qualcomm SDA660 octa-core processor running at 2.3 GHz, and IP65 sealing in a pistol-grip form factor designed for one-handed operation during picking cycles and inventory counts.
Key Features
- 4.3-inch WVGA Display (800 x 480): Gorilla Glass 3 protection shields the touchscreen from scratches and minor impacts during shift work. Screen size balances data density against operability — large enough for barcode details and inventory grids, compact enough to use with one hand in tight aisles or high shelves.
- Qualcomm SDA660 Octa-Core Processor at 2.3 GHz: Eight-core architecture handles barcode scanning, real-time database queries, and background app synchronization without frame loss or UI lag. Multi-core design also distributes thermal load, critical during 8–12 hour shifts in temperature-controlled warehouses.
- 3–4 GB RAM, 32–64 GB Flash Storage: Sufficient memory for running multiple logistics apps simultaneously (warehouse management system, RF client, voice picking module) without throttling. Expandable storage via microSD accommodates application updates and cached inventory datasets without cloud dependency.
- Android 10 with Google Mobile Services (GMS): Access to enterprise-grade applications through Google Play ecosystem. Reduces training overhead — users familiar with Android on consumer devices transfer skills immediately. Vendor updates and security patches follow Google's calendar.
- IP65 Ingress Protection, 1.8 m (6 ft) Drop Rating onto Concrete: IP65 means dust cannot infiltrate the device and water jets won't cause failure — essential in wet dock areas, cold storage facilities, and outdoor cross-dock operations. The 6-foot drop tolerance absorbs falls from shelf height or cart drops; abuse below that threshold is normal in high-volume environments and should not trigger early replacement.
- Hot-Swappable 6,200 mAh Battery: Eliminates shift handoff downtime — operators swap batteries without powering down or losing session state. Charge cycles extend across a standard 8-hour shift; hot-swap design ensures a fully-charged unit is available within seconds if battery depletion occurs unexpectedly.
- Wi-Fi 802.11a/b/g/n/ac, Bluetooth 5.0, NFC, USB Connectivity: 802.11ac delivers throughput suitable for real-time barcode upload and inventory syncs across large warehouse floors. Bluetooth 5.0 improves pairing stability with scanners, printers, and asset tags. NFC enables checkpoint-based location tracking in some logistics workflows.
- Operating Temperature Range -20°C to 50°C (-4°F to 122°F): Deployed in cold storage (-20°C) without degraded performance or battery cutoff. Same device migrates between frozen sections and ambient dock areas without requiring seasonal swaps.
- 488 g (1.08 lbs) Ergonomic Pistol-Grip Design: Weight is low enough for extended hand-held operation; pistol grip distributes force away from wrist fatigue during repetitive scan-and-move cycles. Grip angle tilts the screen for natural line-of-sight barcode reading without arm rotation.
Integration & Compatibility
The Skorpio X5 runs Android 10 with GMS, enabling integration with popular enterprise mobility management (EMM) platforms, barcode scanning SDKs, and inventory databases. Datalogic-specific barcode imaging libraries and device management tools (Datalogic Enterprise Library) simplify deployment at scale. Standard ONVIF-compatible Wi-Fi connectivity integrates with most enterprise access points; no proprietary wireless infrastructure required.
Deployment Scenarios
- Warehouse Picking & Putaway: Operators use the 943500031 to scan location barcodes and item labels, verify pick accuracy, and move inventory. Hot-swap battery design eliminates mid-shift charging delays.
- Cold Chain & Temperature-Sensitive Logistics: Operating range extends into deep-freeze environments where consumer-grade mobile devices fail. Device remains functional during load verification and shipment documentation in sub-zero conditions.
- Last-Mile Delivery Confirmation: Compact form factor and touch interface support signature capture and proof-of-delivery workflows. IP65 rating handles incidental rain exposure during outdoor stops.
- Cross-Docking & Transshipment Centers: High-throughput operations benefit from the octa-core responsiveness and multi-app capability; operators run WMS client, voice module, and compliance logging concurrently without stalls.
Frequently Asked Questions
Q: What is the warranty on the Datalogic 943500031?
A: A 1-year limited warranty is included with factory support through Datalogic. Extended warranty options are available through authorized service partners.
Q: Does the 943500031 support barcode scanning without an external scanner?
A: The Skorpio X5 is designed to pair with external barcode scanners via Bluetooth 5.0 or USB. It does not include a built-in barcode imager; compatibility depends on your chosen external scanner model and Datalogic imaging libraries.
Q: Can the 943500031 operate in freezer environments?
A: Yes. The operating temperature range extends to -20°C (-4°F), allowing deployment in frozen warehouse sections without performance degradation or battery shutdown.
Q: How long does a single battery charge last?
A: The 6,200 mAh battery supports a full 8-hour shift under typical warehouse workloads (scanning, Wi-Fi syncing, screen activity). Actual runtime depends on network congestion, application CPU load, and screen brightness.
Q: Is the 943500031 compatible with Milestone or other third-party VMS platforms?
A: The Skorpio X5 is a mobile computer, not a camera or NVR, and does not integrate directly with video management systems. It is designed for inventory, logistics, and asset-tracking workflows that run independently of VMS infrastructure.
Q: What happens if the device is dropped from greater than 1.8 meters?
A: Drops beyond 6 feet (1.8 m) onto concrete may cause internal component failure, display cracking, or casing fracture. The 1.8 m rating is a design tolerance, not a guarantee of survival beyond that height. Impacts from shelf height or accidental cart drops are the expected use case.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Datalogic 943500031 Skorpio X5 is purpose-built for operations where a mobile computer must survive a full shift in harsh environments without becoming a cost liability. The combination of IP65 sealing, 1.8 m drop tolerance, and hot-swappable 6,200 mAh battery architecture directly reduces total cost of ownership — fewer replacement units, fewer mid-shift charging delays, and lower warranty claims downstream.
Technical Highlights:
- Octa-Core SDA660 @ 2.3 GHz: Eight processing cores enable barcode scanning, real-time database queries, and app switching without lag. Multi-core architecture also distributes thermal load during extended shifts, preventing CPU throttling in temperature-controlled warehouses.
- 6,200 mAh Hot-Swappable Battery: Eliminates mid-shift downtime — operators swap a fully charged unit in under 30 seconds without losing app state or dropping network connection. One of the few mobile computers that accommodate this workflow at scale.
- IP65 + 1.8 m Drop Rating: Dust ingress is ruled out; water jets from dock washdowns or freezer spray won't kill the device. The 6-foot drop tolerance absorbs normal shelf-height falls — incidents that would ground a consumer tablet for months.
- Android 10 with GMS: Familiar app ecosystem reduces operator training overhead. Datalogic Enterprise Library and third-party logistics SDKs integrate without custom ROM or carrier delays.
Deployment Considerations:
- The Skorpio X5 does not include a built-in barcode imager — external Bluetooth or USB scanners are required. Factor scanner cost and pairing overhead into your total device cost.
- The 4.3-inch WVGA display offers modest pixel density. Data-heavy applications (large inventory grids, multi-page forms) may require scrolling; test with your production WMS interface before deployment.
- Freezer deployment (-20°C) is fully supported, but battery performance degrades slightly in extended sub-zero exposure — expect 10–15% runtime reduction in frozen storage sections.
Position the 943500031 for large-scale warehouse, retail, and cold-chain operations where device replacement rates and downtime directly impact labor costs. For organizations already invested in Datalogic infrastructure (imaging libraries, device management platforms), the Skorpio X5 integrates seamlessly and minimizes retraining. Not the choice for light-duty or indoor-only environments where consumer ruggedness would suffice — this device is engineered for abuse.
