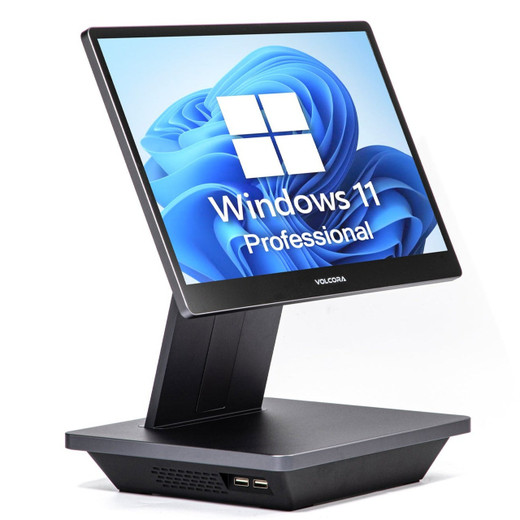

PioneerPOS KC8FMF0M003Z CYP PCAP i3 Touchscreen Terminal
Overview
The PioneerPOS KC8FMF0M003Z is a wall-mountable PCAP (projected capacitive) touchscreen terminal built on Intel i3 processor architecture with 8GB RAM and 120GB SSD storage. Running Windows 11 Pro with integrated TPM 2.0 and WiFi connectivity, this unit addresses retail and hospitality deployments where a compact, touch-enabled endpoint handles POS transactions, transaction logging, or system integration tasks without dedicated desktop footprint. The 120SD designation indicates 120GB solid-state storage paired with the specified processor tier — sized for operating-system overhead plus application data, not high-volume media capture.
Compatibility
The KC8FMF0M003Z integrates into Windows 11 Pro environments via standard USB, Ethernet, and WiFi interfaces. PCAP touch input works with any Windows 11 Pro-native application or third-party POS software that accepts standard HID (Human Interface Device) input. TPM 2.0 enables BitLocker encryption and domain-joined security policies required in enterprise retail networks. WiFi capability supports 802.11 standards-based roaming where wired PoE or hardline power is unavailable — though wall-mount installations typically include permanent AC supply. No specific vendor POS software lock-in; the terminal operates as a general-purpose Windows endpoint.
Installation Notes
Wall-mount bracket hardware is included. Verify adequate AC power supply at the planned location — the i3 processor under full load plus PCAP touchscreen backlight typically draws 30–45W depending on display brightness and active workload. Ensure TPM 2.0 is enabled in BIOS if cryptographic operations (BitLocker, secure boot) are required. WiFi performance degrades in high-interference retail environments (metal shelving, dense radio traffic) — hardline Ethernet is preferred where available. Windows 11 Pro licensing is pre-installed; confirm your organization's software assurance or license transfer requirements before deployment.
What's in the Box
- 1x PioneerPOS KC8FMF0M003Z CYP PCAP touchscreen terminal
- 1x wall-mount bracket assembly
- 1x AC power cable
- Documentation and warranty information
