Vertiv FSC3N002 Facility Side Cable 30A 208V Delta for Universal PDU
Overview

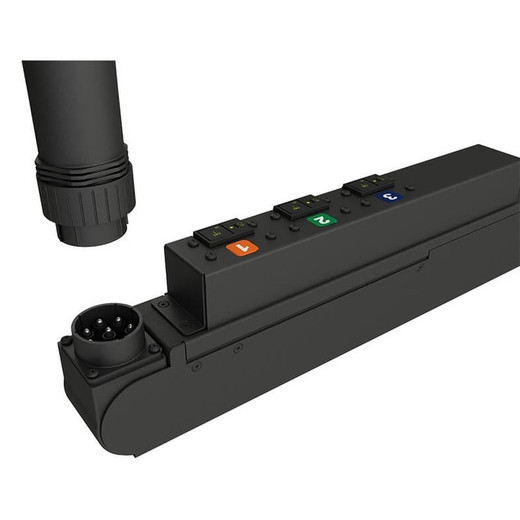

The Vertiv FSC3N002 (model CSN-S02A8-03000-3TL15A-S) is a Facility Side Cable designed to connect a local power circuit directly to the Vertiv Geist Universal Power Distribution Unit (UPDU). Rather than stocking separate PDU models for every data center power topology, the UPDU + FSC architecture lets you deploy a single PDU platform globally and swap only the input cable to match whatever's on the floor — 208V three-phase delta in this case. The FSC3N002 handles a 30A circuit at 200–240V Delta, rated to 8.6kW at 208V, with a 10ft / 3m cord terminated in a NEMA L15-30P twistlock plug on the facility end and a proprietary Universal Connector on the UPDU end. If you're building or expanding a data center rack environment on 208V three-phase delta feeds, this cable is the adapter that makes the UPDU viable without a custom power build. Explore the full Vertiv power infrastructure catalog for compatible UPDUs and accessories.
Key Features
- 30A / 8.6kW at 208V Delta: Sized for high-density rack rows where a single circuit needs to feed a full UPDU. At 8.6kW, you have headroom for fully loaded 2–4kW server racks without riding the breaker limit on every PDU input.
- NEMA L15-30P Twistlock Plug: The L15-30P is a three-phase 250V 30A locking plug — standard on 208V delta panels in North American data centers. Twist-lock retention means vibration and incidental contact won't unseat the connection in a live rack environment.
- Universal Connector Output: The UPDU-side connector is Vertiv's proprietary universal interface, meaning this FSC mates only with the Vertiv Geist UPDU. That's a deliberate design choice — the UPDU handles all receptacle distribution, so you're never modifying the PDU itself to change input power specs.
- 10/4 Wire Gauge, 10ft Cord: The 10 AWG four-conductor cable is rated for the full 30A load at length. A 10ft / 3m run gives enough slack to reach overhead cable trays or under-floor panels in standard aisle configurations without an extension or conduit run.
- 200–240V Delta Input Range: Accepts the full delta voltage band, not just 208V nominal, so it tolerates the ±5–10% utility variance common in industrial and co-location facilities without derating.
- TAA Compliant + Buy American Act (COTS): Manufactured in the USA. For federal, DoD, or government-contractor deployments where TAA compliance is a procurement requirement, this cable clears the bar — browse TAA-compliant power distribution options across the catalog.
- UL & c-UL Listed (62368-1), RoHS Compliant: UL 62368-1 is the current audio/video and IT equipment safety standard — relevant for data center equipment procurement in both US and Canadian facilities. RoHS compliance satisfies environmental requirements for EU and sustainability-conscious enterprise buyers.
- 100% Factory Tested: Every unit is individually tested for functionality before shipment — not sampled, not batch-tested. For infrastructure components where a wiring defect means a rack going dark, that's a meaningful QA step.
- 5-Year Limited Warranty: Vertiv backs the FSC3N002 with a 5-year limited warranty — longer than the typical 1–3 years on passive power accessories. For data center infrastructure planned to run 7–10 years, that warranty coverage reduces lifecycle risk on the input cable.
Integration & Compatibility
The FSC3N002 is purpose-built for the Vertiv Geist UPDU (Universal Power Distribution Unit) platform — it will not function as a general-purpose power cord. The UPDU is sold separately. The UPDU accepts the FSC universal connector as its sole input interface, so selecting the right FSC model for your facility's circuit type (voltage, phase, current, plug type) is the critical configuration step before deployment. For 208V delta three-phase 30A feeds terminated at L15-30P receptacles, the FSC3N002 is the correct match. If your facility runs single-phase 120V or 240V, or a different amperage, a different FSC model is required — Vertiv offers configurations from 16A to 60A across 120V to 415V. Consult your data center power planning resources to confirm circuit type before ordering.
Frequently Asked Questions
Q: What PDU is the FSC3N002 designed to connect to?
A: The FSC3N002 is designed exclusively for the Vertiv Geist Universal Power Distribution Unit (UPDU). It uses a proprietary Universal Connector on the PDU side and will not mate with standard PDU inlets or third-party equipment. The UPDU is sold separately.
Q: What facility-side plug does the FSC3N002 use?
A: It uses a NEMA L15-30P twistlock plug, which is a three-phase 250V 30A locking connector. This is standard on 208V delta three-phase circuits in North American data centers and co-location facilities.
Q: Is the FSC3N002 TAA compliant?
A: Yes. The FSC3N002 is manufactured in the USA and is both TAA Compliant and Buy American Act COTS Compliant, making it eligible for federal and government-contractor procurement programs.
Q: What is the warranty on the FSC3N002?
A: Vertiv provides a 5-year limited warranty on the FSC3N002.
Q: Can the FSC3N002 be used with any 208V three-phase PDU?
A: No. The UPDU-side output uses Vertiv's proprietary Universal Connector, which only mates with the Vertiv Geist UPDU. It cannot be used as a general-purpose power cord or with other PDU brands.
Q: What safety certifications does the FSC3N002 carry?
A: The FSC3N002 is UL and c-UL Listed under the 62368-1 standard (applicable in both the US and Canada) and is RoHS Compliant.
The FSC3N002 is the piece of the Vertiv UPDU architecture that most people underestimate until they're standing in front of a rack at commissioning. The 10/4 AWG wire gauge here is load-rated for the full 30A continuous draw — not derated to 80% like some power accessories — and the 8.6kW capacity at 208V gives you genuine headroom on a dense rack row. If you're deploying the Vertiv Geist UPDU in a facility with 208V delta three-phase circuits, this is the FSC to specify.
Technical Highlights:
- 30A / 8.6kW at 208V: Sized for high-density rows — at 8.6kW input capacity, a single FSC3N002-equipped UPDU can serve multiple 2kW+ servers without hitting thermal limits on the cable or plug.
- L15-30P Twistlock: The locking plug isn't just a code requirement — in raised-floor environments with cable management traffic, a non-locking plug on a live 30A circuit is a real risk. The L15-30P eliminates accidental disconnection.
- 5-Year Limited Warranty: Passive power cables rarely carry multi-year warranties. The 5-year coverage on this FSC aligns with typical data center refresh cycles, reducing the risk of out-of-warranty failures on a component you can't easily hot-swap mid-deployment.
Deployment Considerations:
- Confirm your facility panel has L15-30P receptacles before ordering — this plug is specific to 208V delta three-phase 30A circuits. If your panels are terminated differently (e.g., L21-30 for wye configurations), a different FSC model is required.
- The UPDU-side Universal Connector is proprietary to Vertiv — this cable has no value outside the Geist UPDU ecosystem. Budget for the UPDU separately; the FSC3N002 ships without it.
Best fit for co-location deployments and enterprise data centers running 208V delta three-phase distribution where the UPDU platform is already standardized across rack rows — the FSC3N002 is the input config that locks in that standard without touching the PDU itself.
