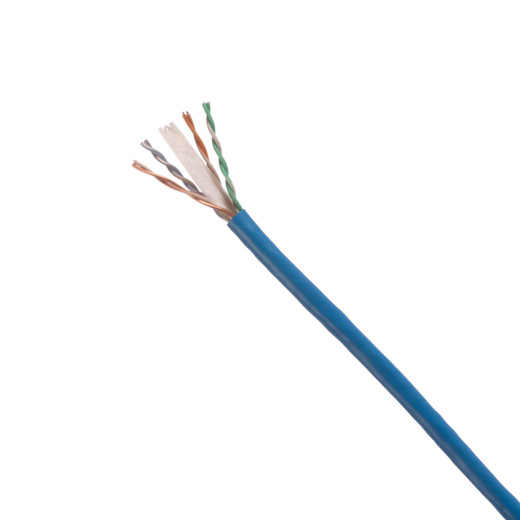

Panduit PUP6C04BU-WLPZ Cat 6 Plenum Cable

The Panduit PUP6C04BU-WLPZ delivers Cat 6 performance in a CMP-rated plenum jacket, engineered for commercial backbone installations where fire-code compliance and Gigabit Ethernet readiness are non-negotiable. This 1000 ft spool of blue 23 AWG solid-conductor U/UTP cable meets TIA-568.2-D Category 6 transmission requirements up to 250 MHz, supporting 1000BASE-T, 10GBASE-T (up to 55 meters), and PoE/PoE+ powered device deployments. The plenum-rated CMP jacket satisfies NFPA 262 flame-spread limits for installation in air-handling spaces without conduit, eliminating the cost and labor of chase-way enclosures in drop-ceiling environments. Part of Panduit's Pan-Net™ structured cabling family, this cable pairs with Panduit's Mini-Com modules, patch panels, and copper certification tools to form a complete, warrantied infrastructure system.

Key Features

• CMP plenum jacket compliant with NFPA 262 for unrestricted air-plenum installation
• Cat 6 250 MHz bandwidth supports Gigabit Ethernet and 10GBASE-T to 55m
• 23 AWG solid copper conductors for permanent-link installations and PoE power delivery
• U/UTP unshielded construction for cost-effective deployment in low-EMI environments
• 1000 ft bulk spool reduces splice points and speeds large-scale horizontal cabling projects
• Blue jacket simplifies ANSI/TIA-606-C color-coding for voice, data, or camera VLANs

The 23 AWG solid-conductor design makes this cable the correct choice for permanent horizontal runs between telecommunications rooms and wall plates or consolidation points. Solid conductors provide lower DC loop resistance than stranded equivalents, critical for PoE applications where voltage drop across 100-meter links can push Class 3/4 devices below minimum operating thresholds. The U/UTP unshielded construction offers flexible bend radius and simplified termination onto 110-style IDC blocks or RJ45 jacks without the grounding discipline required by shielded F/UTP or S/FTP designs. For installations in electrically noisy environments—proximity to fluorescent ballasts, VFDs, or high-current AC feeders—consider Panduit's shielded Cat 6 equivalents; for typical office, retail, or camera backbone runs where EMI is manageable, this UTP cable delivers Cat 6 performance at a lower installed cost.

The CMP plenum jacket uses a low-smoke, fire-retardant polymer formulation that passes the UL 910 Steiner Tunnel flame test, limiting flame spread to 5 feet and smoke density to 0.5 optical density. This rating permits installation in the spaces above suspended ceilings, below raised floors, and inside HVAC ducts—anywhere air circulates for climate control—without metal or PVC conduit. On a 50,000 sq ft tenant improvement with 200 camera drops and 400 data drops, eliminating conduit labor and material can save 15–25% of the copper rough-in budget. The blue jacket color aligns with common structured-cabling conventions: blue for horizontal data, yellow for camera/surveillance VLANs, orange for demarcation extensions, and so forth per ANSI/TIA-606-C administration standards. Field techs can trace and tone circuits faster, and future adds-moves-changes are less error-prone when cable color consistently maps to logical network segments.

This 1000 ft spool format strikes the optimal balance for commercial horizontal cabling. It minimizes mid-run splices compared to 500 ft boxes while remaining light enough (approximately 28 lbs) for a single installer to handle on a ladder or in a lift. Panduit's pull-box packaging includes an internal payout reel that reduces kinking and snags during long pulls through J-hooks or cable tray. When paired with Panduit's Pan-Net certification program and backed by Panduit's 25-year system warranty (requires all-Panduit connectivity and cable), this Cat 6 cable becomes part of a traceable, third-party-verified structured cabling system—documentation that speeds AHJ inspections, satisfies tenant lease requirements, and protects against future performance disputes. For integrators deploying IP camera networks, PoE access control panels, or converged voice-data infrastructures under aggressive schedules and strict fire-marshal oversight, the PUP6C04BU-WLPZ provides the code-compliant, field-proven backbone that keeps projects on schedule and within budget.
