Panduit PFP6C04WH-UG Pan-Net Category 6 F/UTP Plenum Cable

The Panduit PFP6C04WH-UG delivers ETL-verified Category 6 performance in a plenum-rated F/UTP construction designed for commercial security and network backbone installations. This 1000-foot white cable combines foil shielding with solid 23 AWG copper conductors to meet ANSI/TIA-568.2-D specifications while satisfying NEC Article 800 plenum requirements for air-handling spaces. For integrators running IP camera networks, access control systems, or structured cabling in facilities with strict fire codes, this cable provides the shielded performance and regulatory compliance needed to pass inspection on the first walk-through.

Key Features

• ETL Verified to ANSI/TIA-568.2-D Category 6 standards for reliable 1000BASE-T Ethernet performance up to 250 MHz
• F/UTP (Foiled/Unshielded Twisted Pair) construction with overall foil shield over four twisted pairs for EMI/RFI protection
• Plenum-rated CMP jacket meets NEC Article 800 and NFPA 90A requirements for installation in air-handling spaces
• 23 AWG solid bare copper conductors deliver consistent impedance and minimize signal loss across long runs
• 1000-foot pull box format supports large-scale deployments and reduces splice points in backbone runs
• White jacket provides clean aesthetic in exposed applications and meets common architectural specifications
• RoHS compliant formulation approved for federal and institutional projects with environmental procurement standards
• Compatible with RJ-45 style F/UTP connectors and termination hardware for standard 8P8C field installations

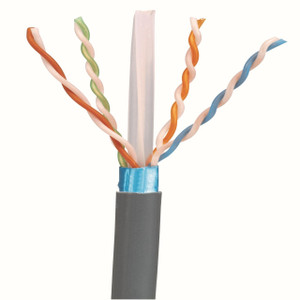

The F/UTP construction in the PFP6C04WH-UG positions an aluminum foil shield around all four twisted pairs before the outer plenum jacket. This foil layer provides critical protection against electromagnetic interference (EMI) and radio frequency interference (RFI) that can degrade signal integrity in commercial environments. In security installations, this shielding becomes essential when cable runs parallel power conduit, cross fluorescent lighting circuits, or pass through electrical rooms where variable frequency drives and other high-EMI sources operate. The foil shield drains interference to ground through the drain wire, maintaining clean signal transmission for IP cameras transmitting high-bitrate H.265 streams or access control panels communicating with hundreds of readers across a campus network. The 23 AWG solid copper conductors—larger than the 24 AWG found in many economy cables—reduce DC resistance to 9.38 ohms per 100 meters, which directly improves Power over Ethernet delivery. For PoE+ (IEEE 802.3at) deployments pushing 25.5 watts to PTZ cameras or multi-sensor units, this lower resistance minimizes voltage drop and heat buildup, allowing you to approach the full 100-meter distance limit without power budget concerns. The cable's 250 MHz bandwidth exceeds the 100 MHz minimum for Category 6, providing headroom for 10GBASE-T applications at shorter distances (up to 55 meters) and future-proofing installations against evolving IP camera compression standards and edge analytics workloads that demand sustained throughput.

Plenum rating is a non-negotiable requirement in many commercial installations. The PFP6C04WH-UG's CMP (Communications Plenum) jacket meets the stringent flame spread and smoke generation limits defined in NFPA 262 (UL 910), making it legal and code-compliant for installation in environmental air spaces—the areas above suspended ceilings, below raised floors, and in HVAC return plenums where building air circulates without enclosure in conduit. Most commercial office buildings, hospitals, schools, and government facilities use plenum-rated cable exclusively in these spaces to satisfy fire marshal and building inspector requirements. Even when local codes might permit riser-rated (CMR) cable in vertical shafts, specifying plenum-rated cable throughout the project eliminates the risk of accidentally pulling CMR into a plenum space during a late-stage installation change. The 1000-foot pull box format reduces the number of splice points and junction boxes in long backbone runs—critical for maintaining warranty compliance and simplifying troubleshooting. In a typical IP camera installation running home-run cables from an IDF to ceiling-mounted cameras across a 40,000-square-foot warehouse, a single PFP6C04WH-UG box can complete three to four camera drops without mid-run splices, reducing labor costs and eliminating potential failure points. The white jacket color matches standard ceiling grid systems and architectural finishes, meeting specifications that call for low-visibility cable in exposed plenum areas or open-ceiling retail and industrial environments.

Panduit's Pan-Net product line has served the structured cabling industry for decades, and the PFP6C04WH-UG reflects that heritage with third-party ETL verification rather than manufacturer self-certification alone. This independent testing to ANSI/TIA-568.2-D Category 6 standards provides the documentation required for projects with strict procurement oversight, including federal contracts subject to Buy American Act provisions and state projects requiring third-party validation. The cable's RoHS compliance eliminates lead, mercury, cadmium, and other restricted substances, satisfying environmental procurement policies in healthcare, education, and government sectors. For IP security integrators, this cable directly supports the infrastructure demands of modern surveillance networks: it handles the sustained bandwidth of 4K cameras, provides the shielding needed in electrically noisy environments, delivers reliable PoE power across code-compliant distances, and meets the plenum ratings that building officials expect in commercial construction. Whether you're wiring a 128-camera enterprise surveillance system, connecting access control panels across a multi-building campus, or installing IP intercoms in a healthcare facility, the PFP6C04WH-UG provides the verified performance and fire-code compliance that keeps projects on schedule and passes final inspection.
