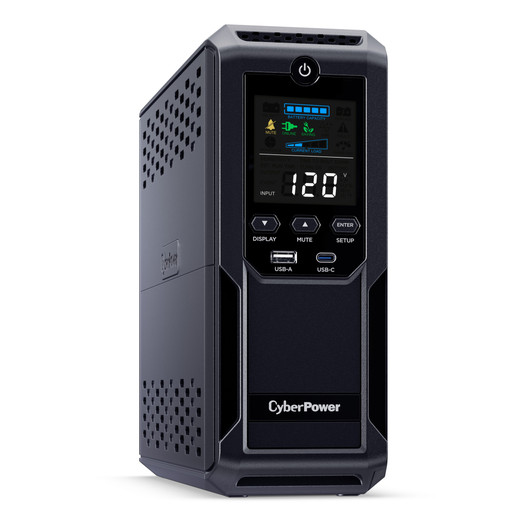

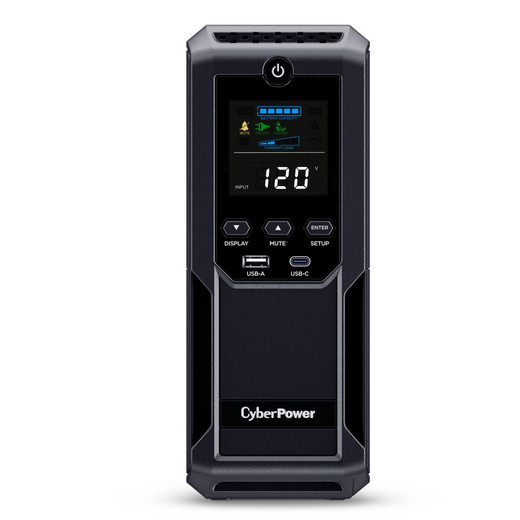

CyberPower CP1500AVRLCD3 1500VA Line-Interactive UPS Mini Tower

The CP1500AVRLCD3 is a 1500VA/900W line-interactive uninterruptible power supply designed to keep desktop workstations, network equipment, and security surveillance systems running during power loss. This mini-tower unit sits on or beside a desk, delivering battery backup with simulated sine wave output and automatic voltage regulation (AVR) to protect hardware from brownouts and surges.

Overview

The Intelligent LCD series positions itself as a workhorse for small offices, retail points of sale, and monitoring stations where brief outages occur frequently but prolonged blackouts are rare. The CP1500AVRLCD3 pairs line-interactive topology—which switches to battery only when input voltage drifts outside tolerance—with a color LCD panel that displays real-time status, battery health, load percentage, and remaining runtime. This transparency matters: you see at a glance whether a connected load is draining the battery or whether the UPS is simply topping off the charge from mains.

Key Features

• 1500VA / 900W capacity: Handles most small office equipment simultaneously. A typical desktop workstation draws 200–400W; network switches and routers draw 20–60W. This headroom means you can run a computer, monitor, and VoIP phone (or compact NVR with two cameras) from battery for the full runtime window without overload shutdown.
• Automatic Voltage Regulation (AVR) with ±5% output tolerance: Corrects input sag (brownouts) and spikes without draining battery, extending battery life on normal utility days. A 120V nominal line that sags to 100V or spikes to 140V is regulated back to 120V ± 5% immediately. Particularly useful in rural or industrial areas where voltage swings are common.
• 12 NEMA 5-15R outlets (6 surge-only, 6 surge + battery-backed): Battery-backed outlets power your critical load (NVR, core router, phone). Surge-only outlets handle peripherals you can afford to lose (printers, extra monitors). Segmenting the load this way keeps battery drain focused on must-have equipment.
• Sealed Lead-Acid battery, 2×12V/9Ah, user-replaceable: No proprietary cartridge. When batteries age (typically 3–5 years), you order the RB1290X2E replacement and swap them yourself in minutes. No technician visit, no expensive proprietary module. Runtime is 12 minutes at half load (450W) or 3 minutes at full load (900W)—long enough to gracefully shut down or brief recovery if a UPS-aware OS (like Linux or Windows Server) is running.
• Simulated sine wave output: Not pure sine, but adequate for most office and security equipment. Avoid connecting sensitive analog audio equipment or certain medical devices; modern switched-mode power supplies in computers and network gear tolerate simulated sine without issue. If your load includes Class A audio amplifiers or precision lab instruments, consider a pure-sine alternative.
• Multifunction color LCD display: Shows input/output voltage, battery percentage, load watts and percent, temperature, and remaining runtime in minutes. Alarms on low battery, overload, and fault conditions are audible and visual. No hunting through software logs to know the UPS state.
• USB and serial data line management: Includes PowerPanel Personal software (Windows/Mac/Linux) for automated shutdown triggers. Also comes with two USB charge ports (1×USB-A 2.4A, 1×USB-C 15W) to top off phones or tablets from the UPS during an outage—minor convenience but useful in a control room or monitoring station where staff might be present during power loss.
• Ethernet and coaxial data line protection: RJ45 (10/100/1000) and RG6 surge suppression protects network and cable lines from transient spikes, reducing risk to connected security or network hardware.
• GreenPower UPS bypass design: Whenever mains is within tolerance, the UPS bypasses inverter circuits, running in passthrough mode. Reduces heat, extends component lifespan, and lowers standby power consumption when no battery drain is occurring.
• Dimensions: 3.94×10.2×13.78 inches (100×259×350 mm); weight 23.8 lb (10.8 kg): Compact footprint for a 1500VA unit. Fits under a desk, on a shelf, or in a cabinet. Right-angle 45° offset input plug allows you to route the 6-foot cord without kinking. Not wall-mountable, but standalone placement is stable.
• 8-hour typical recharge time, 4 ms transfer time: After an outage, full recharge takes about 8 hours from a depleted battery. The 4 ms switchover to battery is fast enough that computers and network gear don't perceive a hiccup—no dropped calls, no frozen screens during a brief blackout.

Integration & Compatibility

PowerPanel Personal software integrates with Windows XP and later, macOS 10.5+, and Linux systems. Configure shutdown thresholds—for instance, "shut down the NVR when battery drops to 20% capacity." Serial and USB connections support daisy-chaining multiple UPS units if you're protecting a small rack environment. The CP1500AVRLCD3 pairs naturally with compact NVRs (4–8 channel models drawing 60–120W), reducing downtime risk for small retail or office surveillance deployments.

ENERGY STAR certification confirms efficiency in active and standby modes. RoHS compliance, UL1778 safety certification, and FCC Class B EMI/RFI limits ensure the unit meets commercial and residential safety standards in North America.

What's in the Box

• 1× CP1500AVRLCD3 UPS unit (assembled, tested)
• 1× 6-foot NEMA 5-15P input power cord with 45° right-angle offset connector
• 1× USB Type-A to Type-B cable (for computer communication)
• 1× Serial DB9 adapter cable
• 1× CD containing PowerPanel Personal software and user manual
• 1× Quick-start guide (multilingual)
• 1× Mounting bracket/brace (optional stabilizer for vertical placement)

Frequently Asked Questions

Q: How long will the CP1500AVRLCD3 keep an NVR running?

A: A typical 4–8 channel NVR draws 60–120W. At that load, you'll see 12+ minutes of runtime. Enough time to gracefully shut down or for a brief utility glitch to clear. For longer runtime, consider a higher-capacity unit or add an external battery cabinet.

Q: Is the CP1500AVRLCD3 suitable for 24/7 surveillance systems?

A: It's a backup device, not a permanent power source. It excels at bridging brief outages (seconds to minutes) and supporting a controlled shutdown. For 24/7 monitoring in areas with frequent or extended outages, pair it with a generator or invest in a larger capacity UPS with external battery modules.

Q: Can I replace the batteries myself?

A: Yes. The CP1500AVRLCD3 uses standard sealed lead-acid cells (2×12V/9Ah). The replacement cartridge is RB1290X2E. Installation is a two-minute job—no soldering, no special tools. This is a major advantage over proprietary UPS modules that require factory service.

Q: What's the warranty?

A: Three-year limited warranty covering defects in materials and workmanship. The unit also includes a $500,000 Connected Equipment Guarantee, which protects downstream hardware from UPS-related failures (review policy details with the distributor).

Q: Does the CP1500AVRLCD3 work with my security monitoring software?

A: PowerPanel Personal (included) runs on Windows, macOS, and Linux. It communicates via USB or serial to trigger automated actions—shutdown alerts, graceful shutdowns, event logging. Most NVR platforms accept third-party shutdown signals via these protocols. Confirm compatibility with your VMS vendor before deployment.

Q: Is the simulated sine wave output safe for all equipment?

A: Simulated sine works fine for computers, network switches, and modern office equipment. Avoid high-fidelity audio amplifiers, precision medical devices, or older analog instruments. If your load includes such equipment, specify a pure-sine-wave UPS instead.

Marty Allison

I spec the CP1500AVRLCD3 frequently for small retail surveillance and branch-office monitoring stations where mains reliability is sketchy but outages rarely exceed a few minutes. The 900W capacity and split outlet configuration (6 surge-only, 6 battery-backed) let you isolate your NVR and edge router from the noise—and the user-replaceable 2×12V/9Ah sealed lead-acid battery pack keeps cost down when it's time to refresh, typically around year 3–4.

Technical Highlights:

• Line-interactive topology with AVR: Absorbs voltage sag (95–145V input) without touching the battery—you only drain cells during true blackouts. In a typical retail day with 2–3 brief brownouts, the CP1500AVRLCD3 never switches to battery backup, so the battery ages slower and you get more cycles before replacement.
• 4 ms transfer time: Quick enough that network surveillance traffic doesn't hiccup during the switchover. A 30fps video stream won't drop frames, and a VoIP call over the router doesn't disconnect. That 4 ms window is the difference between "graceful failover" and "dropped connection, reconnect delay."
• Multifunction color LCD with runtime display: Staff can glance at the panel and see "42 minutes remaining at current load" without logging into software. In a real outage, that situational awareness is gold—you know whether to call the generator company or just wait 15 minutes for mains to return.

Deployment Considerations:

• The 3-minute full-load runtime is tight. If your NVR, router, and a monitor all demand close to 900W, that window is very short. Test the actual load during commissioning using the PowerPanel software or a clamp meter to avoid surprises during an outage.
• Simulated sine output is fine for modern switching supplies, but if you're powering older analog equipment or sensitive audio, it will produce audible noise or distortion. Pure-sine alternatives cost more but are necessary in those cases.

Position the CP1500AVRLCD3 as the de facto UPS for compact NVR deployments in retail, small office, and branch-monitoring environments where brief blackouts are expected but extended outages are rare. Pair it with PoE switches that also run on battery backup to cover your entire edge network, not just the recorder.
