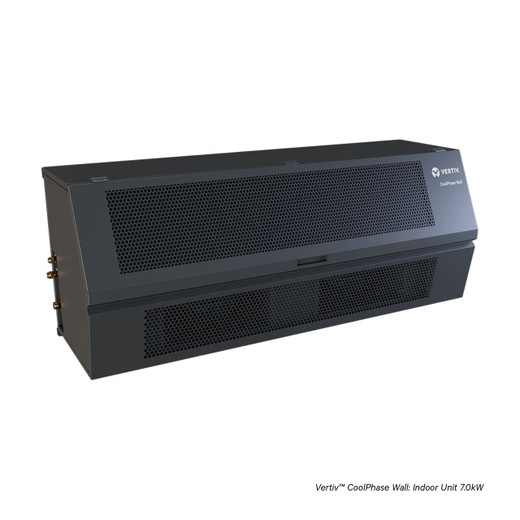

Vertiv CPQ-1092569-01 7kW Wall-Mount Precision Cooling Unit
Overview
The Vertiv Coolphase Wall CPQ-1092569-01 is a 7kW wall-mount precision cooling unit designed for edge deployments, server rooms, and enclosed equipment spaces where floor space is constrained but thermal load management is non-negotiable. Rated for 208/230V single-phase operation at 50/60Hz, this unit fits both North American and international electrical infrastructure without voltage conversion — a meaningful advantage for multi-site deployments standardizing across regions. CE and UL listings confirm it meets both European and North American safety and performance requirements, so it clears procurement and facilities review in either market. If you're evaluating Vertiv thermal management solutions for edge or mid-tier data environments, the CPQ-1092569-01 (often searched as CPQ 1092569 01) is a unit worth sizing carefully against your actual heat load before committing.
Key Features
- 7kW Cooling Capacity: Handles moderate-density equipment loads — typical for a small server room, network closet running 10–20U of active gear, or a surveillance recording cluster. At 7kW you're not covering a high-density blade chassis row, but for a distributed edge node or branch-office IDF this is a practical fit without oversizing capital spend.
- Wall-Mount Form Factor: Installs on the wall rather than consuming rack units or floor tiles — a real advantage in constrained equipment rooms where every square foot is allocated. Wall placement also positions the unit for efficient return-air intake without disrupting hot-aisle/cold-aisle flow if that arrangement is in place.
- 208/230V Single-Phase Input: Dual-voltage acceptance at 208V or 230V means it wires directly to standard single-phase branch circuits in both US commercial buildings (208V from three-phase distribution) and international facilities running 230V. No step-up transformer, no special panel configuration required — simplifies commissioning on retrofit projects.
- 50/60Hz Frequency Compatibility: Accepts both 50Hz and 60Hz grid frequency, making the unit deployable across North America, Europe, and most of Asia-Pacific without frequency-matching equipment. For organizations managing multi-country edge infrastructure, this matters at procurement time.
- CE and UL Certifications: CE marking satisfies EU/EEA regulatory requirements for electrical safety and EMC compliance. UL listing meets US/Canadian market requirements. Both marks on a single SKU reduce the complexity of multi-region procurement and avoid maintaining parallel SKUs for different regulatory zones.
- Precision Cooling Architecture: Purpose-built for controlled environments rather than comfort cooling — precision units maintain tighter temperature and humidity tolerances than HVAC systems, which is what electronic equipment requires. Deploying HVAC in place of precision cooling risks humidity excursions and temperature swings that shorten equipment life.
Integration and Compatibility
The CPQ-1092569-01 is designed for deployment in enclosed equipment spaces where single-phase power is available and wall mounting is viable. Pair it with appropriate data center infrastructure — proper airflow baffling, temperature sensors positioned at intake and exhaust, and UPS-backed power circuits will let this unit perform at its rated 7kW capacity without nuisance trips. For environments combining active surveillance hardware, NVRs, and network gear under one roof, a UPS or power management stack on the same circuit ensures the cooling unit stays online during utility transients. The dual voltage/frequency rating integrates cleanly into mixed-infrastructure environments without requiring dedicated electrical runs beyond the standard single-phase branch.
Frequently Asked Questions
Q: What electrical supply does the CPQ-1092569-01 require?
A: The CPQ-1092569-01 accepts 208V or 230V single-phase input at either 50Hz or 60Hz. It does not require three-phase power or a frequency converter, making it compatible with standard single-phase commercial branch circuits in both North American and international facilities.
Q: What is the cooling capacity of the Vertiv CPQ-1092569-01?
A: The unit is rated at 7kW of cooling capacity. This is appropriate for small-to-medium equipment rooms, edge nodes, and network closets with moderate heat loads. High-density compute rows or blade chassis environments typically require higher-capacity units.
Q: Is the CPQ-1092569-01 CE and UL listed?
A: Yes. The CPQ-1092569-01 carries both CE marking for EU/EEA regulatory compliance and UL listing for North American market requirements, covering a single SKU for multi-region procurement.
Q: Can the CPQ-1092569-01 be used in international deployments outside the US?
A: Yes. The 208/230V dual-voltage and 50/60Hz dual-frequency ratings, combined with CE certification, make it deployable in both North American and European/international facilities without voltage conversion or frequency matching equipment.
Q: How does wall mounting affect installation compared to floor or rack-mount cooling units?
A: Wall mounting keeps the unit off the floor and out of rack space, which is valuable in constrained equipment rooms. It also positions the unit for direct return-air management without interfering with floor-level hot-aisle/cold-aisle arrangements. Structural wall support adequate for the unit's weight must be confirmed during site preparation.
The CPQ-1092569-01 is a Vertiv Coolphase Wall unit rated at 7kW — that number is the first thing to validate against your actual heat load before ordering. Run a heat load calculation on your equipment room: sum the nameplate watts (or measured draw) of every active device, add 10–15% headroom, and confirm the 7kW capacity covers it with margin. Undersizing precision cooling is a common field mistake that results in thermal shutdowns under peak load.
Technical Highlights:
- 7kW Cooling Capacity: Sized for edge and branch equipment rooms in the 5–15U active-load range — think NVR stacks, PoE switch shelves, and server appliances in a shared telecom room. Adequate for moderate density; not the right pick for converged high-density compute.
- 208/230V Single-Phase, 50/60Hz: A single unit covers North American 208V three-phase-derived circuits and international 230V/50Hz supply without any additional power conversion hardware — cuts procurement and commissioning complexity on multi-site rollouts.
- CE and UL Listed: Both marks on one SKU means the same part number clears facilities and compliance review in US and EU markets simultaneously, which matters for organizations managing equipment rooms across multiple regulatory jurisdictions.
Deployment Considerations:
- Confirm wall structural capacity before mounting — precision cooling units carry refrigerant circuits and compressor components that add substantial weight. A standard drywall stud bay is rarely adequate; a concrete block or steel-backed wall section is the typical installation surface.
- Wall-mount placement directly affects airflow geometry: the unit must have unobstructed return-air access and a clear exhaust path. In a small equipment room, blocking the return intake with cable bundles or equipment placed too close to the wall is the most common commissioning mistake.
The CPQ-1092569-01 is well-matched to a branch-office server closet or a distributed surveillance head-end room where floor space is limited, a single-phase 208/230V circuit is available, and the active equipment load sits in the 4–6kW range with room to grow to the unit's 7kW ceiling.
