StarTech SV431USB 4-Port USB VGA KVM Switch

Overview

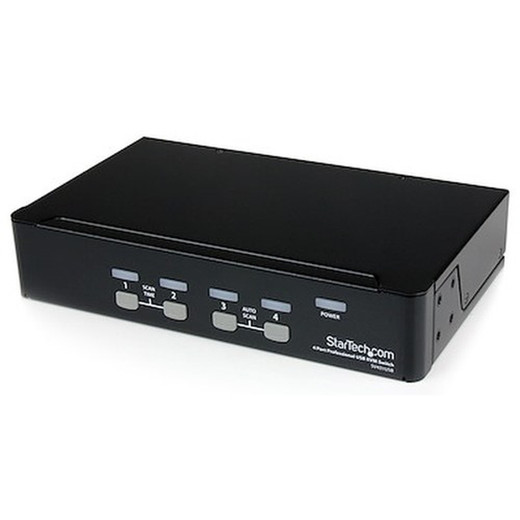

The StarTech SV431USB is a 4-port KVM switch that lets you control up to four USB-connected computers — PC or Mac — from a single keyboard, mouse, and VGA monitor. If you're running a small server room, a testing bench, or a multi-system workstation where desk space and budget don't support four independent displays, this is a straightforward hardware-level solution. No drivers to push, no software to license — the OS-independent design means it works whether your hosts are running Windows, Linux, macOS, or a mix of all three. Switching between hosts is handled by physical push buttons on the front panel, which means no hotkey conflicts with your applications and no dependency on the host OS being responsive to make the switch.

Key Features

• 4 USB Host Ports with VGA: Each of the four host connections uses a USB Type-B connector for keyboard and mouse data plus a dedicated VGA port for video — so you get a clean, separate cable run per machine rather than sharing a bus. Cables up to 16.4 ft (5 m) give you enough slack to reach rack-mounted servers or tower systems positioned under a desk.
• 1920 x 1440 Maximum Resolution: VGA support up to 1920 x 1440 means you're not locked into a low-resolution console view — useful for systems where you need to read dense log output or work in a GUI without squinting. This exceeds the more common 1080p cap on budget KVMs, so a higher-resolution analog monitor won't be the bottleneck.
• Push-Button Port Selection: Hardware push-button switching keeps port selection reliable regardless of what state the host OS is in. This matters in server and lab environments where you may need to switch to a machine that's hung, booting, or running a BIOS/UEFI screen — hotkey-dependent KVMs can't reliably do that.
• USB 2.0 Console Interface (4 ports): The console side exposes four USB 2.0 Type-A ports — two for your keyboard and mouse, with the additional ports available for other USB peripherals you want shared across hosts. USB 2.0 throughput is more than sufficient for HID devices and keeps latency low for keyboard and mouse response.
• OS-Independent Operation: Because the SV431USB presents standard USB HID descriptors to the host, there are no platform-specific drivers required. Deploy it with Linux headless servers, Windows workstations, or Apple Mac systems on the same switch without compatibility headaches.
• Integrated Power Supply (100–240V AC): The unit accepts 100–240V AC input at 0.4A and provides a regulated 5V DC / 2A output internally — no external power brick hunting required. Universal voltage compatibility means it works on any standard outlet globally without a step-down transformer.
• Desktop Form Factor with Optional Rack Mount: At 8.7 x 5.1 x 1.7 inches and 988g, the SV431USB sits cleanly on a desktop or bench. Optional rack-mount kit support means it can also be integrated into a standard equipment rack if your installation calls for it — useful for consolidating KVM access in a structured wiring closet or small server room.
• Operating Temperature 0°C to 40°C: Rated for standard indoor operating environments. This is appropriate for office server rooms and equipment closets that maintain normal HVAC conditions — not for uncontrolled outdoor or industrial enclosures.

Integration and Compatibility

The SV431USB connects to host systems via standard USB Type-B (upstream) and HD-15 VGA connectors — both are universally supported across desktop and server hardware. On the console side, your monitor connects via HD-15 VGA, and USB Type-A ports accept standard keyboard and mouse. Because the switch is OS-independent, it integrates cleanly into heterogeneous environments: a Linux build server, a Windows admin workstation, and a Mac development system can all share the same console without reconfiguration. The maximum supported cable length of 16.4 ft (5 m) per host connection is worth planning around — longer VGA runs introduce signal degradation, so keep host-to-switch distances within spec for reliable high-resolution output.

Frequently Asked Questions

Q: Does the SV431USB require drivers or software to operate?

A: No. The SV431USB is OS-independent and uses standard USB HID descriptors, so it works without installing any drivers on Windows, Linux, macOS, or other operating systems.

Q: What is the maximum video resolution the SV431USB supports?

A: The SV431USB supports analog VGA resolutions up to 1920 x 1440, which exceeds standard 1080p and is suitable for higher-resolution analog monitors.

Q: How do you switch between computers on the SV431USB?

A: Switching is done via push buttons on the front panel of the unit. There are no hotkey sequences required, which makes it reliable for switching to machines in any state, including BIOS, boot screens, or an unresponsive OS.

Q: What is the warranty on the SV431USB?

A: The SV431USB carries a 3-year manufacturer warranty.

Q: Can the SV431USB be rack-mounted?

A: Rack mounting is supported as an optional configuration. The unit is designed primarily for desktop use but can be integrated into a standard rack with an appropriate mounting kit.

Q: What is the maximum cable length between the SV431USB and connected computers?

A: The maximum supported cable length between the switch and each host computer is 16.4 ft (5 m). Exceeding this length — particularly for VGA — risks signal degradation at higher resolutions.

Marty Allison

The SV431USB is one of those utility devices that earns its place purely by being straightforward — four hosts, one console, push-button switching, no software dependency. The spec I keep pointing integrators back to is the 1920 x 1440 maximum VGA resolution: most comparable 4-port desktop KVMs cap at 1080p, so if you're running a higher-resolution analog display and need clean, readable output across all four host sessions, the SV431USB doesn't force a resolution compromise.

Technical Highlights:

• 1920 x 1440 VGA Output: Supports resolutions above standard 1080p on analog VGA — critical for console work involving dense text or GUI-based server management tools.
• Integrated 100–240V AC Power Supply: Internal regulated supply (5V DC / 2A) eliminates the need for a separate power adapter and works on any standard global outlet without a step-down converter.
• OS-Independent USB HID: No drivers required on any connected host — deploy across mixed Windows, Linux, and macOS systems on the same switch without reconfiguration.

Deployment Considerations:

• Plan cable runs carefully: the 16.4 ft (5 m) maximum host cable length is a hard limit for reliable VGA signal integrity at full resolution — measure before purchasing cables.
• Operating temperature is rated 0°C to 40°C, which covers standard office and equipment room environments but rules out deployment in unconditioned spaces like outdoor enclosures or unheated storage areas.

The SV431USB fits best in small server rooms, lab benches, and IT admin stations where you need reliable console access to three or four machines — particularly in mixed-OS environments where a software-based KVM would introduce platform-specific friction.
