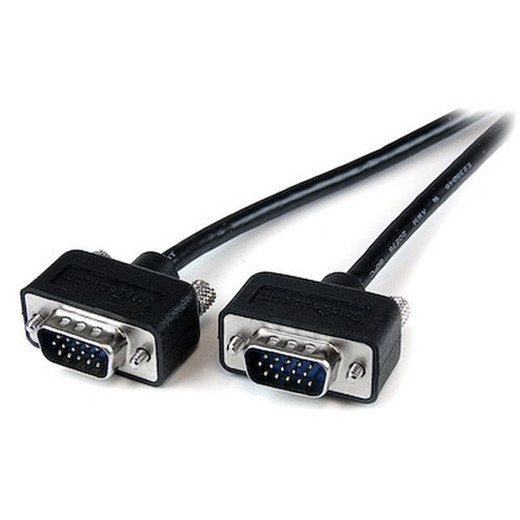

StarTech MXT101MMLP15 15 ft Low Profile VGA Monitor Cable

Overview

The StarTech MXT101MMLP15 is a 15-foot (4.6 m) male-to-male VGA cable engineered for connecting monitors, projectors, and display devices where a dependable, shielded analog video signal matters. At 32 AWG with a 75-ohm impedance rating and a dual-layer aluminum-mylar foil plus braid shield, this cable is built to keep interference out of your signal path — not just pass a connector from Point A to Point B. If you're running display cables in an environment with electrical noise from motors, HVAC, or adjacent data cabling, the shielding spec here is worth noting.

Both ends use standard 15-pin High Density D-Sub (HD-15) VGA connectors with nickel plating, which resists corrosion and oxidation better than bare copper connectors over time — a practical advantage in any installation that won't be touched again for years. The PVC jacket is flexible enough for routing through tight spaces while providing adequate mechanical protection for permanent installations.

Key Features

• 15 ft (4.6 m) Cable Length: Covers the distance between a wall-mounted display or projector and the nearest source device without requiring an extender or signal booster — keeping your signal path clean and your parts count low.
• 75-Ohm Impedance: Matches the impedance of standard VGA signal transmission, which reduces reflections that degrade image sharpness, particularly visible at higher resolutions on longer cable runs.
• Aluminum-Mylar Foil + Braid Shield: The dual-layer approach combines the foil's 100% surface coverage with the braid's mechanical strength and low-frequency noise rejection. In electrically noisy environments — server rooms, AV racks near switching hardware — this combination outperforms single-layer shielded cables.
• 32 AWG Wire Gauge: Thinner gauge keeps the cable flexible and easy to route through conduit or cable management trays without the stiffness associated with heavier-gauge runs.
• Nickel-Plated Connectors: Resist oxidation at the contact points, maintaining signal integrity over time without the re-seating issues that develop on corroded connectors in high-humidity or dusty environments.
• PVC Jacket: Cost-effective, flame-retardant insulation appropriate for standard commercial installations. Not plenum-rated — verify your local code requirements before running in air-handling spaces.
• Lifetime Warranty: StarTech covers the MXT101MMLP15 for the life of the product, which removes the cable from your replacement budget entirely and simplifies long-term support planning.

Integration and Compatibility

The MXT101MMLP15 uses the universal HD-15 VGA connector found on the vast majority of legacy monitors, projectors, KVM switches, video distribution amplifiers, and source devices from virtually every manufacturer. No adapters, no drivers, no configuration — plug and signal. For environments running analog signage displays, security monitor walls, or control room workstations that haven't migrated to HDMI or DisplayPort, this cable integrates without any additional hardware.

For longer runs beyond 15 feet where signal degradation becomes a concern, a VGA signal extender or active booster may be warranted. This cable is a passive solution and performs best at its rated length.

Frequently Asked Questions

Q: What connectors does the MXT101MMLP15 use on each end?

A: Both ends use 15-pin High Density D-Sub (HD-15) VGA connectors with nickel plating — the standard male VGA connector found on monitors, projectors, and most video source devices.

Q: Is the MXT101MMLP15 shielded against electrical interference?

A: Yes. The cable uses a dual-layer shield combining aluminum-mylar foil with a braid layer. This provides both full-surface EMI coverage and mechanical durability, making it a solid choice for installations near switching hardware or other noise sources.

Q: What is the warranty on the MXT101MMLP15?

A: StarTech covers this cable with a lifetime warranty — the product is warranted for as long as you own and use it.

Q: Is this cable plenum-rated for use in air-handling spaces?

A: No. The MXT101MMLP15 uses a standard PVC jacket, which is not plenum-rated. If your installation route passes through HVAC air-handling spaces, you will need a CMP-rated cable to meet code in most jurisdictions.

Q: Can this cable support HD resolutions like 1080p or 1920x1200?

A: VGA is an analog standard, and maximum resolution depends on both source and display. The 75-ohm impedance and dual-layer shielding help maintain signal integrity at higher analog resolutions, but performance at 1080p and above on a 15-foot run will also depend on the quality of your source and display hardware.

Jerry Tildsen

The spec I always check first on a VGA cable is the shield construction — a single foil layer looks good on paper but leaves you exposed on low-frequency noise. The MXT101MMLP15 uses aluminum-mylar foil combined with a braid layer, which is the combination I want to see on any run that's going through an AV rack or near power distribution hardware. At 15 feet, you're right at the edge where shield quality starts to matter on analog signal runs.

Technical Highlights:

• Dual-Layer Shielding: Aluminum-mylar foil provides 100% surface coverage for high-frequency EMI; the braid layer adds low-frequency rejection and mechanical protection — better noise immunity than single-layer cables at the same price point.
• 75-Ohm Impedance: Matched to the VGA signal standard — impedance mismatches cause reflections that show up as ghosting or softness, especially noticeable at resolutions above 1024x768 on longer runs.
• Lifetime Warranty: Removes this cable from the replacement cycle entirely. On a multi-display installation with dozens of runs, that matters for total cost of ownership over a 5-10 year facility lifespan.

Deployment Considerations:

• The 32 AWG gauge keeps this cable flexible for routing, but thinner gauge also means higher resistance per foot — at exactly 15 feet (4.6 m), you're within the practical range for analog VGA, but don't extend this run with a coupler and expect the same image quality.
• PVC jacket is not plenum-rated — plan your routing accordingly and confirm local code requirements before running through any air-handling ceiling or floor plenum space.

The MXT101MMLP15 is the right cable for control room monitor walls, security operations center displays, and legacy AV installations where VGA source hardware is fixed and the run length falls within 15 feet — it's overkill for a single desktop monitor on a clean desk, and exactly right for a rack-mounted KVM to a wall display in a busy equipment room.
