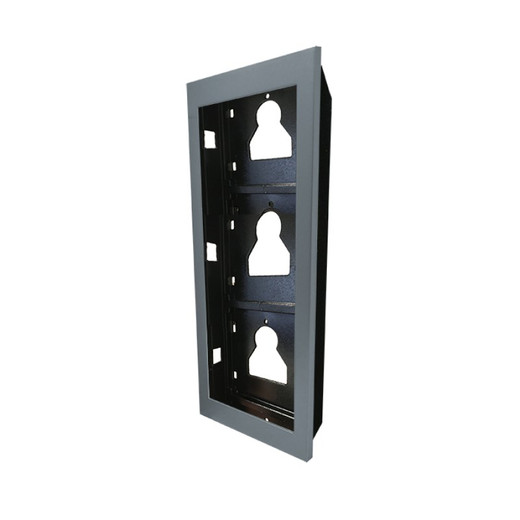

Comelit UT9163 Ultra 3 Modules Flush-Mount Frame
Overview
The Comelit UT9163 is a flush-mount wall frame engineered for recessed installation within standard wall cavities, delivering clean integration for the Comelit Ultra 3 modular video intercom system. Unlike surface-mount solutions, the UT9163 sits flush with the finished wall surface — a critical detail when aesthetics matter or building codes mandate concealed wiring in residential and commercial access control deployments. The frame accommodates up to three intercom modules, enabling you to mix and match call stations, audio-only units, and control interfaces within a single mounting location.
Key Features
- 3-Module Capacity: Supports up to three Ultra 3 series modules in a single frame, letting you configure the exact mix of functionality (e.g., two call stations + one control module) without installing separate frames. Reduces cable runs and labor compared to scattered single-module mounts.
- Flush-Mount Design: Recessed installation eliminates the exposed profile of surface-mount brackets — mandatory for high-end residential and commercial environments where integrated aesthetics are non-negotiable. Frame fits standard wall-box depths common to electrical and access control installations.
- Standard Wall-Box Compatibility: Uses familiar installation procedures already understood by residential electricians and integrators. No proprietary fastening or non-standard rough-in dimensions — drops directly into a conventional wall cavity after the drywall opening is cut.
- Modular System Flexibility: The UT9163 frames part of the Comelit Ultra 3 ecosystem. Pair with call station modules, audio processors, and display controllers to build customized entry or lobby systems scaled to your site layout.
- Professional Integration Base: Designed for installers who need reliable mounting without field improvisation. Comelit engineering ensures modules align properly and remain mechanically stable over years of door-buzzer and visitor-call cycles.
Integration & Compatibility
The UT9163 is engineered exclusively for Comelit Ultra 3 series intercom modules. Verify that all call stations, audio units, and control interface modules you plan to deploy are certified Ultra 3 components before committing to this frame. The modular design assumes you are integrating via Comelit's system architecture — wiring, power distribution, and software provisioning follow Comelit's documented integration path, so cross-manufacturer module mixing is not supported.
Installation follows standard wall-mount procedures: rough-in the wall opening to frame dimensions, run conduit and cabling before drywall closure, and set the frame during finish-out. Comelit documentation will specify exact knockout locations and module alignment tolerances — follow these precisely to avoid rework during final module installation.
When to Choose a Different Model
If surface-mount aesthetics are acceptable and faster field installation is the priority, consider Ultra 3 surface-mount frames within the same family — they eliminate wall rough-in labor and work in retrofit situations where wall cavities are inaccessible. If your deployment requires integration with non-Comelit intercom platforms, do not force this frame into a mixed-vendor architecture; consult with your system designer first.
Deployment Context
The UT9163 is ideal for new construction and major renovation projects where wall framing is exposed and infrastructure is being planned from the start. It shines in high-touch commercial lobbies, multi-unit residential buildings, and gated communities where intercom presence should be architecturally integrated rather than visibly bolted on. If your site plan calls for discreet, professional-looking visitor entry control, this frame is the right foundation.
Frequently Asked Questions
Q: Does the UT9163 work with older Comelit intercom models?
A: No. The UT9163 is designed specifically for the Ultra 3 modular series. Compatibility with previous-generation Comelit systems has not been verified and should not be assumed.
Q: What wall-box depth does the UT9163 require?
A: The frame fits standard electrical wall cavities, but the exact depth specification is documented in the Comelit installation guide. Measure your wall cavity or consult the technical documentation before cutting drywall openings.
Q: Can I mount the UT9163 on surfaces other than walls?
A: The UT9163 is engineered for flush wall installation. Surface-mount or ceiling applications require different Comelit frame models or custom brackets — verify with Comelit technical support before adapting.
Q: How many modules must I install in the UT9163?
A: The frame accommodates up to three modules but does not require you to fill all slots. You can install one, two, or three modules depending on your system design. Leave empty slots covered with appropriate blanking plates per Comelit's specifications.
Q: Is electrical wiring inside the wall frame run by the installer or pre-installed?
A: You route all cabling and conduit during wall rough-in before the frame is mounted. The frame itself provides cable access points and knockouts; Comelit installation documentation specifies routing locations.
Q: What is the warranty on the UT9163?
A: Warranty terms are provided by Comelit and documented in your purchase agreement. Contact the supplier or Comelit directly for specific coverage and claim procedures.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Comelit UT9163 is a straightforward mounting solution that solves one problem well: clean, recessed integration of multi-module intercom stations in new construction and renovation. If your project's scope includes visible intercom hardware, this frame is worth specifying early — before walls close and rough-in schedules lock in.
Technical Highlights:
- 3-Module Capacity: Consolidating three independent modules into one frame cuts labor on wall preparation, cabling runs, and final trim work compared to installing three separate surface-mount stations. Real savings on residential multi-unit or commercial lobby projects.
- Standard Wall-Box Fit: No proprietary rough-in dimensions means your electrician can frame the opening using common methods and tools. Frame arrives on-site, gets mounted during drywall finish, and modules drop in during the final push — no surprises.
- Modular Mix-and-Match: The UT9163 does not force you to buy a fixed bundle. Pair it with the exact Ultra 3 modules your design requires — call stations, audio-only units, controllers — and only pay for what you need.
Deployment Considerations:
- Wall Cavity Measurement Is Critical: Confirm your wall depth accommodates the frame's rough-in dimensions before drywall hangers cut openings. A 1-inch mismeasurement means rework or surface-mount fallback — neither is fun mid-project.
- Ultra 3 Only: Do not assume backward or forward compatibility with other Comelit generations. Verify all modules are Ultra 3 certified before ordering. Mixed-generation systems are not supported and will cause integration headaches.
The UT9163 is the correct choice for integrators building new Comelit Ultra 3 systems where recessed, professional aesthetics drive the specification. On retrofit or mixed-vendor projects, or where surface-mount speed is the priority, step back and evaluate whether a different frame type better serves the timeline and budget.
