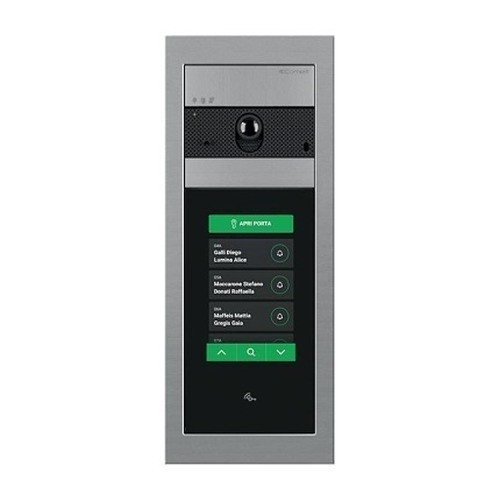

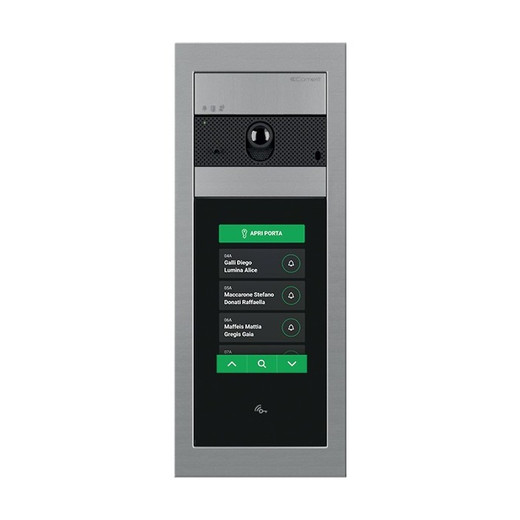

Comelit UT8090 4MP Video Entrance Station with Touchscreen
The Comelit UT8090 is a wall-mounted video entrance station designed for residential and light commercial access control deployments. It combines 4MP imaging, integrated microphone support, and a responsive touchscreen interface to create a complete entry-point communication node. PoE+ (802.3at) power eliminates the need for dedicated electrical runs, reducing installation cost and complexity. The unit integrates directly into Comelit access control and video management ecosystems, making it a natural fit for properties already standardized on Comelit infrastructure.
Key Features
- 4MP Resolution: 2560×1440 image capture provides clear facial and visitor identification at entry points, suitable for evidentiary documentation and access control verification.
- Touchscreen Interface: Capacitive touchscreen enables intuitive on-device controls—no separate keypad or companion app required for basic operation at the entry.
- Two-Way Audio: Integrated microphone supports full-duplex communication between visitor and building interior (via connected call station or management console).
- PoE+ Power (802.3at): Single network cable supplies both data and power—typical draw under 15W, compatible with standard 802.3at switches. Eliminates separate 12V or 24V transformer installation.
- Wall-Mounted Form Factor: Compact housing fits standard entrance door frames and vestibule installations without cabinet or pedestal footprint.
- Comelit Ecosystem Integration: Native support for Comelit door controllers, access management platforms, and IP video systems—no third-party gateway required for core functionality.
The 4MP sensor captures sufficient detail for visitor identification and access logging across typical entrance distances (2–4 meters). The touchscreen allows authorized personnel or residents to answer calls, unlock doors (when integration permits), or reject access requests directly from the unit without reaching a separate intercom or mobile device. For properties with existing Comelit installations, the UT8090 eliminates integration friction—video, audio, and control logic flow within a unified data model.
PoE+ simplifies cabling infrastructure. A single Cat5e or Cat6 run carries both video stream (typically 2–3 Mbps at 4MP 15fps, higher under motion) and control signaling. Network switches rated 802.3at (minimum 30W per port) are widely available; verify your switch supports the UT8090's peak draw before installation. The unit operates over standard IP networks, allowing remote monitoring via Comelit's management console or third-party VMS platforms if ONVIF or RTSP streaming is enabled in system configuration.
Audio handling is critical in entrance environments. The integrated microphone captures visitor speech across typical door-to-station distances; outbound audio (from the building interior to the visitor) depends on the Comelit system's speaker output capabilities at the connected call station or NVR. Test audio levels during commissioning—acoustic feedback or echo can occur if both call station and unit's audio circuits are left active simultaneously. Comelit's configuration interface typically includes audio routing rules to prevent this.
The UT8090 carries a 2-year manufacturer warranty. Comelit recommends periodic firmware updates through the management console to address security vulnerabilities and feature refinements. For properties seeking a turnkey entrance solution without third-party integrations, the UT8090 paired with Comelit controllers and a compatible NVR represents a complete video access stack with minimal external dependencies.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Comelit UT8090 across residential buildings, small office complexes, and secured access vestibules. It fills a specific market niche: properties already committed to Comelit access control who need video at the entry without fragmenting their technology stack. The real value isn't the 4MP sensor (which is competent but not exceptional) — it's the elimination of integration overhead. You're not wiring a third-party camera, configuring ONVIF translation layers, or managing separate video and access databases. Everything lives in Comelit's ecosystem. That operational simplicity matters when you're managing a 20-unit residential building or a light-commercial facility with a single part-time security administrator. The 2-year warranty is standard; Comelit's firmware update cadence is reasonable but not aggressive, so don't expect monthly security patches. Compared to installing a standalone IP camera + a separate video door station, the UT8090 trades some feature depth for installation speed and consistency — a solid trade-off in the residential sweet spot.
Technical Highlights:
- PoE+ (802.3at) Power Delivery: 30W switch port per unit. Most facilities have 802.3at infrastructure already; no specialized PSU gear required. Cabling runs shorter than traditional 12V relay-based door stations, reducing voltage drop and installation labor.
- 4MP @ 2560×1440: Sufficient for visitor facial capture and access logging. Bitrate is manageable on modest NVR systems (2–4 Mbps sustained, 6–8 Mbps under motion). Video quality holds across typical 2–3 meter entrance distances without noticeable pixelation or blur during normal lighting.
- Touchscreen UI: Eliminates separate keypads or button arrays. Responsive capacitive touch handles call answering, door unlock requests, and rejection in a single interface. Gloved operation (common in cold climates) may require firmware tweaks or resistive alternatives if adoption is poor.
- Integrated Microphone + Audio Routing: Two-way audio is bidirectional but dependent on Comelit console speaker output. Audio quality is adequate for door-station dialogue; no expectation of hi-fi audio or noise cancellation. Test echo/feedback during first commissioning — audio configuration must be explicit.
- Comelit Integration Native: No ONVIF Profile S/T needed; access control commands, video recording triggers, and unlock requests flow through Comelit's internal API. Commissioning time is days, not weeks.
Deployment Considerations:
- Touchscreen requires power-down during Comelit system maintenance or firmware updates — notify residents beforehand to avoid access disruptions during service windows.
- Exterior wall installations in frost climates: Verify the housing gasket and drain pathways prevent condensation buildup inside the unit. Comelit publishes environmental limits; don't exceed stated temperature/humidity ranges.
- PoE+ cables should be verified for correct gauge and termination. Cat6 is recommended over Cat5e for runs exceeding 40 meters to account for power delivery margin.
- Audio echo/feedback is common if call station and unit speakers are both unmuted. Configure Comelit's audio switching rules during commissioning — prioritize unit microphone when active call is incoming.
- The UT8090 does not support H.265 or advanced video codecs — bitrate scales with resolution and frame rate. Multi-unit deployments should budget accordingly on network bandwidth.
The Comelit UT8090 is the right choice for integrators and facility managers committed to Comelit's access control ecosystem who prioritize installation simplicity and long-term operational consistency over bleeding-edge feature parity. For a deeper look at Comelit's full product range, visit the Comelit catalog.
