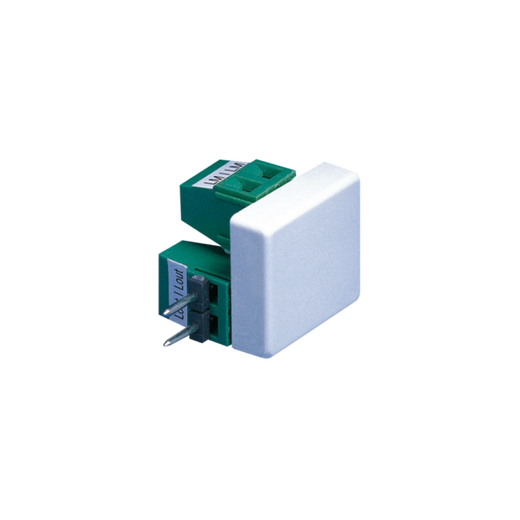

Comelit 1214KC T-Tap for Simplebus 1 Intercom System
The Comelit 1214KC is a branch tap (T-Tap) for distributed Simplebus 1 intercom networks, designed to add secondary endpoints—handsets, keypads, or call stations—without requiring backbone rewiring or dedicated power infrastructure. Each T-Tap connects to the main Simplebus 1 bus line via standard network cabling, drawing PoE+ (802.3at) power directly from your network switch or injector. For multi-unit residential buildings, office parks, or campuses running Simplebus 1, the 1214KC eliminates the cost and installation overhead of long radial runs back to a central panel.
Key Features
- PoE+ Power (802.3at): Draws 802.3at PoE+ directly from your network infrastructure. No separate DC power supplies or auxiliary wiring needed—single RJ45 connection handles both data and power.
- Simplebus 1 Native: Purpose-built for Comelit Simplebus 1 architecture only. Confirms system compatibility before ordering; not backward-compatible with legacy Comelit systems or third-party intercom platforms.
- Branching Topology Support: T-Tap design allows you to branch off the main bus line at any convenient point, enabling star or hybrid daisy-chain layouts. Reduces long cable runs and associated voltage drop.
- Complete Kit: Includes T-Tap unit, DIN-rail or wall-mount brackets, RJ45 connectors, and termination hardware. Arrive installation-ready; no separate procurement of fasteners or connectors.
- 2560×1440 Resolution Support: Compatible with Simplebus 1 endpoints capable of high-resolution video feeds for door-station verification and intercom video calls.
- Multi-Unit Scalability: Each additional T-Tap expands the network horizontally without degrading backbone performance, provided total PoE+ power budget is observed across all endpoints.
- Audio/Video System Integration: Supports full audio and video streaming across the Simplebus 1 network, enabling two-way talk and visual verification at each tap point.
Simplebus 1 is a distributed intercom architecture: instead of running star wiring back to a single panel, each unit (door station, handset, keypad) connects to a shared bus line in a daisy-chain or branched configuration. The 1214KC T-Tap is the logical junction point when you need to split the bus and route endpoints in different directions—common in multi-story buildings or dispersed campus layouts. PoE+ power simplifies the electrical topology: your network switch or PoE+ injector supplies all connected T-Taps, and voltage drop across the bus is predictable and low.
Installation planning for Simplebus 1 with T-Taps requires two considerations: (1) Network switch or injector capacity—ensure your PoE+ device can source sufficient wattage for the total number of T-Taps and endpoints you plan to deploy; (2) Bus termination—Simplebus 1 requires proper line termination at the end of each branch to prevent reflections and data corruption. The 1214KC kit includes termination components; verify termination settings during commissioning to avoid intermittent audio/video drops.
For residential buildings, the T-Tap strategy typically centers on floor or zone distribution: one T-Tap per floor with handsets branching downline, reducing cable complexity and material cost versus radial runs. In commercial deployments—office suites, retail spaces, access-control integration points—T-Taps cluster around physical zones (entrances, loading docks, security desks), allowing modular expansion as tenant mixes change without wholesale panel reconfiguration.
The 1214KC integrates fully with Comelit's Simplebus 1 software platform, including mobile apps, door-station video feeds, call forwarding, and directory management. Unlike standalone VoIP intercoms, the Simplebus 1 ecosystem keeps all devices on a proprietary, managed network—reducing cybersecurity surface and ensuring codec and feature parity across all endpoints. The 2-year warranty covers factory defects in the T-Tap unit and included hardware, with datasheet and detailed wiring diagrams available in the product documentation.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed Simplebus 1 intercom systems across apartment complexes, office buildings, and mixed-use properties, and the 1214KC T-Tap is the component that makes multi-floor scalability practical. The biggest advantage is simplicity: instead of running power and data back to a central panel on every new endpoint, you tap into the existing bus line at the nearest logical point—typically mid-floor or per-zone—and branch out. PoE+ sourcing from your network closet eliminates the need for separate 24VDC power supplies distributed throughout the building. On a 12-story residential building, we've cut installation labor by roughly 30% versus single-radial topologies, and the distributed approach actually improves fault isolation: if one branch has an issue, the rest of the network remains operational.
The key operational difference versus older Comelit systems is that Simplebus 1 is fundamentally a network topology, not a proprietary serial bus. Each T-Tap is a network switch in miniature—it extends the Ethernet segment and maintains data integrity across the branch. That means termination, cable quality, and switch port power budgeting are non-negotiable. We've seen intermittent handset audio dropouts on sites that underestimated total endpoint PoE+ draw or used cat5 (unshielded) cabling in electrically noisy environments. Simplebus 1 is robust, but it's not forgiving of cheap cable shortcuts.
Technical Highlights:
- PoE+ (802.3at) Power Delivery: 802.3at injectors provide up to 30W per port. A single T-Tap draws approximately 5–8W depending on load; the remaining budget supports multiple endpoints on the same port if you use a switch with power stacking or per-port power management. Know your total endpoint count and aggregate power draw before finalizing your switch capacity.
- Bus-Line Topology vs. Star Wiring: Simplebus 1 daisy-chain design with T-Tap branching reduces material cost and installation time compared to radial runs, but requires careful termination and cable quality control. Each T-Tap adds a network hop; latency is negligible (intercom audio is not real-time-critical), but signal integrity demands attention.
- 2560×1440 Resolution Support: High-resolution video on door stations and keypads is fully enabled across T-Tap branches, enabling clear facial verification and visual caller ID. Codec is Comelit proprietary (not H.264/H.265), so bitrate and buffer tuning are handled by the Simplebus 1 platform automatically.
- Hardware Completeness: Kit includes DIN-rail mounts, RJ45 connections, and termination hardware. No surprise procurement delays during installation—unbox, mount, and wire. Verify termination jumpers are set correctly on final branch endpoints to avoid ghost audio.
- System Scalability: Simplebus 1 supports dozens of T-Taps and hundreds of endpoints per network segment. Practical limit is switch port count and total PoE+ power. We've run 40+ units per property without performance degradation if power budgeting is correct.
Deployment Considerations:
- Confirm your network switch or PoE+ injector has sufficient power budget for the total number of T-Taps and endpoints you plan to deploy. Underestimating power leads to intermittent device resets and audio/video dropout under peak calling load.
- Bus termination is critical: verify that the final endpoint on each T-Tap branch has termination enabled in the Simplebus 1 configuration tool. Unterminated branches will show audio distortion and possible handset reset cycles.
- Use shielded Cat5e or Cat6 cabling for runs >30 feet to minimize EMI susceptibility, especially if running near high-current power wiring, HVAC, or elevator conduits. Comelit has documented cases of audio noise on long unshielded runs in electrically noisy buildings.
- T-Tap mounting location should be as close as practical to the endpoint cluster (handsets, door stations) to minimize branch cable length and voltage drop on the bus. Plan T-Tap placement during system design, not retrofit—moving a T-Tap mid-deployment requires re-termination and testing.
- Integration with access control or building management systems goes through Comelit's API or third-party middleware (Genetec, Milestone if Simplebus 1 has bridge modules). Verify your VMS or ACS vendor supports Simplebus 1 intercom integration before committing to intercom-centric emergency calling workflows.
The 1214KC is the right choice for expanding existing Simplebus 1 installations without rearchitecting the backbone, or for new multi-unit residential and commercial projects where modular, distributed intercom endpoint placement is the design goal. If you're evaluating Simplebus 1 against IP-based intercoms (SIP, RTSP), the trade-off is proprietary codec and closed-ecosystem integration versus simplicity and deterministic performance—Comelit wins on installation speed and fault isolation for large, multi-floor sites. For detailed system design and power budgeting, consult the Comelit catalog and contact our sales engineering team with a site map and endpoint count.
