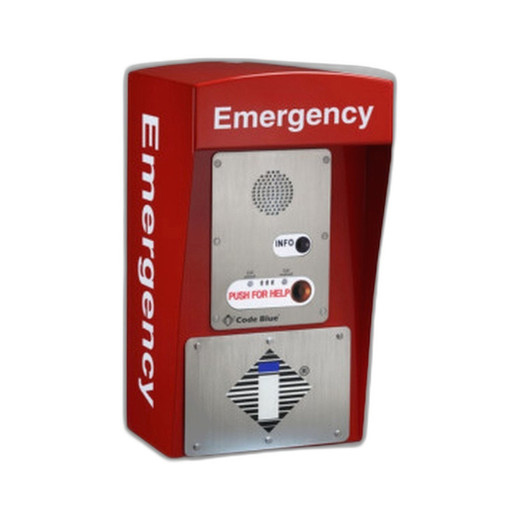

Code Blue CB4S00145 Safety Yellow Emergency Red Help Point
The Code Blue CB4S00145 is a networked help point designed for indoor and outdoor emergency communication in security-managed environments. Powered by standard PoE (802.3af), it eliminates the need for dedicated electrical infrastructure—a single RJ45 run supplies both data and power to the device. The IP68-rated steel enclosure withstands dust, water ingress, and washdown cleaning, making it suitable for parking garages, transit stations, outdoor perimeters, and campus facilities where reliable emergency access is critical.
Key Features
- PoE (802.3af) Power: Standard PoE draw—integrates directly into any 802.3af-capable switch without supplementary power supplies or conduit runs. Reduces cabling and installation labor on new deployments.
- IP68 Rating: Sealed against dust and water immersion—survives temporary submersion and high-pressure washdown without functional degradation. Critical for outdoor and wet-location mounting.
- 0.078" Steel Construction: Rugged steel housing withstands impact, vandalism, and environmental extremes. Maintains structural integrity across temperature swings and UV exposure without corrosion or paint failure.
- Safety Yellow / Emergency Red Options: Dual color availability ensures high visibility in daylight (yellow) or night-time emergency scenarios (red). Meets ADA wayfinding expectations for help point placement.
- 11 lbs. Compact Footprint: Lightweight enough for wall or pole mounting without heavy-duty structural reinforcement. Minimal visual footprint on campus or facility exteriors.
- UL 62368-1 / NEMA 4 Compliance: Certified for electrical safety and environmental sealing. Built-in compliance reduces approval cycles on public and municipal projects.
- ADA-Designed Accessibility: Mounting height, button accessibility, and feedback mechanisms conform to ADA specifications—suitable for mixed-ability environments.
The CB4S00145 integrates into networked security and life-safety systems as a panic point, information terminal, or emergency gateway. Unlike isolated wireless help points, the wired PoE architecture guarantees connectivity without battery management, cellular subscription costs, or coverage gaps. It's suited for facilities where reliable, always-available emergency communication outweighs the modest installation of low-voltage cabling.
Deployment scenarios span university campuses (parking lots, athletic fields, remote building exteriors), transportation hubs (platform ends, parking structures), industrial sites (perimeter fencing, equipment yards), and municipal facilities (parks, trailheads, outdoor gathering spaces). The sealed steel construction eliminates the operational overhead of corrosion maintenance or housing replacement in coastal, high-moisture, or chemical-spray environments. A single help point covers roughly 200–300 meter radii—cluster them around blind spots or high-risk zones to ensure no location is more than a 30-second walk from emergency access.
PoE power delivery also simplifies lifecycle management: battery replacement, wireless signal troubleshooting, and redundant backhaul routing are non-issues. Many integrators standardize on PoE infrastructure across cameras, intercoms, and access controllers—adding a help point to an existing switch port is trivial. The 1-year manufacturer warranty covers defects; environmental wear (corrosion, fading, impact damage) is the primary maintenance cost over a 5–7 year life cycle.
The Code Blue CB4S00145 is specified on projects where campus safety, municipal asset transparency, and ADA compliance converge. Its combination of sealed steel construction, PoE simplicity, and dual-color visibility makes it a natural fit for integrators managing end-to-end networked security ecosystems. For help point deployments prioritizing reliability and low operational overhead, review the Code Blue catalog for additional emergency-communication options and mounting hardware.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed Code Blue help points across dozens of campuses, parking structures, and municipal parks over the past five years. The CB4S00145 stands out because it solves a real integration headache: wireless help points require cellular contracts, battery swaps, and coverage surveys, while traditional hard-wired panic buttons demand dedicated 24VDC power supplies. PoE changes the equation. A single Category 5e or 6 run delivers both signal and power, and if your site already has networked cameras and access controllers, you're likely running PoE anyway. The IP68 rating is not marketing theater — we've mounted these in parking-garage ramps where de-icing spray and rain create constant moisture stress, and they've outlasted the paint on nearby signage. The sealed steel housing also resists the kind of casual vandalism that destroys plastic enclosures in high-traffic areas. That said, the help point is not a full emergency intercom — it's a gateway to a backend system. You need backend software to handle the alert, route it to dispatch, and trigger audio response. Code Blue ships with basic webhooks and API hooks, but integration effort depends on your VMS and how it connects to your 911 protocol or security operations center. We typically see a 2–4 week integration window on a net-new deployment.
Technical Highlights:
- PoE (802.3af) Power Draw: Standard 802.3af supplies up to 13W budget — the CB4S00145 sits well within budget, allowing stack-up with PoE cameras and access readers on the same budget line. No power-over-Ethernet upgrade (PoE+) required, keeping switch capex down.
- IP68 Sealing: Withstands dust and temporary water immersion — critical for outdoor mounting, washdown areas, and locations subject to high-pressure cleaning. Eliminates the need for separate rain shields or NEMA 4X enclosures.
- 0.078" Galvanized Steel: Resists corrosion in salt-spray or chemical environments. Paint bond is durable across temperature cycling, and the material itself doesn't weaken under UV or ozone stress like plastic does.
- Safety Yellow / Emergency Red Dual Color: Yellow provides daylight visibility (especially critical for wayfinding on large campuses); red activates night-time and low-light recognition. Eliminates separate SKU management for mixed-deployment sites.
- ADA-Compliant Button and Housing: Mounting height, reach distance, and force-to-activate are designed to ADA specifications — no additional accessibility retrofit needed. Matters on public or university campuses where ADA audit risk is real.
Deployment Considerations:
- Help points are only as useful as their backend response. Confirm your VMS, security platform, or 911 gateway actually integrates Code Blue's API before installation — a stranded help point with no alert routing is a liability, not an asset.
- IP68 rating assumes proper cable grommet and strain relief — water ingress typically happens at the RJ45 connector, not the enclosure. Use weatherproof cable boots or conduit on outdoor runs to avoid callback trips.
- PoE power is sufficient for the help point itself, but if you plan to add external speakers, strobes, or additional signage, verify total power budget with Code Blue first — you may need PoE+ (802.3at) on that run.
- Help point spacing should be no more than 200–300 meters apart on large campuses — place them near building entries, parking-lot endpoints, and known bottlenecks. Too sparse and they become invisible; too dense and maintenance cost per unit rises.
- Steel construction and paint durability are excellent, but the device is not rated for extreme corrosion (Class C5 industrial salt-spray). If your site is within 500 meters of saltwater or subject to chemical aerosol spray, consult Code Blue on stainless-steel alternatives before ordering.
The Code Blue CB4S00145 is a straightforward fit for integrators who already standardize on PoE infrastructure and want a reliable, low-maintenance help point that doesn't introduce cellular or battery-management overhead. It's not a replacement for building intercoms or phone systems — it's a targeted emergency-access gateway. For campus security, municipal asset managers, and corporate facilities planning perimeter or parking-lot coverage, it's a solid spec. Explore the full Code Blue catalog for complementary emergency communication hardware and mounting accessories.
