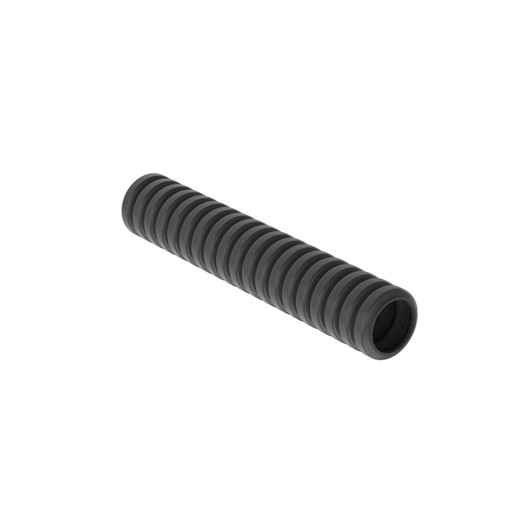

Panduit CLTS35N-C 0.35" Split Loom 100ft Black

Panduit CLTS35N-C Split Corrugated Loom Tubing

When low-voltage cable runs transition through open ceilings, cross high-traffic zones, or route near sharp rack edges, exposed jacketing degrades fast. The Panduit CLTS35N-C delivers 100 feet of 0.35-inch heat-stabilized polyamide sleeving that guards against abrasion, crushing, and impact damage in indoor commercial environments. The split-wall corrugated design opens lengthwise for retrofit installations—slide existing cable bundles into the loom without disconnecting terminations or pulling new home-runs. Secure with push-mount ties, adhesive backing, or snap-in bases depending on the substrate. UL94-HB flame rating and RoHS compliance meet baseline code requirements for plenum-adjacent pathways and IT infrastructure builds.

Key Features

• 0.35" (8.89 mm) inner diameter accommodates bundled Cat6, coax, and 18 AWG power in a single protected sleeve
• 100-foot continuous length reduces mid-run splicing and waste on rack-to-rack or camera drop installations
• Split corrugated wall opens for tool-free cable insertion—no need to disconnect RJ45, BNC, or power connectors during retrofit
• Heat-stabilized Polyamide 6 construction maintains flexibility and crush resistance from 0°C to 50°C operating range
• UL94-HB flammability rating satisfies NEC 300.22(C) requirements for non-plenum cable protection in commercial spaces
• Corrugated profile resists pinch points and provides bend relief at 90° transitions and rack entry ports
• Black colorway blends with standard IT infrastructure and hides dust accumulation in open-ceiling deployments
• RoHS-compliant formulation eliminates lead and restricted substances for municipal and federal project spec compliance

The CLTS35N-C uses heat-stabilized Polyamide 6, a semi-crystalline thermoplastic engineered for dimensional stability across temperature swings and repeated flexing cycles. Unlike non-stabilized nylon that embrittles under sustained UV or heat exposure, the HS-PA6 formulation in this loom maintains its mechanical properties through years of service in climate-controlled telecom rooms, server halls, and above-grid commercial ceilings. The corrugated wall geometry distributes compressive loads—protecting cable bundles from chair casters, ladder impacts, or accidental foot traffic in accessible ceiling plenums. The 0.35-inch inner diameter is sized for 3–5 Cat6 cables or a hybrid bundle (two Cat6 + one RG6 coax + one 18/2 power), making it a go-to for IP camera drops that combine data, auxiliary power, and alarm I/O in a single protected run. Wall thickness and corrugation pitch balance flexibility with cut-through resistance: the loom bends to a 2-inch radius without kinking, yet resists puncture from wire ties cinched directly over the sleeving.

Installation leverages the split-wall design. Open the corrugation along its lengthwise seam, lay the cable bundle inside, and press the edges together—the loom stays closed under normal handling but reopens if you need to add or remove a conductor mid-run. For permanent securement, use Panduit push-mount cable ties at 12–18 inch intervals on vertical or overhead runs; the ties compress the split seam and anchor the loom to J-hooks, cable tray edges, or strut channel. Adhesive-backed mounts work on smooth drywall or metal surfaces where drilling isn't an option. In rack environments, route the sleeving through 1U or 2U horizontal cable managers to protect the transition from patch panel to switch—corrugated loom absorbs the repeated plug/unplug stress that would otherwise fatigue cable jackets at the bend point. The 100-foot length is ideal for IDF-to-IDF trunking or perimeter camera loops; cut to length with diagonal cutters (slice between corrugation ribs for a clean edge that won't snag during insertion). Common deployments: protecting Cat6 risers in open-ceiling retail spaces, shielding coax/power hybrids on building-mounted PTZ cameras, bundling alarm panel home-runs in electrical rooms, and organizing server-rack patch cables routed behind vertical cable managers.

The UL94-HB flame rating indicates the material self-extinguishes when the ignition source is removed and burns at a rate below 40 mm/min for samples under 3 mm thick—acceptable for cable protection in non-plenum spaces per NEC Article 300. This loom is not suitable for air-handling plenum installations (use Panduit's plenum-rated CLT series instead), but it meets the requirement for "additional mechanical protection" cited in 300.4 and 725.135 for low-voltage cabling exposed to physical damage. For integrators spec'ing municipal or GSA projects, RoHS compliance ensures the material passes lead-free and restricted-substance audits without requiring exemption paperwork. The corrugated black finish is a practical choice for visible runs—dust and fingerprints disappear against the matte surface, and the low-profile corrugation won't collect debris the way smooth conduit end-caps do in dusty warehouses or production floors.
