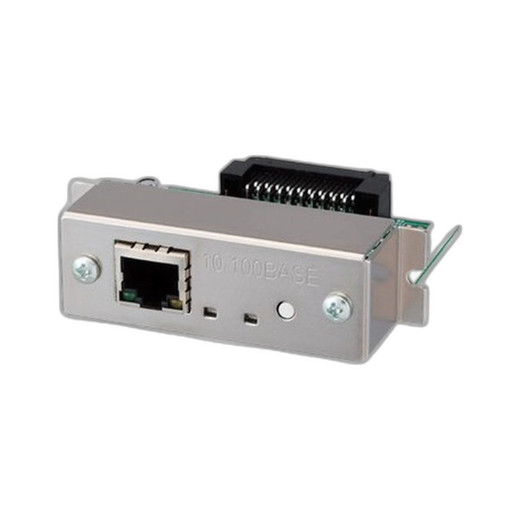

Citizen IF1-EFX1 Ethernet XML Interface

Overview

The Citizen IF1-EFX1 is an Ethernet interface card that adds direct network connectivity to Citizen CT-S6XX and CT-S8XX thermal printers via XML command protocol. Deploy this when you need to integrate barcode and receipt printers into warehouse management systems, point-of-sale networks, or logistics platforms that communicate over standard Ethernet rather than serial or USB. The IF1-EFX1 eliminates dedicated printer queues and enables centralized print job distribution across multiple print stations — a significant efficiency gain in high-volume picking, packing, and shipping environments where print commands originate from WMS or ERP systems.

Compatibility

The IF1-EFX1 is designed for Citizen CT-S6XX series (compact thermal printers) and CT-S8XX series (mid-range thermal printers). It also supports CL-S400DT, CL-S6621, and CL-E720 printer models. The interface speaks XML natively, allowing direct integration with any WMS or backend system capable of sending HTTP or socket-based XML print requests — no proprietary drivers or print spooler software required on the network side. Verify your specific printer model against the compatibility list before ordering; the IF1-EFX1 is a hardware interface card, not a software retrofit.

Installation Notes

The IF1-EFX1 installs as an internal interface card into the expansion slot on compatible Citizen thermal printers. Installation requires powering down the printer, removing the interface panel, seating the card firmly, and restoring power. Network configuration (IP assignment, DHCP, or static addressing) is performed via the printer's web interface or local display panel after installation. Ensure your network infrastructure supports the printer's IP range and that firewall rules permit outbound HTTP/XML traffic from the print station to your WMS or label server. No external power is required — the IF1-EFX1 draws power from the printer's internal 24V rail.
