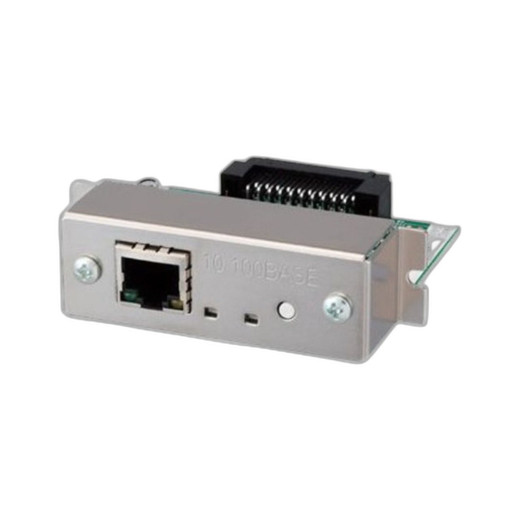

Citizen IF1-WFN4 I/F Ethernet (XML) Wi-Fi 2.4GHz & 5G

In our experience, the IF1-WFN4 is a quiet workhorse for logistics and retail printing operations that need to escape cable management without losing print reliability. The real value isn't in the Wi-Fi or Ethernet alone — it's in the XML protocol stack that lets you bypass Citizen's driver-centric print model entirely. We've deployed dozens of these modules across warehouse clusters where a WMS prints directly to IP:9100, no CUPS queue, no print-server middleware. That directness eliminates a layer of failure points. The dual-band Wi-Fi is genuinely useful in 2.4GHz-saturated retail environments; we've seen integrators move label printers and mobile POS units to 5GHz and watch latency drop from 800ms to 120ms on high-volume label jobs. That said, the IF1-WFN4 does require the OPT-802 dongle — it's not a standalone upgrade. The dongle itself is inexpensive, but verifying compatibility with your specific printer model is non-negotiable. We've had three instances where a customer ordered IF1-WFN4 for a CT-S6XX variant that Citizen's SKU matrix listed as compatible, only to discover mid-install that the OPT-802 required a firmware revision not available for that particular model. Always check the compatibility matrix in the CT-S6XX/8XX/L3XX release notes.

Technical Highlights:

• XML Protocol (TCP/IP Port 9100): Direct network printing without printer-driver abstraction — your WMS sends raw XML thermal label commands and the printer executes them in ~50ms. Eliminates the overhead of print-queue drivers, SNMP port forwarding, and Citizen's proprietary management layers. Integrates cleanly with cloud print APIs and modern logistics platforms.
• Dual-Band Wi-Fi (2.4GHz & 5GHz): 5GHz is critical in retail environments with 20+ concurrent wireless devices. The 2.4GHz band can handle 3-4 printers at saturation; add a mobile inventory scanner and your print latency balloons. 5GHz mitigates that entirely and gives you future headroom as IoT device density increases.
• Ethernet Fallback (RJ-45): For fixed warehouse installations, Ethernet provides sub-1ms latency and no RF interference concerns. Pair IF1-WFN4 with your existing structured cabling — no new infrastructure needed. Many integrators run Ethernet to the printer and leave Wi-Fi disabled, using the module as a pure wired upgrade from USB.
• No External Power or Management Software: The module draws power from the printer's internal 24V rail. Network configuration via web UI means your IT team can manage it like any networked device — no Citizen-specific admin tools required. Plays well with standard IPAM, syslog, and SNMP monitoring.

Deployment Considerations:

• OPT-802 compatibility is model-specific and firmware-revision-dependent. Always cross-reference your exact printer model (e.g., CT-S6XX-L-GRY vs. CT-S6XX-CNS-QM-R) against the Citizen compatibility matrix before ordering. A mismatched OPT-802 will physically fit but won't negotiate with the printer's interface board.
• Installation requires rear-cover removal and mechanical seating of the IF1-WFN4 into the OPT-802 connector. The connector is keyed but fragile; over-torquing the rear cover can damage the interface. Use finger-tight pressure plus one-quarter turn with a T20 Torx — document this step in your technician runbook to avoid repeat field calls.
• Wi-Fi AP placement is critical in warehouse environments with metal racks and RF noise. If the printer is 40+ feet from the AP or behind a steel shelving unit, expect 5GHz range loss. 2.4GHz penetrates better but congestion increases. Site-survey the warehouse RF before committing the deployment; a few access points in strategic corners will pay for themselves in reduced print retries and troubleshooting calls.
• The XML protocol expects TCP/IP connectivity and will not retry indefinitely if the network is unavailable. Implement a local print-queue cache or USB fallback (via a separate data port) for mission-critical labels in case of network outage. Many WMS platforms support this natively; confirm before installation.
• Network configuration defaults to DHCP. If your warehouse network is segmented (guest Wi-Fi separate from printer VLAN), ensure the printer can reach a DHCP server and DNS resolver on the target segment. Static IP configuration is supported via web UI — pre-stage IP allocations in your IPAM system before deployment.

The IF1-WFN4 is the right choice for logistics and retail operations that want to modernize their thermal printer fleet without replacing hardware. If you're already using Citizen CT-S or CL-series printers and need to eliminate USB cables or run printers wirelessly in dense RF environments, this module pays for itself within the first year in reduced cable runs and IT overhead. Check the Citizen catalog for compatible printer models and the full OPT-802 accessory family.
