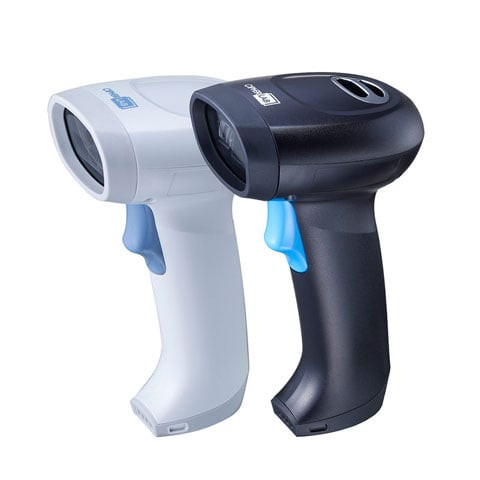

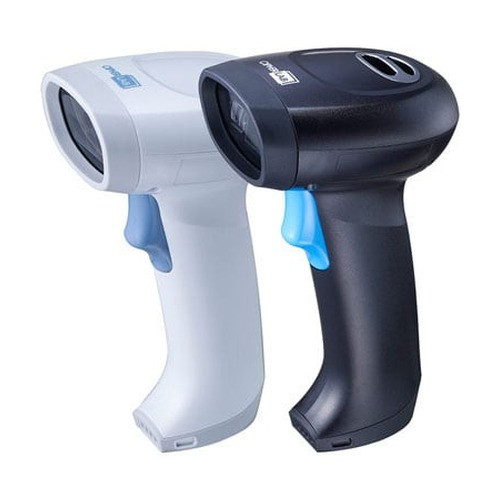

CipherLab A2504S2BSR001 1D Linear Imager Barcode Scanner

The CipherLab A2504S2BSR001 is a 1D linear imager barcode scanner engineered for warehouse, logistics, and retail environments requiring reliable handheld data capture with wireless connectivity. This scanner combines a linear imaging engine with Bluetooth wireless capability, delivering consistent performance across standard barcode formats without the complexity of 2D imaging systems.

Overview

The A2504S2BSR001 scanner is built around a 1D linear imager scan engine that captures barcode data at 578 scans per second, ensuring rapid throughput in high-volume scanning operations. The device operates in both auto-sense and continuous scan modes, adapting to operator workflow and environmental conditions. Its 3 mil optical resolution provides reliable capture of standard and smaller barcode formats, while the 15% minimum print contrast requirement ensures compatibility with real-world label quality variations common in warehouse settings.

Key Features

• 1D Linear Imager Scan Engine: Optimized for traditional barcode symbologies without the cost overhead of 2D imaging
• 578 Scans Per Second: High-speed capture supports rapid inventory transactions and checkout applications
• Bluetooth Wireless Connectivity: Enables cordless operation within standard wireless range, reducing cable management and operator tether requirements
• IP65 Ruggedness Rating: Dust and water-resistant design tolerates warehouse moisture, cleaning protocols, and moderate environmental exposure
• 3 Mil Optical Resolution: Captures codes at 3 mil resolution; scan ranges extend to 10 cm for Code 39 3 mil, 14 cm for Code 39 5 mil, 38 cm for UPC-A 13 mil, and 60 cm for Code 39 20 mil
• Broad Symbology Support: Reads Code 39, Code 128, UPC/EAN, GS1-128, Codabar, Code 93, Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, GS1 DataBar (RSS), MSI, Plessey, Telepen, ISBT-128, Italian and French Pharmacodes, Code 11, and additional linear formats
• Auto-Sense and Continuous Scan Modes: Flexible scanning modes accommodate stationary and handheld workflows
• Available in Black and White Housing: Color options support different operational environments and branding requirements

Scan Range Performance

The A2504S2BSR001 delivers variable scan distances based on barcode density and print quality. Code 39 at 3 mil resolution reads from 3–10 cm (1.2–3.9 inches), while 5 mil barcodes extend to 2–14 cm (0.8–5.5 inches). UPC-A at 13 mil provides extended reach of 0.5–38 cm (0.2–15 inches), and larger 20 mil Code 39 barcodes read from 1.5–60 cm (0.6–23.6 inches). This range flexibility supports diverse label placement scenarios—from close-proximity checkout to inventory tag reading at distance.

Integration and Deployment

The scanner interfaces via Bluetooth, eliminating hardwired RS232 cable constraints common in legacy systems while maintaining serial-level data reliability. The IP65 rating provides confidence in warehouse environments where moisture, dust, and occasional liquid exposure occur during daily operations. Operators benefit from cordless mobility, and IT teams avoid cable routing overhead in dynamic warehouse layouts.

The model A2504S2BSR001 is engineered for logistics centers, retail receiving, inventory management, and light manufacturing operations where 1D barcode capture is the primary scanning requirement and wireless convenience outweighs 2D imaging needs.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've evaluated the CipherLab A2504S2BSR001 during logistics center deployments where standard barcode capture—not 2D imaging—is the core requirement. This linear imager scanner delivers straightforward 1D symbology reading with Bluetooth convenience, making it a pragmatic choice for organizations moving away from corded scanners without overbuying 2D capabilities they don't use.

Technical Highlights:

• 578 scans/second throughput: Meets real-time checkout and fast-moving inventory operations without latency hiccups
• Bluetooth wireless: Eliminates RS232 tether; pair directly to mobile devices, tablets, or wireless collection terminals
• IP65 dust and water resistance: Survives moisture from hand washing, cleaning operations, and humid dock environments without protective enclosures
• Variable scan range (3–60 cm): Single device accommodates both close-proximity UPC reading and medium-distance inventory tag capture
• 15% minimum print contrast: Realistic tolerance for worn labels, thermal printer variations, and real-world label quality

Deployment Considerations:

• Confirm Bluetooth pairing stability with your terminal infrastructure before full fleet deployment; test in your specific RF environment
• 1D-only capability means QR codes and 2D barcodes require alternative scanners—plan labeling strategy accordingly
• IP65 rating is splash-resistant, not submersible; do not intentionally immerse the device
• Monitor barcode print quality in receiving areas; sub-15% contrast labels will fail capture and create workflow friction

The A2504S2BSR001 is a solid performer for organizations with mature 1D barcode ecosystems and wireless infrastructure. It eliminates cable clutter, operates reliably across standard logistics workflows, and justifies its cost through cordless convenience and industrial-grade durability. Pair it with a clear labeling and barcode density audit to maximize capture reliability.
