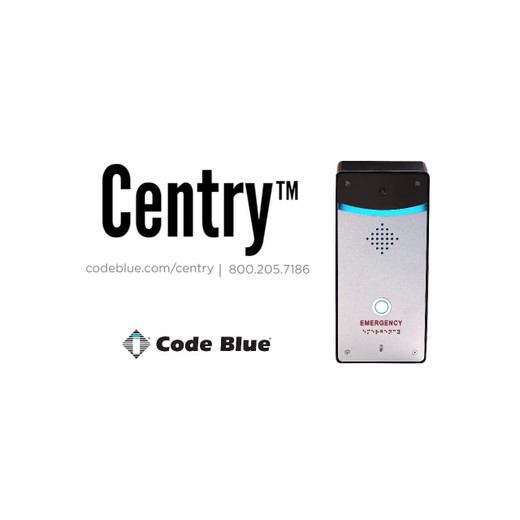

Code Blue CBCE00002 Centry SB MBSL Remote Camera

Overview

The CBCE00002 is a 1080p fixed help-point camera designed for outdoor emergency call stations, campus safety checkpoints, and remote perimeter monitoring. It combines 2MP imaging with two-way communication capability, mounting in either surface or flush configurations for permanent installation in high-traffic security zones. The unit draws power via standard PoE (802.3af), eliminating the need for separate power infrastructure at the deployment site.

Compatibility

This camera integrates into any IP surveillance infrastructure supporting ONVIF-compliant video management systems. The three Ethernet ports and contact closure inputs (3 IN, 3 OUT) allow integration with emergency call systems, access control panels, and network-based event logging. Wired Ethernet architecture ensures stable, low-latency connectivity required for real-time incident response in campus safety and industrial perimeter applications.

Installation Notes

Surface mount dimensions: 4.75" W × 10.25" H × 2.875" D. Flush mount dimensions: 4.5" W × 10" H × 3.125" D. Operating temperature range of -40°C to 70°C supports deployment across arctic research facilities, desert industrial sites, and temperate commercial zones without thermal derating. Built to NEMA 3 standard with conformal-coated PCB for environmental durability. Unit weighs 4 lbs (1.81 kg). Three contact closure inputs and outputs support hardwired alarm integration and button-press event triggering to external systems.

What's in the Box

• 1× Code Blue CBCE00002 camera unit
• Mounting hardware (surface and flush brackets)
• Installation documentation
