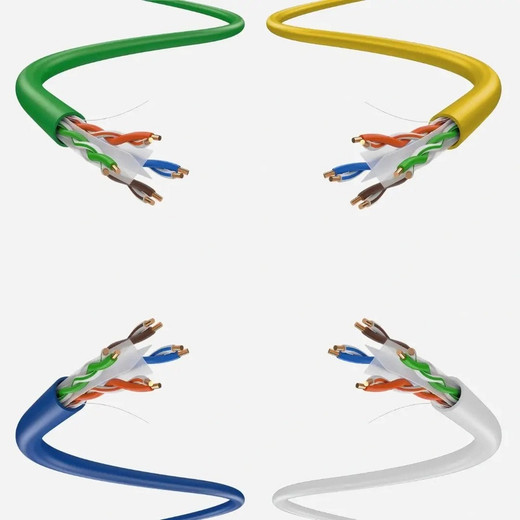

Panduit PFP6X04WH-UGZ Category 6 F/UTP CMP Cable

Overview

The Panduit PFP6X04WH-UGZ is a 1000ft spool of Category 6, 4-pair, 23 AWG, Foil Twisted Pair (F/UTP) cable. Designed for horizontal cabling in commercial buildings, its CMP (Plenum) rating ensures compliance with fire safety codes for air-handling spaces. This cable supports data rates up to 1 Gbps and bandwidth up to 250 MHz, making it suitable for standard IP surveillance network infrastructure, VoIP, and general data transmission where plenum-rated cable is mandated.

Compatibility

This cable is designed for use with standard RJ45 connectors and is compatible with all Category 6 and Category 5e networking equipment and patch panels. It is suitable for deployment with network switches, routers, IP cameras, and access control systems that utilize standard Ethernet connectivity. Ensure connectors and termination tools are rated for 23 AWG cable.

Installation Notes

The cable features a foil shield (F/UTP) to reduce electromagnetic interference (EMI) and crosstalk, requiring proper grounding during termination to be effective. Maintain a minimum bend radius of 4 times the cable diameter during installation and 8 times the diameter after installation to prevent damage. The CMP rating means it can be run in plenum spaces without conduit, simplifying installation in air-handling environments.

What's in the Box

• 1x 1000ft spool Panduit PFP6X04WH-UGZ Category 6 F/UTP CMP Cable
