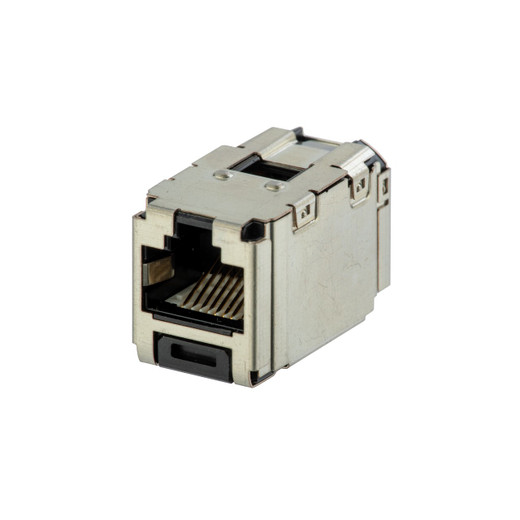

Panduit CCS6X88BL Category 6A Shielded RJ45 Jack Module
The Panduit CCS6X88BL is a Pan-Net® Cat 6A shielded (STP) 8-position, 8-wire universal coupler jack module designed to terminate 4-pair twisted pair cable in the 22–26 AWG range. Built for structured cabling deployments where shielding matters — think high-density PoE environments, hospital wings, or industrial floors with EMI exposure — this module is 100% factory tested to exceed ANSI/TIA-568.2-D and ISO 11801 Category 6A channel requirements with up to two couplers per channel.
Overview
Terminating shielded Cat 6A isn't where you want to discover a component that just meets spec — you want one that exceeds it. The CCS6X88BL is individually serialized for traceability, which matters on large structured cabling installs where post-installation certification and moves/adds/changes need audit trails. It integrates directly with Panduit's Pan-Net copper cabling line, fitting Mini-Com Modular Patch Panels and Faceplates without adapters or conversion hardware.
For installers running structured cabling systems in commercial buildings, data centers, or security-integrated campuses, this jack handles the full PoE power spectrum — from basic 802.3af (15.4W) through PoE+ (802.3at) up to PoE++ (802.3bt Type 3 and Type 4) — making it a forward-compatible choice as high-wattage PoE loads (PTZ cameras, access control panels, WAPs) become standard on Cat 6A runs.
Key Features
- Exceeds TIA-568.2-D and ISO 11801 Cat 6A with 2 couplers per channel: Most installations use a single coupler; supporting two per channel without falling below spec gives you flexibility for patching configurations that would fail on a just-meets-spec component. Verified by 100% factory testing, not sampled-lot testing.
- PoE++ (802.3bt Type 3 & Type 4) rated: Supports the full IEEE PoE wattage stack including the highest-draw 802.3bt Type 4 devices. If you're running powered devices that pull 60–90W over structured cabling, this module won't be the weak link. Pair it with a PoE switch sized for your total port budget.
- 2,500 connection cycles: IEEE 802.3af/at/bt rated for 2,500 mating cycles per jack — relevant on patch panels that see frequent moves in a managed enterprise or colocation environment, where a lower-cycle jack would degrade contact resistance over time.
- 22–26 AWG compatibility: Handles the full range of common Cat 6A conductor gauges. Thicker 22 AWG solid conductors for long horizontal runs and thinner 26 AWG stranded for short patch segments both terminate cleanly — no need to stock separate jacks for different cable types.
- Individual serialization for traceability: Each jack carries a unique serial number, so during certification sweeps or warranty claims you can trace a failing connection back to a specific manufactured unit. On large campus installs with hundreds of terminations, this is meaningful documentation infrastructure.
- Compliant with UL 1863 and UL 2043: UL 2043 specifically covers plenum air-handling spaces — if your horizontal runs pass through ceiling plenums (common in commercial office and healthcare builds), this jack is listed for those environments without requiring conduit or a separate plenum housing.
- RoHS compliant: Meets EU Restriction of Hazardous Substances requirements — relevant for projects with government, healthcare, or international procurement standards that mandate RoHS documentation in submittals.
- Mini-Com Modular Panel and Faceplate compatible: Drops directly into Panduit Mini-Com infrastructure. If your patch panel or faceplate install is already Mini-Com based, no new mounting hardware needed — the module seats and locks as designed.
Integration & Compatibility
The CCS6X88BL installs into Panduit Mini-Com Modular Patch Panels and Faceplates. It terminates 4-pair, 22–26 AWG shielded twisted pair cable — verify that your field cable is STP and within that AWG window before ordering in quantity. The module meets IEC 60603-7 connector mechanical and electrical requirements, which is the international standard for 8-position modular connectors and is commonly called out in international project specifications. For Cat 6A structured cabling projects requiring third-party certification (Fluke DSX2-8000, for example), the documented standards compliance gives you the paper trail the test report references.
What's in the Box
- 1x Panduit CCS6X88BL Cat 6A Shielded RJ45 Jack Module (black)
Frequently Asked Questions
Q: What cable gauge range does the CCS6X88BL support?
A: The CCS6X88BL terminates 4-pair twisted pair cable in the 22–26 AWG range. This covers both standard solid-conductor horizontal cable (typically 23 AWG Cat 6A) and thinner stranded patch cable gauges.
Q: Does the CCS6X88BL support PoE++ (802.3bt)?
A: Yes. The jack is rated to support IEEE 802.3af, 802.3at, and 802.3bt Type 3 and Type 4 — the full current PoE standard range, including the highest-wattage 802.3bt Type 4 devices.
Q: Is the CCS6X88BL suitable for plenum ceiling installations?
A: Yes. The module is listed under UL 2043, which covers use in plenum air-handling spaces. This means it can be installed in open ceiling plenums without requiring conduit in most jurisdictions — verify with your local AHJ.
Q: What panels and faceplates does the CCS6X88BL fit?
A: The CCS6X88BL is compatible with Panduit Mini-Com Modular Patch Panels and Mini-Com Faceplates. It is not a universal-fit module across all brands — confirm your existing infrastructure is Mini-Com based before ordering in volume.
Q: How many mating cycles is the CCS6X88BL rated for?
A: 2,500 connection cycles, as rated under IEEE 802.3af/at and 802.3bt standards. This is relevant for patch panel ports that see frequent repatching in managed or colocation environments.
Q: What standards does the CCS6X88BL meet?
A: The CCS6X88BL exceeds ANSI/TIA-568.2-D and ISO 11801 Category 6A channel requirements (with up to 2 couplers per channel), meets IEC 60603-7, is listed under UL 1863 and UL 2043, and is RoHS compliant.
The spec that matters most on the CCS6X88BL in a high-density PoE environment isn't the Cat 6A rating — it's the 802.3bt Type 3 and Type 4 support combined with 2,500 rated mating cycles. Most installers focus on channel performance and overlook contact durability, but on a patch panel that gets repatched frequently, a lower-cycle jack will develop intermittent contact resistance long before the cable plant fails. This module is built to outlast the repatching, not just the initial certification sweep.
Technical Highlights:
- Exceeds Cat 6A channel spec with 2 couplers: Documented compliance to ANSI/TIA-568.2-D and ISO 11801 with up to two couplers in the channel — not just a single-coupler pass. This is the margin you need when your patch design routes through both a panel jack and a faceplate jack on the same run.
- PoE++ (802.3bt Type 3 & Type 4) support: The CCS6X88BL is rated for the full IEEE PoE stack. 802.3bt Type 4 tops out at 90W delivered — relevant today for multi-radio WAPs and PTZ cameras with onboard heating, and forward-compatible for whatever draws more tomorrow.
- Individual unit serialization: Every jack carries a unique serial number. On a 500-port structured cabling install, this means a failed certification port maps to a specific manufactured unit — not just a lot or batch — which simplifies warranty and punch-list resolution.
Deployment Considerations:
- This is a Mini-Com ecosystem component — it seats in Panduit Mini-Com panels and faceplates only. Before specifying in volume, confirm the panel infrastructure is Mini-Com, not a competing modular format (Leviton QuickPort, Commscope Multi-Media, etc.).
- The 22–26 AWG range covers most field scenarios, but verify your specific STP cable gauge before termination. At 22 AWG (the thicker end), IDC termination force requirements differ from 24–26 AWG — use the correct termination tool to avoid damaged contacts on the first pull.
This module is the right call for enterprise campus builds and security-integrated commercial installations running shielded Cat 6A infrastructure through Panduit Mini-Com patch panels — particularly where high-wattage PoE++ devices like PTZ cameras or powered access control hardware are in the cabling plan and contact longevity under repeated repatching is a real operational concern.
