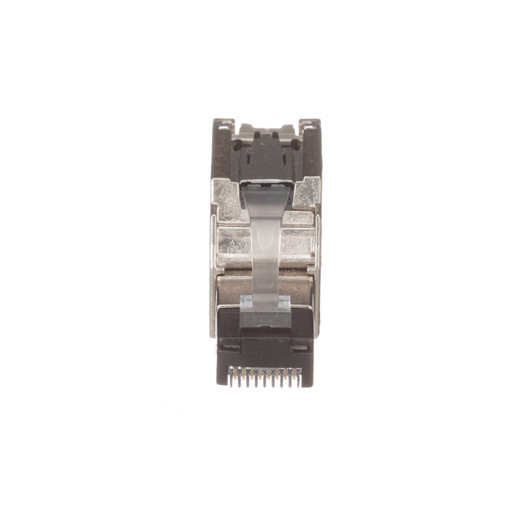

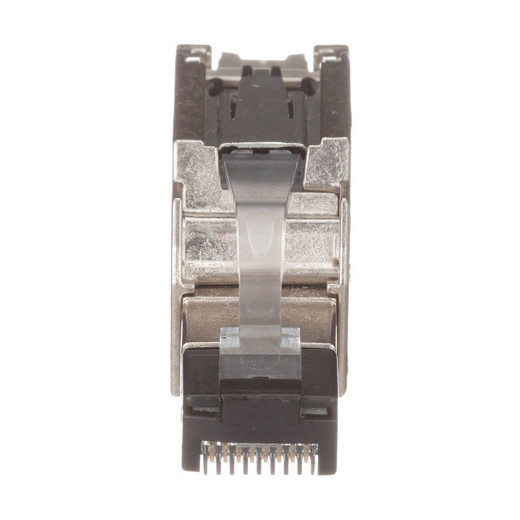

Panduit FPS6X88MTG Cat 6A Shielded Field Terminable Plug
Overview
The Panduit FPS6X88MTG is a 4-pair, shielded RJ45 field-terminable plug engineered for Cat 6A structured cabling installations where you need full channel-grade shielding without punching down to a patch panel. Rated for 22–26 AWG conductors and carrying the Pan-Net® sub-brand, it targets integrators running shielded horizontal cabling to IP cameras, access control readers, or PoE++ switches — anywhere a pre-made shielded patch cord isn't the right fit. If you're field-terminating shielded cable at device tails or equipment cabinets, this is the plug that keeps your channel compliant through the last connection.
The silver-shell construction is sold individually (Package Qty: 1) with carton packs of 50, making it practical to stock for project pulls without committing to full reels of pre-terminated assemblies.
Key Features
- Exceeds ANSI/TIA 568-C.2 Cat 6A and ISO 11801 Class EA: The FPS6X88MTG is verified with up to two field term plugs in the channel — meaning a fully field-terminated run (plug at each end) still meets Class EA. That matters when you can't use pre-made cords on either end and need the channel cert to hold.
- PoE++ / 802.3bt Type 3 and Type 4 (up to 100W): Supporting IEEE 802.3af/at and proposed 802.3bt Type 3 and Type 4, plus Power over HDBaseT up to 100 watts, this plug doesn't become a bottleneck in high-power PoE runs. Deploy it on PTZ camera feeds, wireless APs, or thin clients drawing up to 90W without re-engineering the connector.
- Meets proposed TIA Modular Plug Terminated Link (MPTL) requirements: MPTL support means you can legally run a direct horizontal cable from the panel to the end device with no intermediate outlet — an increasingly common approach in IP camera and IoT deployments where wall plates add cost and failure points.
- 22–26 AWG conductor range: Covers the full practical range of Cat 6A shielded cable diameters on the market. Whether you're working with a larger 23 AWG shielded run or a slimmer 26 AWG flex cable at a device tail, this plug terminates cleanly without adapters or special tooling changes.
- UL 94 V-0 flammability rating: V-0 is the highest flame-retardancy class for plastics under UL 94 — self-extinguishes within 10 seconds, no dripping. Required in plenum and return-air spaces under most AHJ interpretations, and expected in any facility with a serious fire-code compliance posture.
- IEC 60529 IP20 rating: Rated for indoor environments where finger-contact protection is required but dust/water ingress isn't a concern. This is a rack-room and inside-wall connector — not rated for outdoor or wet-location use without additional enclosure protection.
- Meets ANSI/TIA-1096-A (formerly FCC Part 68) and IEC 60603-7: Ensures electrical and mechanical interoperability across the installed base of RJ45 patch equipment. Relevant when mixing equipment from multiple vendors on a shared infrastructure, which is the norm in enterprise and multi-tenant commercial deployments.
- RoHS compliant: Acceptable under EU and California procurement requirements for projects with environmental compliance mandates. Specify with confidence on government, education, and healthcare jobs where RoHS is a bid requirement.
Integration & Compatibility
The FPS6X88MTG is designed for Panduit's Pan-Net® copper cabling system but terminates to standard RJ45 TIA/EIA 568-C.2 pinout — compatible with any 8P8C-compliant patch equipment. When building a structured cabling infrastructure that mixes shielded and unshielded segments, be aware that a shielded plug on an unshielded cable run defeats the shield entirely; continuity from the cable shield to the plug shell must be maintained throughout. For PoE switch installations drawing near the 100W HDBaseT ceiling, verify that both the switch port and the connected device are rated at the same PoE class — the plug supports the power level, but the link power budget is still governed by the weakest endpoint. Review your cable management plan before specifying field-term plugs at scale: MPTL runs eliminate the outlet but require accurate cable length management at the device end.
What's in the Box
- 1x Panduit FPS6X88MTG Cat 6A Shielded Field Terminable RJ45 Plug
Frequently Asked Questions
Q: Does the FPS6X88MTG support PoE++ (802.3bt) applications?
A: Yes. The FPS6X88MTG supports IEEE 802.3af (PoE), 802.3at (PoE+), proposed 802.3bt Type 3 and Type 4 (PoE++), and Power over HDBaseT up to 100 watts per the published standards compliance data.
Q: What cable gauges does the FPS6X88MTG accept?
A: The FPS6X88MTG is rated for 22–26 AWG conductors, covering the practical range of Cat 6A shielded cable available from major manufacturers.
Q: Can two FPS6X88MTG plugs be used in a single channel and still meet Cat 6A performance?
A: Yes. The plug exceeds ANSI/TIA 568-C.2 Category 6A and ISO 11801 Class EA channel performance requirements with up to two field term plugs in the channel, and meets proposed TIA MPTL requirements with up to two plugs in the link.
Q: Is the FPS6X88MTG suitable for plenum or return-air spaces?
A: The plug carries a UL 94 V-0 flammability rating, the highest self-extinguishing class under UL 94. Confirm with your local AHJ and installation requirements, as plenum suitability depends on the full cable assembly and conduit/pathway, not the connector alone.
Q: Is the FPS6X88MTG RoHS compliant?
A: Yes. The FPS6X88MTG is listed as RoHS compliant per the product specifications.
Q: What is the IP rating of the FPS6X88MTG?
A: The FPS6X88MTG carries an IEC 60529 IP20 rating — suitable for indoor protected environments. It is not rated for outdoor or wet-location use without additional enclosure protection.
The FPS6X88MTG is the plug I spec when a job calls for MPTL runs to IP cameras or high-watt PoE devices and pre-made shielded cords won't reach cleanly. The 22–26 AWG range is broad enough to handle virtually any Cat 6A shielded cable diameter without a second SKU, and the dual-plug channel certification means you're covered on both ends of the run without chasing a derating waiver from your channel tester.
Technical Highlights:
- PoE++ / HDBaseT 100W support: Verified for proposed 802.3bt Type 3 and Type 4 — handles the full 90W device power draw without becoming the weakest link in a high-power PoE run. Relevant when terminating to PTZ cameras or wireless APs drawing near the Class 6 ceiling.
- Dual-plug Class EA channel certification: Exceeds ANSI/TIA 568-C.2 Cat 6A and ISO 11801 Class EA with two field term plugs in channel. That's a real differentiator — many field-term plugs derate the channel when used at both ends, forcing you to patch one end instead.
- UL 94 V-0 flammability: Self-extinguishes within 10 seconds with no flaming drip — the spec AHJs look for in plenum-adjacent spaces. At 0.71 in. tall and 0.54 in. wide, it fits through standard conduit knockouts without derating the fire rating of the assembly.
Deployment Considerations:
- Shield continuity is the install gotcha: the plug shell must make positive contact with the cable's drain wire and foil shield throughout termination. A floating shield is worse than no shield — it acts as an antenna. Verify with a wiremap tester that includes shield continuity before closing up the run.
- IP20 means this is strictly an indoor, protected-location connector. If your camera or device tail exits a wall cavity into an exposed outdoor environment, you need a weatherproof boot or enclosure over the mated plug — the connector itself provides no ingress protection beyond finger contact.
Best fit for Cat 6A shielded MPTL installations in commercial security, healthcare, or industrial environments where channel-grade certification at both ends is a bid requirement and field-cut cable lengths make pre-terminated cords impractical.
