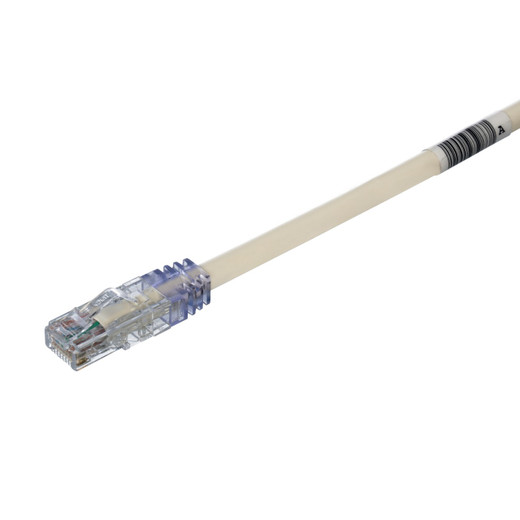

Panduit UTP6AX8 Cat 6A 8ft UTP Patch Cord

Panduit UTP6AX8 Cat 6A 24 AWG UTP Patch Cord

The Panduit UTP6AX8 delivers 10GBASE-T performance in an 8-foot Cat 6A UTP patch cord engineered for data center aggregation, server virtualization, and PoE++ security camera deployments. Built on the TX6A 10Gig platform, this 0.250-inch diameter cord uses 24 AWG solid copper conductors with integrated foil tape shielding to suppress alien crosstalk across the full 1–500 MHz bandwidth. The tangle-free latch design prevents snags during rack work and enables fast release for moves, adds, and changes—critical when you're terminating dozens of ports under deadline. Factory-installed RapidID barcodes streamline port mapping and asset tracking without aftermarket labeling.

Key Features

• 10GBASE-T Ethernet certified—exceeds ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA at all frequencies 1–500 MHz
• U/UTP construction with internal foil tape barrier limits alien crosstalk in high-density bundles
• Tangle-free latch prevents snags on adjacent cables during installation and removal
• Pre-installed RapidID barcode enables instant port mapping via Panduit RapidID software
• IEEE 802.3bt Type 3 and Type 4 PoE++ support delivers up to 90W for PTZ cameras and high-power endpoints
• 24 AWG solid copper conductors minimize insertion loss over 8-foot run
• CM flammability rating meets commercial building codes for horizontal cable runs
• T568A/T568B wiring compatibility ensures interoperability across mixed infrastructure
• UL 1863 and CSA C22.2 listed (UL File E129886), RoHS compliant

Alien crosstalk—interference between adjacent cable pairs—becomes the limiting factor in dense 10Gig deployments where dozens of Cat 6A cords run parallel in cable managers and vertical risers. The UTP6AX8 mitigates this through a bonded foil tape layer that isolates each twisted pair from external EMI without the bulk and rigidity of traditional shielded (F/UTP) designs. This construction maintains the 0.250-inch overall diameter, allowing tighter bend radii in congested rack environments while still exceeding TIA-568.2-D performance margins at 500 MHz. For security integrators running PoE++ to multi-imager cameras or long-throw PTZ units, the solid 24 AWG copper ensures low DC resistance—critical when you're pushing 60–90 watts over distance and can't afford voltage drop that triggers camera resets.

The tangle-free latch uses a flush-profile boot that prevents the release tab from catching on neighboring cords during blind insertions behind patch panels or in overhead cable trays. This small design detail cuts installation time when you're landing 48-port blocks in a ToR switch refresh or repatching surveillance VLANs during a network segmentation project. RapidID barcodes ship pre-applied to each cord, eliminating the manual labeling step and enabling instant port documentation via Panduit's mobile app—scan the cord at both ends, and the cable ID auto-populates in your DCIM or cable management database. For greenfield data center builds or large-scale camera deployments where you're landing hundreds of endpoints, this workflow eliminates transcription errors and provides an auditable record for compliance handoff.

PoE++ Type 3 and Type 4 compliance (IEEE 802.3bt) makes the UTP6AX8 the correct choice for next-generation IP cameras requiring more than the 30-watt 802.3at ceiling—multi-sensor arrays with onboard AI analytics, long-range PTZ units with IR illuminators, and environmental-rated cameras with integrated heaters all demand the 60–90 watt delivery that 802.3bt enables. The 24 AWG solid conductors provide lower DC resistance than stranded-core patch cords, reducing power loss over the 8-foot link and ensuring your endpoint receives the wattage it negotiates during the PoE handshake. For integrators managing TIA-606-B labeling standards, backbone aggregation links, or parallel processing clusters where cable traceability and 10Gig performance are non-negotiable, the TX6A platform delivers the performance headroom and deployment efficiency that keeps projects on schedule.
