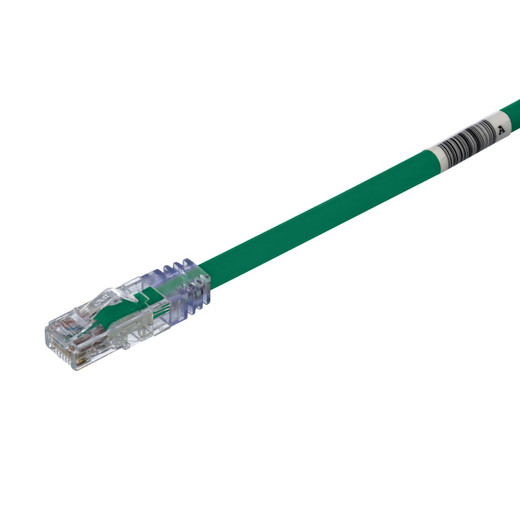

Panduit UTP6AX7MGR 10Gig Cat 6A UTP Patch Cord 7m

Panduit UTP6AX7MGR Cat 6A UTP Patch Cord

The Panduit UTP6AX7MGR delivers 10GBASE-T performance in a 7-meter Cat 6A UTP patch cord engineered for high-density data center and enterprise network deployments. Built on TX6A 10Gig architecture with 24 AWG solid copper conductors and a 0.250-inch (6.4 mm) diameter profile, this green-jacketed cable combines full 500 MHz bandwidth with RapidID pre-installed barcodes for streamlined port mapping and documentation. The tangle-free modular latch design reduces snags in congested patch panels, and IEEE 802.3bt Type 3/Type 4 PoE support enables converged power delivery up to 90W for access points, IP cameras, and edge switches.

Key Features

• 10GBASE-T Ethernet: Full 10 Gb/s transmission over 7-meter (23 ft) U/UTP construction
• Exceeds ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards across 1-500 MHz
• RapidID enabled: Pre-installed barcodes integrate with RapidID software for rapid port mapping and asset tracking
• Tangle-free latch: Snag-resistant release mechanism accelerates MACs in high-density racks
• IEEE 802.3bt Type 3 & Type 4 PoE: Supports up to 90W power delivery for converged infrastructure
• 24 AWG solid copper conductors: Designed for permanent-link punch-down terminations and long-term mechanical stability
• Green jacket: Immediate visual identification for VLAN segmentation, out-of-band management, or color-coded zones
• CM-rated: Suitable for general-purpose horizontal and riser installations per NEC Article 800

The U/UTP (unshielded twisted pair) construction uses precision-pair geometry and internal foil tape to limit alien crosstalk, ensuring compliance with ANSI/TIA-568.2-D alien NEXT and FEXT requirements at all frequencies through 500 MHz. Solid 24 AWG conductors provide the mechanical rigidity needed for IDC punch-down terminations on patch panels and consolidation points, while the modular plugs on both ends ship factory-terminated with gold-plated contacts for consistent insertion loss and return loss. This cable is wired to support both T568A and T568B schemes, eliminating field guesswork during cross-connects or retrofits. RoHS compliance and UL 1863 / CSA C22.2 listing (File E129886) satisfy procurement and code requirements for federal, healthcare, and large-enterprise installations.

RapidID barcoding integrates with Panduit's port-mapping software to generate as-built documentation during deployment—scan the cable at each end, and the software logs the physical path, eliminating manual spreadsheet errors. The tangle-free latch uses a low-profile hook that releases cleanly even in 48-port 1U patch panels where finger clearance is tight; this design cuts MACs time and reduces the risk of broken release tabs that strand cables in service. IEEE 802.3bt Type 3 and Type 4 PoE support (up to 60W and 90W respectively) future-proofs the link for Wi-Fi 6E access points, PTZ IP cameras with heaters, and compact edge switches deployed in IDF closets or perimeter enclosures. Data center use cases—server virtualization, I/O consolidation, backbone aggregation, and parallel processing clusters—benefit from the full 10 Gb/s throughput and low-latency characteristics of Cat 6A twisted-pair cabling, avoiding the cost and fragility of fiber patch cords for short-reach top-of-rack or middle-of-row interconnects.

This cable exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA transmission requirements, meets ANSI/TIA-1096-A (FCC Part 68) and IEC 60603-7 modular plug specifications, and is RoHS compliant. The 7-meter (23 ft) length suits rack-to-rack connections within a row, distribution-layer uplinks, or horizontal cross-connects in small IDF or MDF environments. Choose the Panduit UTP6AX7MGR when your deployment demands verifiable 10GBASE-T performance, integrated asset-tracking capability, and a cable robust enough for high-density, high-churn data center or enterprise network installations.
