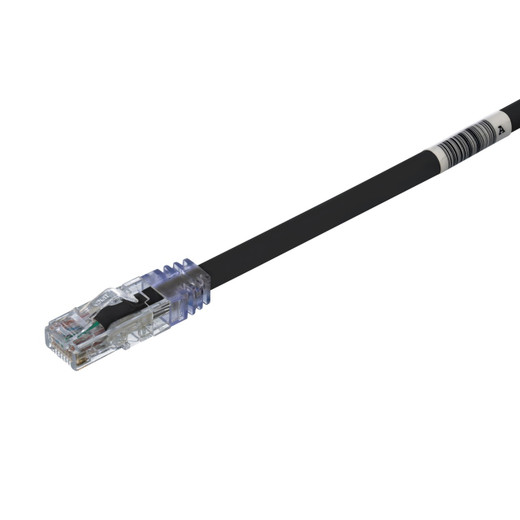

Panduit UTP6AX6BL Cat 6A UTP Patch Cord - 6 ft, Black

The Panduit UTP6AX6BL delivers full 10GBASE-T performance in a slim, rack-friendly form factor designed for high-density data center and enterprise network deployments. This 6-foot Cat 6A UTP patch cord uses 24 AWG solid copper conductors in a U/UTP construction that exceeds ANSI/TIA-568.2-D Category 6A specifications across the entire 1–500 MHz frequency range. Built for data center server virtualization, backbone aggregation, and I/O consolidation, it supports IEEE 802.3af/at PoE and PoE++ 802.3bt Type 3 and Type 4 applications up to 100 watts. The tangle-free modular plug latch prevents snags during rack work, and pre-installed RapidID barcodes enable fast, error-free port mapping and asset tracking using Panduit's RapidID software—eliminating manual documentation and reducing commissioning time on large-scale deployments.

Key Features

• 10 Gb/s Transmission: Exceeds TIA-568.2-D Cat 6A and ISO 11801 Class EA standards from 1 to 500 MHz, ensuring full 10GBASE-T Ethernet performance with headroom for alien crosstalk mitigation
• Solid 24 AWG Conductors: Unshielded twisted pair solid copper construction provides consistent impedance and lower attenuation than stranded alternatives, ideal for longer patch runs in permanent link applications
• RapidID Asset Tracking: Pre-installed barcodes integrate with Panduit RapidID software for automated port mapping, cable plant documentation, and MACs workflow—critical for DCIM and large-scale installs
• PoE++ Ready: Supports IEEE 802.3af (15.4W), 802.3at (30W), and 802.3bt Type 3 (60W) and Type 4 (100W) Power over Ethernet, enabling high-power IP cameras, PTZ devices, access points, and VoIP phones without mid-span injectors
• Tangle-Free Latch Design: Snag-resistant modular plug latch prevents accidental disconnects and cable damage during rack installation, moves, adds, and changes in congested patch panels
• Slim 0.250" Diameter: 6.4 mm overall diameter reduces bundle cross-section in high-density racks, improving airflow and simplifying cable management in 1U and 2U server environments
• Universal Wiring Compatibility: Wired to support both T568A and T568B termination schemes, ensuring compatibility across mixed infrastructure and legacy installations
• CM Fire Rating: UL 1863 and CSA C22.2 listed for riser applications; RoHS compliant for environmentally conscious deployments

The UTP6AX6BL's solid conductor design delivers superior insertion loss and return loss performance compared to stranded patch cords, making it the right choice for permanent link deployments where patch cords form part of the 90-meter horizontal channel. The U/UTP (unshielded) construction relies on tight pair geometry and internal foil tape to control alien crosstalk—meeting Class EA requirements without the ground termination and bonding complexity of shielded F/UTP or S/FTP alternatives. At 500 MHz bandwidth, this cord provides future-proof headroom beyond the 100 MHz required for 1000BASE-T, supporting 2.5GBASE-T and 5GBASE-T multi-gigabit Ethernet as well as full 10GBASE-T over the specified 100-meter channel. Compliance with ANSI/TIA-1096-A (formerly FCC Part 68) and IEC 60603-7 ensures interoperability with standards-compliant switches, servers, and patch panels from any vendor. The modular plugs terminate Panduit's TX6A™ 10Gig platform, which has been field-proven in hyperscale data centers, financial trading floors, and broadcast facilities requiring deterministic latency and zero packet loss.

RapidID integration transforms asset tracking for large deployments. Each cord ships with a unique barcode that links to Panduit's RapidID software platform, enabling installers to scan both ends of a patch cord with a mobile device and automatically generate as-built documentation—eliminating clipboards, spreadsheets, and the human error that leads to mis-patched circuits and troubleshooting delays. For data center operators managing thousands of server-to-switch connections, this workflow cuts commissioning time by 40–60% and provides a live digital twin of the physical layer that integrates with DCIM platforms like Nlyte, Sunbird, and Schneider Electric EcoStruxure. The 6-foot length is optimized for top-of-rack switch deployments where servers are patched to switches in the same rack or adjacent cold aisle—short enough to minimize cable slack and improve airflow, long enough to reach across a 42U rack from bottom-mounted PDU to top-mounted switch. PoE++ Type 4 support at 100 watts enables emerging applications like pan-tilt-zoom outdoor cameras with active IR and heaters, Wi-Fi 6E access points, and LED lighting systems—all powered over a single Cat 6A cable without dedicated AC drops. The tangle-free latch withstands repeated plug/unplug cycles during MAC operations, and the black jacket provides visual contrast against white or gray cable management for faster circuit tracing in dense environments.

Panduit's TX6A platform is the only Cat 6A system to pass the industry's 4-connector alien crosstalk test at installation densities up to 6 cables per inch, validated by third-party ETL testing to TIA-568.2-D Annex E. This UTP6AX6BL patch cord ships in cartons of 10, with each cord individually bagged to prevent shipping damage and contamination—critical for maintaining the sub-35dB return loss required for 10GBASE-T link margins. Pair it with Panduit Mini-Com TX6A PLUS jacks, NetKey flush-mount faceplates, and PatchRunner cable managers for a complete, warrantied structured cabling solution that meets data center Tier III and Tier IV uptime requirements.
