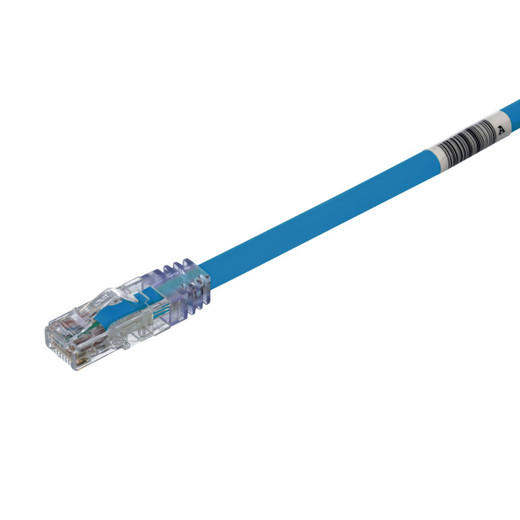

Panduit UTP6AX6BU Cat 6A 10Gig Patch Cord
The Panduit UTP6AX6BU is a 6-foot Cat 6A UTP patch cord engineered for 10GBASE-T Ethernet installations requiring full-spectrum performance from 1 to 500 MHz. Built with 24 AWG solid copper conductors and TX6A™ high-performance modular plugs, this blue-jacketed cable delivers certified 10 Gb/s transmission with integrated alien crosstalk mitigation. Pre-installed RapidID barcodes enable automated port mapping in structured cabling deployments, while the tangle-free latch design streamlines moves, adds, and changes in high-density switching environments. PoE++ capable through IEEE 802.3bt Type 4 (90W), making it suitable for IP cameras, wireless access points, and powered devices in security and enterprise networks.
Key Features
- 10 Gb/s Certified Performance: Exceeds ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA specifications across the full 1-500 MHz bandwidth, ensuring headroom for 10GBASE-T applications.
- 24 AWG Solid Copper Construction: Solid conductors provide consistent DC resistance and superior transmission characteristics compared to stranded alternatives in permanent-link patch applications.
- TX6A™ Modular Plug System: High-performance plugs with internal foil tape shield alien crosstalk (AXT) to maintain 10G performance in densely bundled cable environments.
- RapidID Pre-Installed Barcodes: Factory-applied asset tags integrate with Panduit's RapidID software for automated port documentation, accelerating MAC workflows and reducing human error in cable tracing.
- Tangle-Free Latch: Low-profile snagless boot prevents hook-ups during cable pulls through dense patch fields, reducing connector damage and simplifying disconnects.
- PoE++ Power Delivery: Supports IEEE 802.3af (15.4W), 802.3at (30W), and 802.3bt Type 3/4 (60W/90W) for high-power PTZ cameras, multi-radio access points, and LED lighting systems.
- CM Flame Rating: UL 1863 and CSA C22.2 listed for in-building horizontal and riser installations where plenum rating is not required.
- T568A/B Wiring Compatibility: Pin-out configuration supports both wiring standards, simplifying integration into mixed-standard infrastructures.
The UTP6AX6BU's U/UTP (unshielded twisted pair) construction with 0.250-inch (6.4mm) diameter cable provides the mechanical flexibility needed for patch panel interconnects while maintaining the alien crosstalk immunity required for 10GBASE-T. Unlike stranded patch cords optimized for flexure cycles, the 24 AWG solid conductors in this cord offer lower DC resistance and tighter impedance tolerances, making it appropriate for semi-permanent links between switch ports and patch panels in equipment rooms or between consolidation points in open-office deployments. The TX6A modular plugs integrate an internal foil shield at the plug body to block near-end crosstalk coupling from adjacent cables bundled in the same pathway—a critical design feature when deploying Category 6A in high-density Top-of-Rack switching or fiber-to-the-edge architectures where 40+ cables may share a single cable manager. Solid foil tape construction limits alien crosstalk to levels well below the ANSI/TIA-568.2-D -67 dB PSANEXT limit at 500 MHz, preserving 10 Gb/s link margins even when cables are dressed in tight bundles.
In security and surveillance networks, the UTP6AX6BU serves as the final connection between PoE-capable network switches and IP cameras, intercoms, or access control panels. The IEEE 802.3bt Type 4 (90W) power delivery capability supports demanding devices like 4K PTZ cameras with integrated IR illuminators, multi-sensor panoramic cameras, and outdoor intercom stations with climate control. The 6-foot length is optimal for equipment rack to patch panel connections, cable tray drops to wall-mounted cameras in IT closets, or short horizontal runs in ceiling spaces where pre-terminated trunk cables terminate at consolidation boxes. RapidID barcodes (pre-printed on each cable) integrate with Panduit's asset management software to auto-populate switch port maps during commissioning, reducing documentation errors and enabling faster fault isolation during troubleshooting. For data center server virtualization and backbone aggregation applications, the 10 Gb/s capacity supports hyper-converged infrastructure, NVR storage array connectivity, and high-speed computing clusters where east-west traffic demands exceed traditional 1 Gb/s copper links.
Compliance with ANSI/TIA-568.2-D Category 6A and ISO/IEC 11801 Class EA ensures compatibility with standards-based 10GBASE-T switching infrastructure from Cisco, Juniper, HPE, and Dell. The cable is wired to support both T568A and T568B pin assignments, allowing integration into government (T568A-mandated) and commercial (T568B-common) installations without rewiring. UL 1863 and CAN/CSA-C22.2 certification confirms flammability performance for in-building use where NEC Article 800 permits CM-rated cables (horizontal runs in non-plenum spaces, equipment rooms, telecommunication closets). The 6-foot (1.83m) length ships as a single unit; bulk deployments are available in 10-pack cartons for volume installations.
