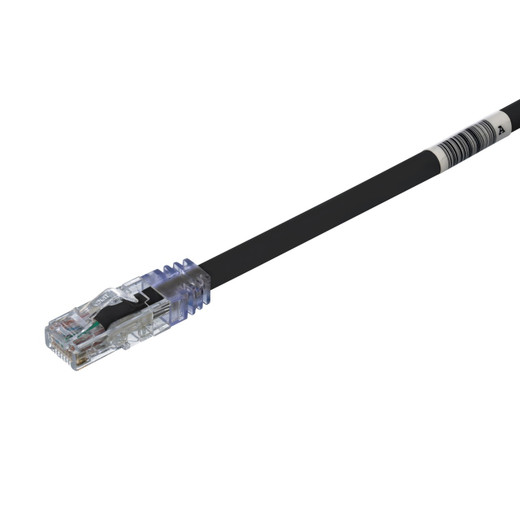

Panduit UTP6AX2BL Cat 6A 10Gig 2ft Patch Cord Black

Panduit UTP6AX2BL Cat 6A 10Gig UTP Patch Cord

The Panduit UTP6AX2BL TX6A 10Gig patch cord delivers Category 6A performance in a 2-foot solid-conductor cable engineered for high-density data center and enterprise network deployments. Built with 24 AWG solid copper and a 6.4mm diameter profile, this unshielded twisted pair cable supports 10GBASE-T Ethernet at full 10 Gb/s throughput across all 500 MHz of the Cat 6A spectrum while maintaining alien crosstalk margins that exceed ANSI/TIA-568.2-D and ISO 11801 Class EA specifications. The black jacket and compact form factor make this cord ideal for short server-to-switch runs, patch panel jumpers, and structured cabling environments where channel performance and port density both matter.

Key Features

• 10GBASE-T Ethernet support with full 10 Gb/s performance from 1 to 500 MHz
• 24 AWG solid copper conductors in U/UTP construction for consistent electrical characteristics
• Tangle-free latch design prevents snagging during moves, adds, and changes
• Pre-installed RapidID barcodes enable automated port mapping and asset management
• Supports IEEE 802.3bt Type 3 and Type 4 PoE++ (up to 90W) alongside data transmission
• Exceeds ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards across full frequency range
• Compatible with T568A and T568B wiring schemes for universal deployment
• CM-rated jacket meets NEC Article 725 requirements for commercial installations

Panduit's TX6A patch cord architecture uses solid 24 AWG conductors rather than stranded wire, a design choice that delivers tighter impedance tolerance and lower insertion loss across the 500 MHz bandwidth. The unshielded twisted pair construction relies on precise pair geometry and internal foil tape to control alien crosstalk (AXT) — the interference between adjacent cables in high-density bundles. This approach meets the stringent ANSI/TIA-568.2-D Category 6A NEXT, FEXT, and PS-ANEXT margins without requiring the grounding infrastructure that shielded F/UTP or S/FTP cables demand. The result is a patch cord that installs like Cat 5e or Cat 6 but performs at 10 Gb/s, making it practical for integrators managing mixed-generation networks or phased 10Gig upgrades.

The modular plugs on both ends feature Panduit's tangle-free latch, a low-profile boot design that prevents the plug from catching on adjacent cables during extraction. In 48-port switches and high-density patch panels, this latch geometry reduces the risk of accidental disconnects and speeds up MACs (moves, adds, changes) by eliminating the need to carefully thread cables out of congested pathways. Each cord ships with pre-installed RapidID barcodes — unique identifiers that integrate with Panduit's RapidID software for automated documentation of port-to-port connections, simplifying troubleshooting and audit workflows in enterprise data centers and telecom rooms.

The UTP6AX2BL supports IEEE 802.3bt Type 3 and Type 4 Power over Ethernet, delivering up to 90 watts to connected devices such as PTZ cameras, high-performance Wi-Fi 6E access points, LED lighting controllers, and VoIP phones. The solid copper conductors maintain low DC resistance (9.38 ohms per 100 meters maximum), ensuring that voltage drop remains within PoE++ specifications even under continuous 90W load. The cable's U/UTP construction eliminates the ground loop risk that shielded cables can introduce in PoE applications, a critical consideration for security integrators deploying outdoor cameras with long home-run cables or multi-building networks where different equipment racks may sit at different earth potentials.

At 2 feet, this patch cord length suits short-run applications: top-of-rack server connections, patch panel-to-switch jumpers, cross-connect fields, and equipment rack cable management where longer cords would create excess slack and airflow obstruction. The 0.250-inch (6.4mm) outer diameter is slim enough for high-density cable managers and narrow 1U horizontal organizers, yet robust enough to withstand repeated plugging cycles in active production environments. The black jacket color supports visual cable management schemes in data centers where color coding differentiates VLANs, zones, or client networks.

This patch cord is UL listed under file E129886, RoHS compliant, and exceeds ANSI/TIA-1096-A (formerly FCC Part 68) transmission requirements. It ships as single units with a carton quantity of 10, making it practical for small MACs or large-scale data center deployments. The TX6A product line's compliance with both T568A and T568B termination schemes ensures compatibility with legacy Panduit installations and third-party structured cabling systems, eliminating the need to verify termination standards before ordering. For integrators managing virtualized server environments, backbone aggregation switches, or parallel processing clusters where 10 Gb/s is the baseline rather than the exception, the UTP6AX2BL delivers the performance of shielded Cat 6A at the installation simplicity of UTP.
