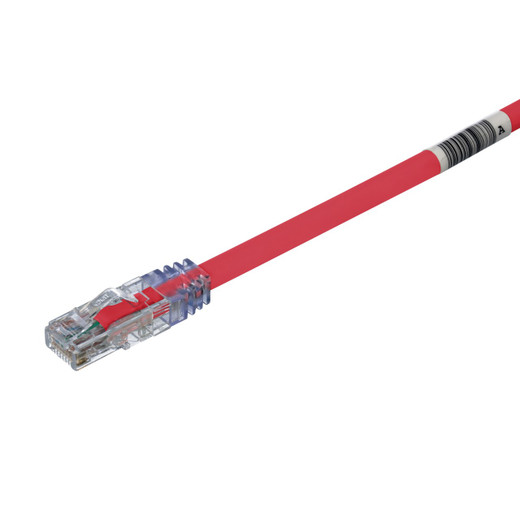

Panduit UTP6AX4RD 10G Cat 6A 4ft Patch Cord

Panduit UTP6AX4RD Cat 6A UTP Patch Cord

The Panduit UTP6AX4RD delivers 10GBASE-T performance in a 4-foot U/UTP patch cord engineered for high-density data center and enterprise network deployments. Built with 24 AWG solid conductors and integrated solid foil tape shielding, this Cat 6A cable suppresses alien crosstalk in tightly bundled server racks where dozens of cables run in parallel. The tangle-free latch design prevents snags during MACs (moves, adds, changes), and pre-installed RapidID barcodes enable automated port mapping and asset tracking through Panduit's documentation software. Supports full 10 Gb/s throughput from 1 to 500 MHz and delivers up to 90W over IEEE 802.3bt Type 4 PoE++ for powered devices.

Key Features

• Cat 6A performance: 10 Gb/s data rate, 500 MHz bandwidth, exceeds ANSI/TIA-568.2-D and ISO 11801 Class EA standards
• Solid foil tape construction: limits alien crosstalk (AXT) in high-density bundle environments with up to 48 cables per rack
• 24 AWG solid copper conductors: lower DC resistance than stranded cable for longer channel reach and consistent 10GBASE-T link certification
• Tangle-free latch: snag-resistant release mechanism speeds MAC work and prevents boot breakage during cable management
• RapidID barcode system: pre-printed labels integrate with Panduit asset management software for automated port documentation and audits
• PoE++ Type 4 capable: supports up to 90W power delivery over all four pairs for high-power wireless APs, PTZ cameras, and lighting controllers
• Universal wiring: compatible with both T568A and T568B termination schemes for mixed-standard installations

Cat 6A cabling is the backbone of modern 10-gigabit networks, and alien crosstalk—interference between adjacent cables—is the primary performance limiter in dense server racks and patch panel bundles. The UTP6AX4RD addresses this with a solid foil tape layer that isolates each twisted pair from external EMI, maintaining signal integrity even when 48 or more cables are zip-tied together in a single vertical cable manager. Solid 24 AWG conductors provide lower attenuation than stranded equivalents, which matters for 10GBASE-T links operating at the edge of the 100-meter channel limit; every dB of insertion loss saved in the patch cord translates to margin against bit errors and link flap. The 0.250-inch overall diameter strikes a balance between performance and bend radius—thick enough for robust pair geometry, thin enough to route through crowded 1U server rear panels without blocking airflow. IEEE 802.3bt Type 4 PoE++ support means this cable can deliver 90W to endpoint devices, enough to power a 4x4 MU-MIMO Wi-Fi 6E access point or a multi-sensor panoramic camera with active cooling, all over a single cable run.

In data center environments, the UTP6AX4RD is the go-to for server-to-TOR (top-of-rack) switch connections, 10G NIC uplinks, and storage array I/O consolidation. The 4-foot length is purpose-built for rack-to-rack horizontal runs in adjacent cabinets or vertical runs within a single 42U enclosure, minimizing cable slack that clutters airflow paths and complicates future adds. The tangle-free latch is a practical win: traditional RJ45 snag tabs catch on neighboring cables during extraction, forcing techs to work one-handed with a screwdriver to depress the latch while pulling—a recipe for broken boots and damaged jacks. Panduit's reinforced latch geometry releases cleanly with thumb pressure, even in fully populated patch panels. RapidID barcodes eliminate documentation lag; scan the cable label during installation, assign it to a port in the software, and you've got a live asset database that survives tech turnover and eliminates the "where does this go?" troubleshooting calls. The red jacket is part of a color-coding strategy: many shops use red for cross-connect links, management VLANs, or out-of-band KVM networks, making visual tracing faster during outages.

This patch cord exceeds ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA requirements across the full 1–500 MHz spectrum, verified through UL 1863 third-party testing (UL File E129886) and CSA C22.2 recognition. It's wired to interoperate with both T568A and T568B termination standards, so it works in Cisco, Juniper, Arista, and Dell environments without rewiring. CM (communications) plenum rating qualifies it for general building use in the United States and Canada, though true plenum (CMP) cable is required for air-handling spaces under NEC Article 800. RoHS compliance ensures it meets lead-free solder and hazardous-substance regulations for equipment destined for EU or California deployments. Panduit's TX6A platform is a tested system—when you pair this patch cord with Panduit jacks, panels, and cable, you're buying a single-vendor channel warranty that covers end-to-end 10GBASE-T certification, a requirement for many enterprise and government network RFPs.
