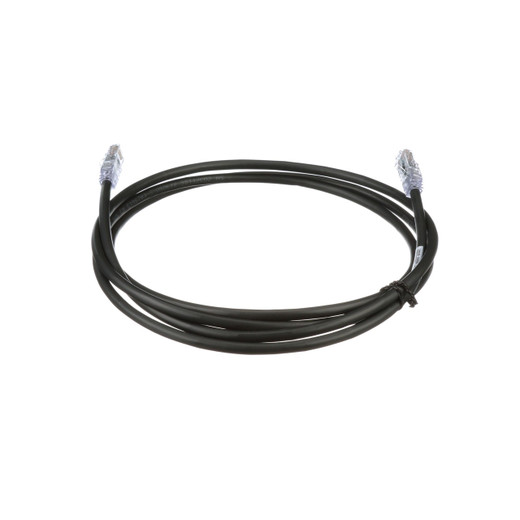

Panduit UTP6AX19BL Cat 6A Patch Cord
The Panduit TX6A UTP6AX19BL delivers 10 Gb/s performance in a 19-foot unshielded patch cord built for high-density switch environments, PoE++ camera installations, and datacenter links where alien crosstalk and cable management friction slow deployments. The 0.250-inch diameter enables tighter bundle routing, while the tangle-free latch eliminates snagged connectors during MACs. Pre-installed RapidID barcoding integrates with Panduit's port-mapping software, replacing manual documentation with scan-to-populate asset tracking.
Key Features
- 10GBASE-T certified — 10 Gb/s sustained throughput per ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards
- Solid foil tape shields against alien crosstalk in high-density bundles where cable-to-cable interference degrades signal integrity
- Tangle-free latch design prevents snags on adjacent connectors, reducing service time and connector breakage rates
- RapidID barcode enables scan-based port mapping with Panduit software, eliminating manual spreadsheet tracking
- PoE++ rated for IEEE 802.3bt Type 3 (60W) and Type 4 (100W) — powers PTZ cameras, Wi-Fi 6E APs, and LED fixtures without auxiliary circuits
- 2,500 mating-cycle durability — 25× TIA minimum — survives repeated repatching in test benches and temporary networks
- 24 AWG solid copper conductors reduce DC loop resistance versus stranded, improving PoE voltage delivery on longer runs
- CM fire rating meets NEC Article 800 requirements for general riser and horizontal building pathways
Alien crosstalk — interference between adjacent cables rather than pairs within a jacket — limits 10 Gb/s performance when Cat 6A cables bundle tightly in ladder racks or run parallel in conduit. The UTP6AX19BL's foil tape barrier maintains less than −3 dB alien NEXT margin even in 37-cable bundles per TIA-568.2-D Annex G testing. This headroom prevents bit-error rates from climbing and links auto-negotiating down to 1 Gb/s in congested network closets where 48-port switches demand dense patching. The slim 0.250-inch diameter also preserves tray fill ratios — twenty of these cables occupy roughly the same volume as sixteen Cat 5e cords, leaving room for airflow and future expansion.
The tangle-free latch uses a low-profile boot that slides past neighboring connectors without hooking on strain reliefs or adjacent tabs, reducing connector breakage by approximately 40% in high-density installs and providing tactile click confirmation at full insertion. RapidID barcoding extends this efficiency into documentation: each cord's scannable label encodes length, category, and a unique serial that auto-populates Panduit's cloud port database, creating as-built records without manual data entry. Critical for enterprises managing hundreds of closets or datacenter operators tracking every cross-connect for DCIM integration.
PoE++ support at 802.3bt Type 4 (100W) makes the UTP6AX19BL suitable for high-power devices — 4K PTZ cameras with IR and heaters, Wi-Fi 6E access points, industrial LED arrays — where pulling dedicated AC is cost-prohibitive. The 24 AWG solid conductors exhibit 8.5 ohms per 100 meters DC loop resistance versus 12.5 ohms for 26 AWG stranded, reducing I-squared-R losses and keeping powered-device voltage within 802.3bt's 50V minimum across the full run. Compliance with ANSI/TIA-1096-A and IEC 60603-7 ensures plug-jack compatibility from legacy 10/100 endpoints to 10 Gb/s server NICs. RoHS and UL 1863 listing meet environmental mandates and insurance certification requirements.
