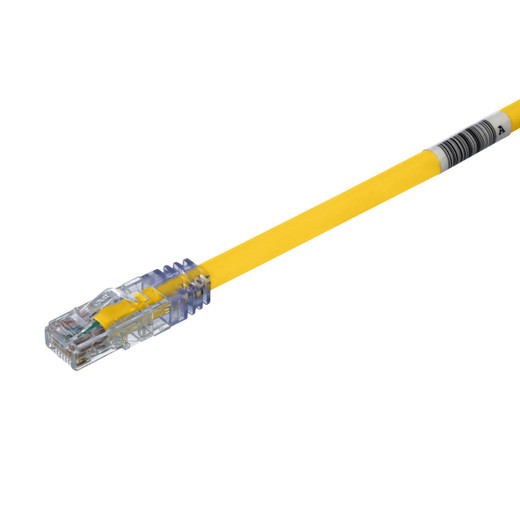

Panduit UTP6AX1.5MYL Cat 6A Patch Cord 1.5m Yellow

Panduit UTP6AX1.5MYL Cat 6A UTP Patch Cord, 1.5 m, Yellow

The Panduit UTP6AX1.5MYL is a TX6A™ 10Gig Cat 6A UTP patch cord engineered for data center and high-performance network infrastructure where 10GBASE-T Ethernet, server virtualization, and PoE++ power delivery are non-negotiable. This 1.5-meter (4.9 ft) yellow jumper is built on 24 AWG solid copper conductors in a 6.4 mm diameter U/UTP construction, delivering full 10 Gb/s throughput across all 500 MHz of Category 6A bandwidth while maintaining alien crosstalk margins that exceed ANSI/TIA-568.2-D and ISO 11801 Class EA requirements. The factory-terminated modular plugs feature Panduit's tangle-free latch design—eliminating the port-block and cable-snag issues that plague high-density switch deployments—and each cord ships with pre-installed RapidID barcodes for automated asset tracking and port mapping via Panduit's RapidID software platform.

Key Features

• 10GBASE-T certified Cat 6A performance: Exceeds ANSI/TIA-568.2-D and ISO 11801 Class EA across 1–500 MHz for full 10 Gb/s Ethernet
• 1.5-meter (4.9 ft) length in high-visibility yellow jacket for easy circuit identification in crowded rack environments
• 24 AWG solid copper conductors in U/UTP (unshielded twisted pair) construction with solid foil tape shielding to limit alien crosstalk
• Tangle-free latch design prevents cable snags and enables fast release during moves, adds, and changes in high-density installations
• Pre-installed RapidID barcodes for automated port mapping, asset tracking, and MAC-to-port discovery using Panduit RapidID software
• Supports IEEE 802.3af/at and 802.3bt Type 3 and Type 4 PoE++ applications up to 100W per port for high-power IP cameras, wireless APs, and IoT devices
• CM-rated jacket meets NEC Article 725 and Article 800 requirements for general-purpose commercial installation
• Compatible with both T568A and T568B wiring schemes; meets ANSI/TIA-1096-A (FCC Part 68), IEC 60603-7, UL 1863, and CAN/CSA-C22.2 standards

The UTP6AX1.5MYL addresses three common pain points in modern data center and enterprise LAN deployments: maintaining 10 Gb/s link integrity at scale, managing cable congestion in high-density switch fabrics, and ensuring PoE++ power delivery for IP security cameras and wireless infrastructure without voltage drop or overheating. The 24 AWG solid copper conductors provide lower DC resistance than stranded alternatives, critical for 802.3bt Type 4 (100W) PoE delivery over longer runs, while the U/UTP construction with solid foil tape keeps alien crosstalk (AXT) below the -60 dB thresholds required for 10GBASE-T operation in 48-port top-of-rack switch environments. The 6.4 mm overall diameter is thin enough to maintain airflow in packed cable managers but robust enough to survive repeated handling during MAC and troubleshooting operations.

Panduit's tangle-free latch is a practical differentiator for integrators managing hundreds of patch cords per deployment. Traditional RJ45 latches hook on adjacent cables during pull-through, forcing technicians to back out and re-route—wasting billable hours and increasing the risk of accidental link drops. The TX6A latch design uses a low-profile retention clip that releases cleanly under finger pressure and won't catch on neighboring cables or patch-panel frames, even in 1U 48-port configurations with sub-1-inch cable-bend radii. RapidID barcode integration adds another efficiency layer: instead of manually documenting switch port assignments with spreadsheet and label maker, scan the cord's barcode and the switch port with Panduit's mobile app, and the RapidID platform auto-populates your DCIM database with MAC address, VLAN, and physical location metadata. For access-control and IP surveillance projects where every camera and card reader must be mapped for audit compliance, this eliminates the documentation backlog that typically surfaces three weeks post-install when the customer demands an as-built.

The UTP6AX1.5MYL exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA insertion loss, return loss, and NEXT/PS-NEXT/ACR-F parameters across the full 1–500 MHz spectrum, verified via third-party ETL testing per TIA-1096-A. It's also RoHS compliant and UL listed under file E129886 for commercial premises wiring. The yellow jacket color is particularly useful in hybrid fiber/copper data centers where visual circuit tracing is the fastest way to isolate a failed link—yellow typically denotes management or out-of-band networks in large installations, though integrators should follow site-specific color conventions. Each cord is individually bagged and ships in cartons of 10, with UPC 61305677474 for inventory systems. This is a Pan-Net sub-brand product, part of Panduit's structured cabling portfolio engineered to meet the performance and reliability standards of enterprise IT, colocation, and commercial security integrators who can't afford to troubleshoot intermittent 10 Gb links or re-pull cables due to PoE voltage drop.
