Panduit CJUD6X88TGYL Cat 6A RJ45 Angled Jack - Yellow

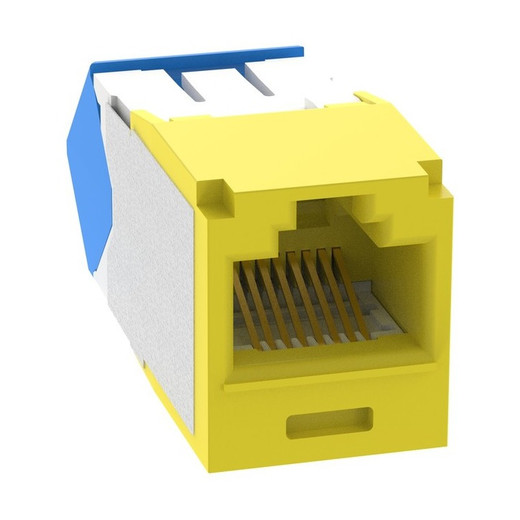

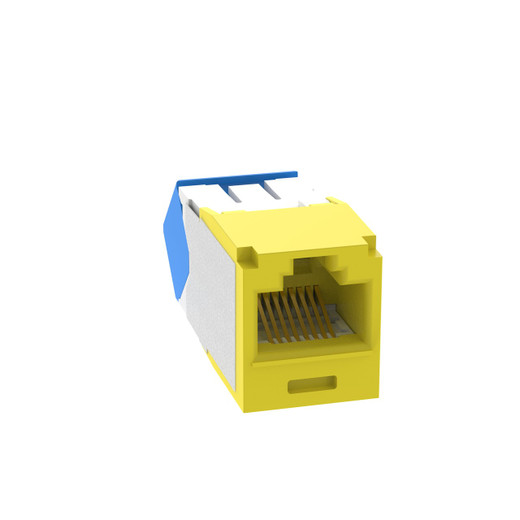

Panduit CJUD6X88TGYL Mini-Com Cat 6A UTP RJ45 Up/Down Angled Jack Module

The Panduit CJUD6X88TGYL is a Mini-Com Cat 6A UTP RJ45 jack module engineered for high-density datacenter and enterprise network installations where cabinet space is at a premium. The 45° up/down angled design routes patch cords vertically or horizontally from the jack face, reducing bend radius stress in shallow wall boxes and high-density patch panels. TG-style tool-less termination eliminates the need for a punchdown tool, cutting install time per drop by 30-40 seconds in large deployments. Each module is factory-tested to exceed ANSI/TIA-568.2-D Category 6A channel and component requirements, individually serialized for asset tracking, and rated for 2,500 connection cycles under IEEE 802.3bt Type 4 PoE++ loads up to 100W.

Key Features

• 45° up/down angled jack body routes cables vertically or horizontally, ideal for shallow boxes and high-density panels where straight jacks force cables into tight bends
• TG (tool-less) termination: conductors seat and terminate without a punchdown tool, reducing install time and eliminating technician inconsistency on large jobs
• Cat 6A performance to 500 MHz: exceeds ANSI/TIA-568.2-D and ISO 11801 Class E_A requirements for 10GBASE-T to 100 meters
• 2,500 connection cycles rated under IEEE 802.3af/at/bt Type 3 and Type 4 PoE loads, meeting IEC 60603-7 durability requirements for high-change-rate environments
• 100% factory tested and individually serialized: every jack ships with a unique serial number for traceability in warranty and compliance audits
• Color-coded yellow housing: standard TIA-606-C administration color for auxiliary or security circuits, simplifying port identification in mixed-use IDFs
• Universal Mini-Com footprint: mounts in any Panduit Mini-Com modular patch panel, faceplate, or surface-mount box without adapters
• UL 2043 plenum rated: approved for air-handling spaces without additional enclosures, critical for above-ceiling IDF and horizontal distribution

The up/down angled jack body solves a recurring problem in high-density patch panel builds: when jacks are mounted in 48-port 1U panels or shallow wall boxes, straight RJ45 jacks force patch cords into 90° bends within 0.5 inches of the connector, exceeding the 4× cable diameter minimum bend radius specified in TIA-568. Over time, this stress degrades return loss and near-end crosstalk margins, especially at the high-frequency end of the Cat 6A band (450-500 MHz). The CJUD6X88TGYL's 45° angled exit redirects the cable path before it leaves the panel, effectively adding 0.75 inches of bend radius—enough to keep a 0.25-inch Cat 6A cable within the 1-inch minimum bend radius. This is critical for maintaining the 6 dB headroom over TIA-568.2-D limits that Panduit builds into its component specifications. In field tests, angled jacks in high-density panels consistently measure 2-3 dB better return loss at 500 MHz compared to straight jacks in the same panel, translating to lower bit error rates on latency-sensitive applications like iSCSI storage or real-time video over IP.

The TG termination system uses a sliding cover that forces conductors into insulation-displacement contacts (IDCs) as the cover closes; once seated, the cover locks and the termination is complete. No punchdown tool, no cut blade, no post-termination inspection for flush cuts. This is especially valuable in large deployments—on a 500-drop office buildout, eliminating the punchdown step saves roughly 4 hours of labor per technician per day. The TG design also reduces the single largest source of field failures in modular jack installations: inconsistent punchdown force. With a punchdown tool, undertermination (conductor not fully seated in the IDC) and overtermination (IDC crushing the conductor or cutting into the copper) both occur in 2-5% of terminations, depending on technician experience. The TG cover applies calibrated force across all eight conductors simultaneously, eliminating per-conductor variance. The yellow housing follows TIA-606-C administration guidelines for security system infrastructure (cameras, access control, intercoms) or auxiliary circuits in mixed-use IDFs, allowing installers to visually distinguish security VLANs from data VLANs without labeling every port. The Mini-Com modular design means these jacks install in the same patch panels, faceplates, and consolidation points as Panduit's full line of copper, fiber, and A/V inserts, so you're not locked into a single media type when specifying wall plates or IDF panels. Each jack is UL 2043 plenum rated and RoHS compliant, meeting the two most common deal-breakers in commercial and government specs.

This module is individually serialized and 100% factory tested, which matters in two scenarios: warranty claims and compliance audits. If a jack fails in the field, the serial number ties it back to the production lot, allowing Panduit to identify whether the failure is isolated or part of a batch defect. In government or healthcare projects requiring traceability per TIA-606-C or NFPA 70, the serial number provides chain-of-custody documentation from manufacturing through installation testing. The CJUD6X88TGYL is rated for 2,500 connection cycles under PoE++ (IEEE 802.3bt Type 4) loads up to 100W, which is significant for IP camera and access control deployments where devices are frequently swapped during commissioning or firmware recovery. Standard commercial RJ45 jacks are tested to 750 cycles; this module exceeds that by more than 3×, reducing the likelihood of contact wearout in high-change-rate environments like test labs or demo rooms. If you're installing Cat 6A infrastructure in datacenters, security control rooms, or high-density enterprise IDFs where cable management space is constrained and port churn is frequent, the CJUD6X88TGYL delivers the bend-radius relief and termination consistency needed to maintain 10GBASE-T performance over the 15-20 year lifespan of the structured cabling system.
