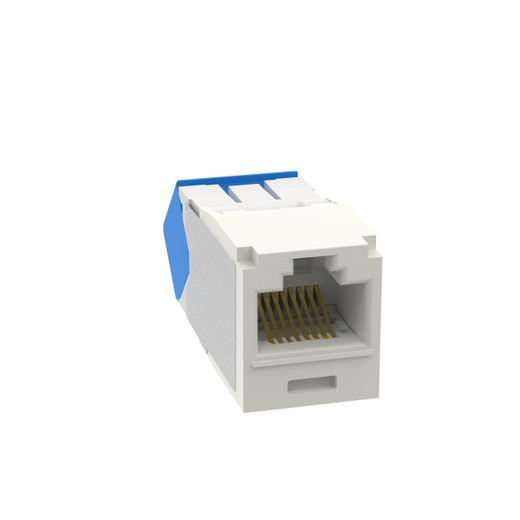

Panduit CJUD6X88TGIW Cat6A UP Down 45DEGREE Wirecap Jack EA
Overview
The Panduit CJUD6X88TGIW is a Cat6A UTP RJ45 jack module designed for terminating 4-pair, 22-26 AWG twisted-pair cables. Its 45-degree up/down angle is specifically engineered to facilitate cable routing into jacks within confined spaces, such as behind wall plates or within patch panels where traditional straight-in terminations are difficult. This module is part of the Pan-Nettie™ series, ensuring consistent performance and compatibility within Panduit's structured cabling ecosystem. Each module is factory tested to exceed industry performance requirements.
Compatibility
This CJUD6X88TGIW module is compatible with all Mini-Com™ faceplates, patch panels, and modular boxes. It is designed to terminate 4-pair, 22-26 AWG twisted-pair copper cables. The TG-style termination method eliminates the need for a separate termination tool, simplifying installation for integrators working with standard Panduit infrastructure.
Installation Notes
The TG-style termination on this module allows for direct termination of cable pairs without specialized tools. The module is designed to exceed ANSI/TIA-568.2-D and ISO 11801 component and channel requirements for its respective category. It supports 2500 connection cycles and is compatible with IEEE 802.3af, 802.3at, and 802.3bt (Types 3 and 4) Power over Ethernet standards, indicating its suitability for powering network devices. It is UL 1863 and UL 2043 approved.
